Description
When you need to transition from close range engagement to mid-range precision shots without putting extra weight on your rifle, the Sightmark XTM-3 Magnifier is the right tool for you. Sightmark offers the lightest, most compact magnifier in the market today.
Weighing only 8.1oz, this 3-inch long magnifier has an 18mm objective lens and provides 3x magnification to a wide variety of rifle-mounted red dot sights.

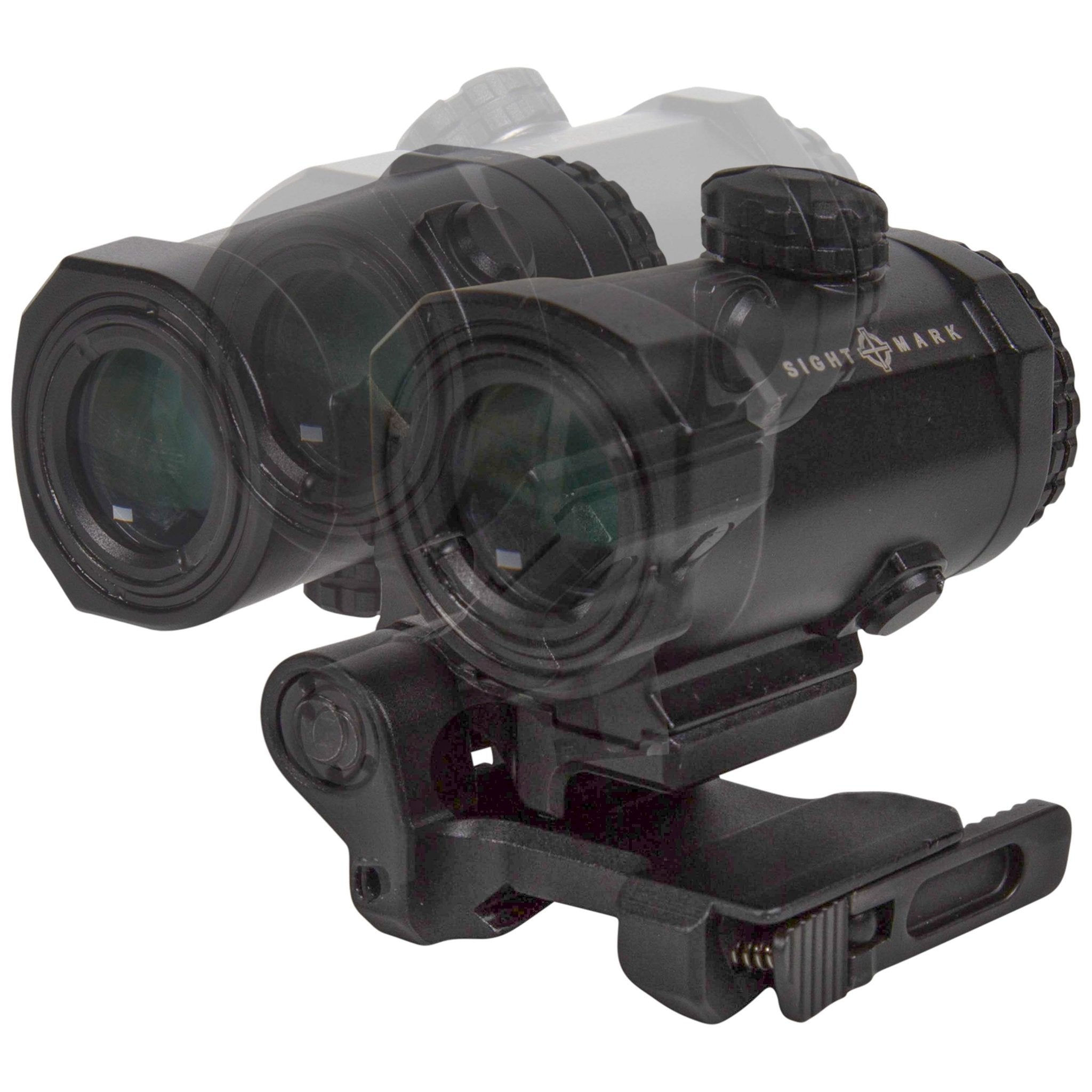

Outfitted with a no-nonsense flip-to-side mechanism as well as a simple locking quick detach mount, the XTM-3 is designed with practicality and ergonomics in mind. Constructed with shockproof 6061 aluminum housing with an IPX7 waterproof rating and a nitrogen-filled chamber to eliminate fog, the XTM-3 Magnifier is a quality magnifier that’s built to last.
Features
Included
- Manual
- LDQ flip-to-side mount
Specifications
| Magnification | 3x |
| Resolution | 10 |
| Objective Lens Diameter (mm) | 18 |
| Eyepiece Diameter (mm) | 30 |
| Exit pupil diameter (mm) | 5.6 |
| Angular Field of View | 6.8 |
| Field of view (m @100m) | 11.88 |
| Eye relief (in/mm) | 2.32 / 59.0 |
| Diopter Adjustment | +2 to -2 |
| Maximum caliber | .338 |
| Dimensions (mm) | 69 x 55 x 68 |
| Weight | 230g |
| Waterproof Rating | IPX7 (1m for 1 hr) |
| Shockproof | Yes |
|
Fog proof |
Yes |
| Body material | 6061 Aluminum |
| Lens Coating | FMC |
| Mount Type | Flip-to-Side |
| Operating Temperature (°F/°C) | -4 to 140 / -20 to 60 |
