Description

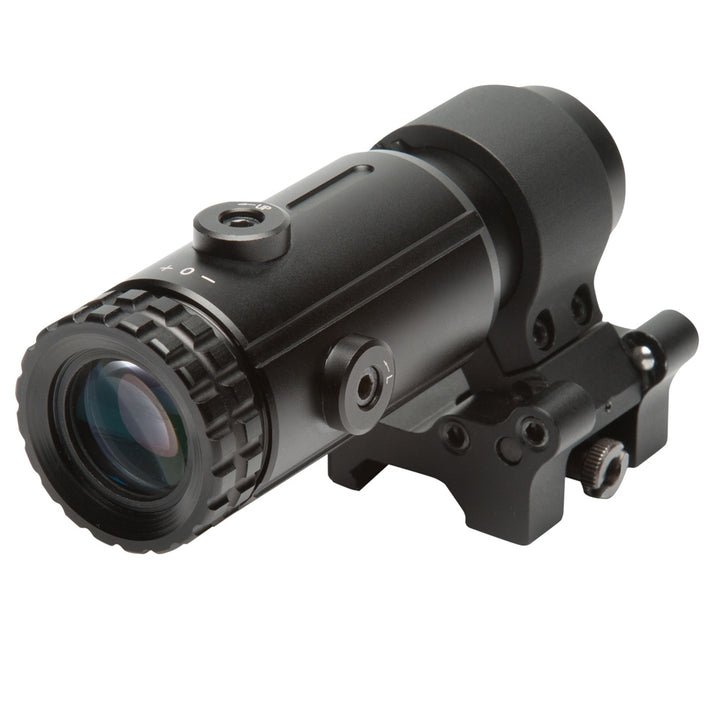

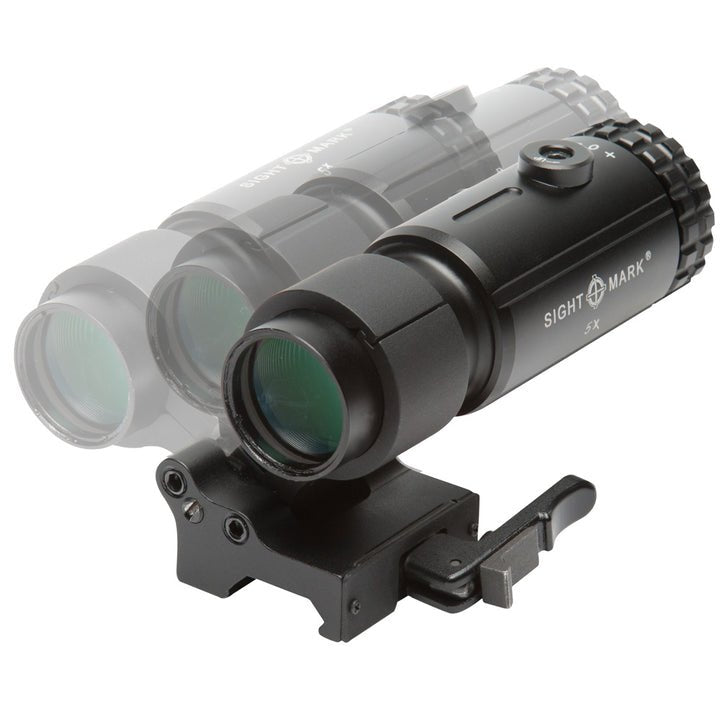

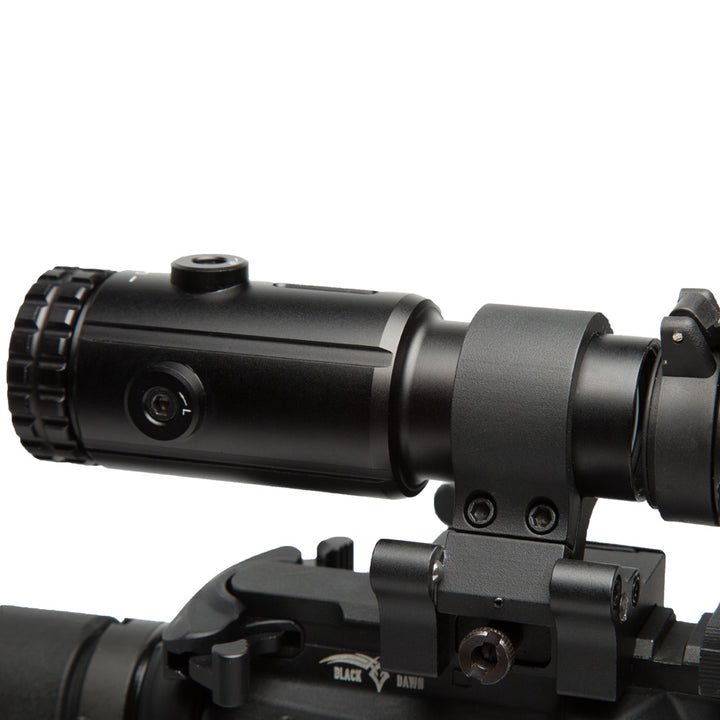

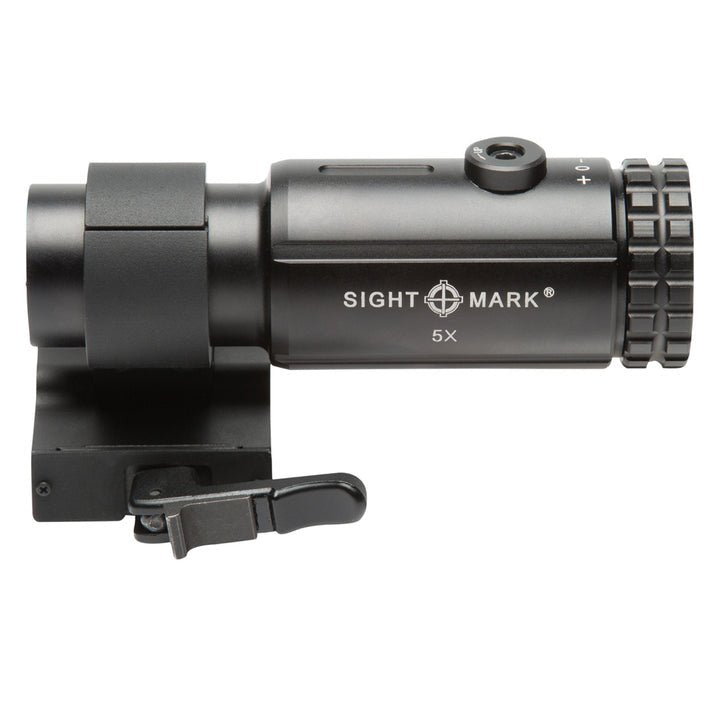

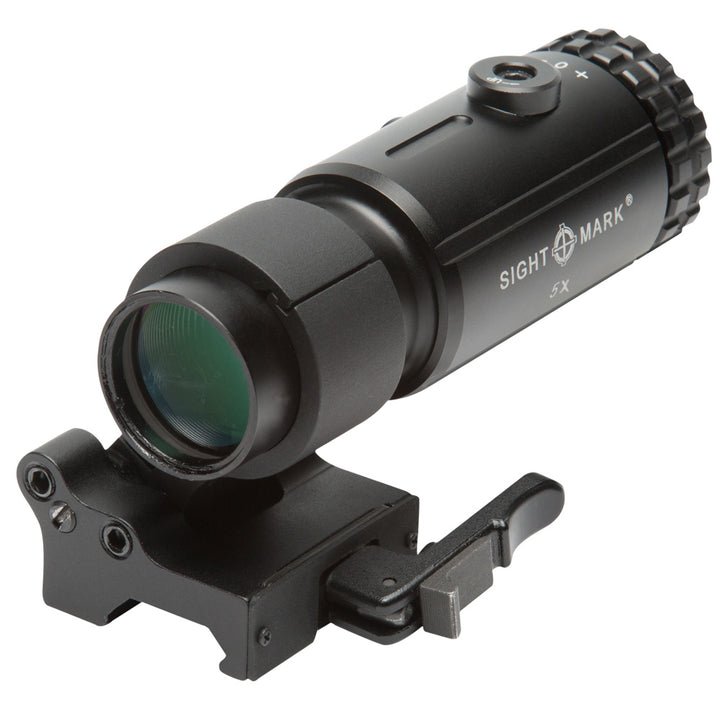

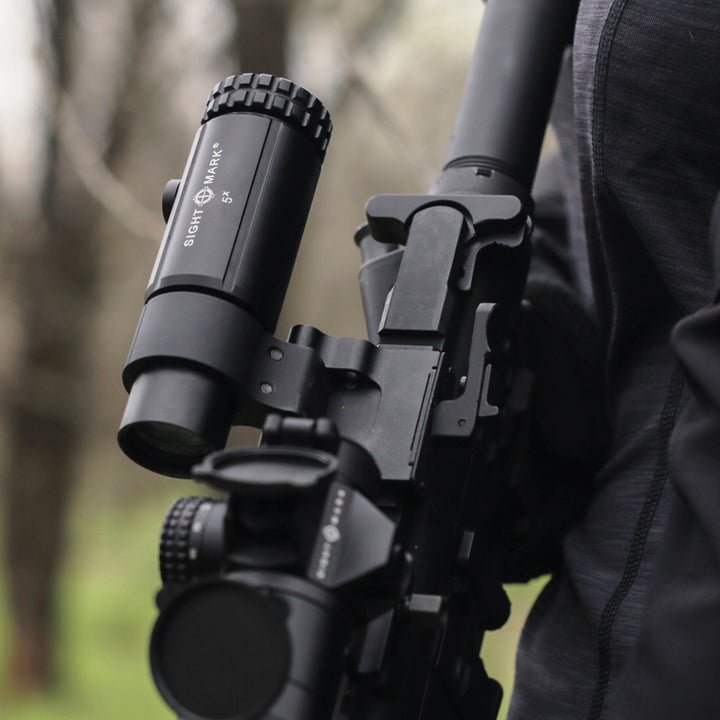

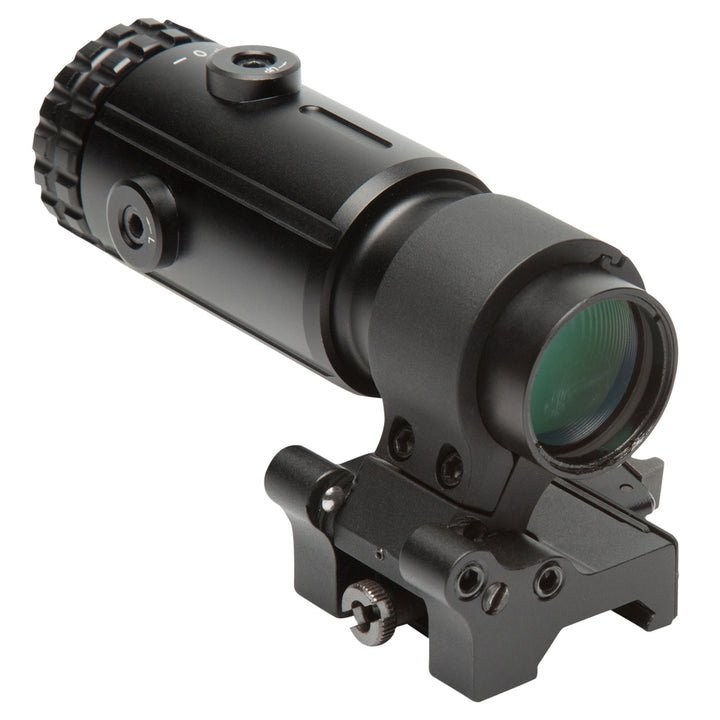

Built for shooting versatility, the Sightmark T-5 is a magnifier that mounts behind a reflex sight or red dot and provides an absolute co-witness. Instantly change the magnification of your close-range optic from 1x to 5x by using the T-5’s flip-to-side mount. The magnifier’s streamlined, low drag design prevents it from snagging on clothing and equipment and makes the T-5 .7” shorter than the magnifier it’s replacing. Ideal for stretching your AR engagements out to 200 yards, an included LQD mount allows for rapid attaching/detaching in intense shooting situations. The T-5’s aluminum construction is shockproof up to .308 caliber rifles and provides IP55 water resistant protection. Brightness and resolution are improved from fully multi-coated optics and external windage and elevation adjustments help shooters align the reticle of their red dot/reflex sight to the center of the magnifier’s point of view.
Included in Package
- Flip to side LQD mount
- Adjustment tools
- Manual
Features

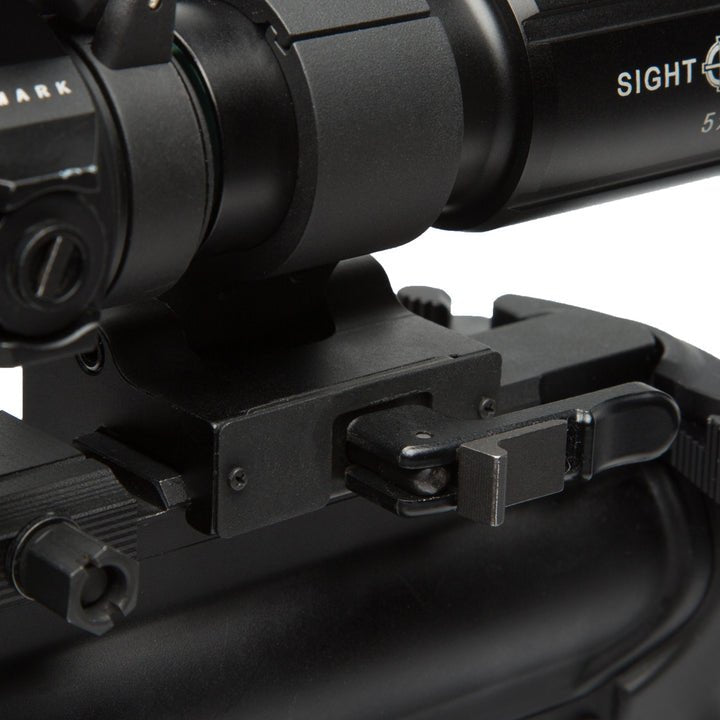

- Locking, quick detach mount for quick and easy removal
- External windage/elevation adjustment for reticle alignment
- Absolute co-witness
- Fully multi-coated, scratch resistant
- 5x magnification increases engagement to 200 yards
- EOTech® and Aimpoint® compatible
Specifications
| Magnification | 5x |
|---|---|
| Objective Lens | 23 mm |
| Diameter, Eyepiece | 32 mm |
| Diameter, Exit Pupil | 4.6 mm |
| Eye relief (mm) | 57 mm |
| Field of view, m@100m | 9.8 |
| Diopter Adjustment | +3 to -3 |
| Diameter, Tube | 30 mm |
| Maximum Recoil | .308 Caliber |
| Shockproof | Yes |
| Fog Proof | No |
| IP Rating (waterproof) | IP55 - water resistant |
| Finish/Color | Matte black |
| Body Material | Aluminum |
| Lens Coating | Full Multi-coated |
| Mount Type | Picatinny |
| Operating temperature, C | -30 to 71 C |
| Length (mm) | 120 mm |
| Width (mm) | 66.2 mm |
| Height (mm) | 42.5 mm |
