Description

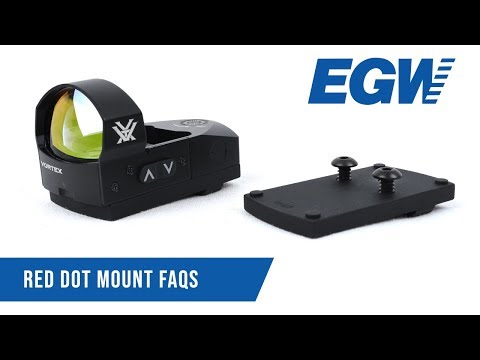

Universal red dot sight mount for Vortex Venom & Viper/Burris Fastfire red dot sights compatible with a wide range of shotguns and rifles.
Mounting hardware included: 6-48 X .313", 8-40 X .313", 8-40 X .335" (overall lengths).
This mount has a bottom radius of .670". There should be a slight gap at the top of the radius between the receiver and the mount when mounted.
The four spreads on this mount measure: .500"-.505", .600", .860" & 1.4".
Compatibility
Shotguns:
- Benelli Auto / Super Black Eagle / Vinchi, M2 (Will Work in the Front Set Only, 8-40 Screws)
- Benelli Supernova (Will Work in the Front Set Only, 8-40 AND Longer Screws)
- Browning A-Bolt 12 Gauge
- Franchi Affinity

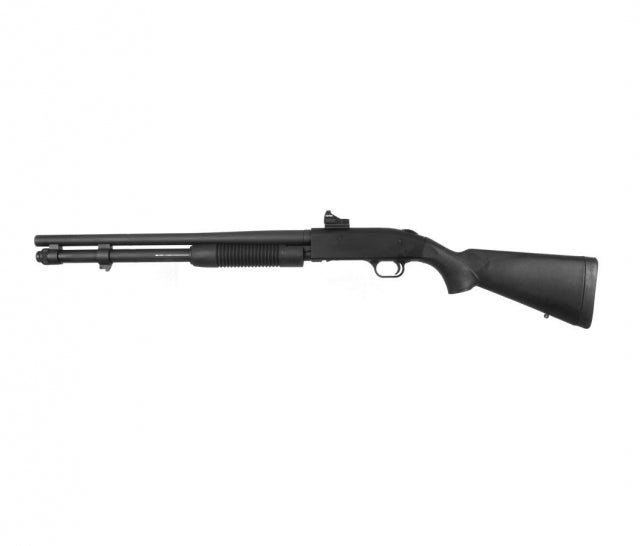

- Mossberg 500, 590, 835, 930, 935 Pre '97
- Mossberg 500, 590, 835, 930, 935 Late (after '97) (Requires 8-40 and Longer Screws)
- Remington 870
- Remington 1100
- Savage 210
- Savage 212
- Savage 220
- Stoeger M3000 / Stoeger M3500 (Will Work in the Front Set Only, 8-40 Screws)
- Winchester 1300
- Winchester SXP
Rifles:
- Remington 700, 722, 40x
- Remington 783
- Remington 710/770
- Remington xp 100
- Remington 4, 6, 7400, 7615 (Front Set Only, 8-40 Screws)
- Savage Arms Centerfire Models

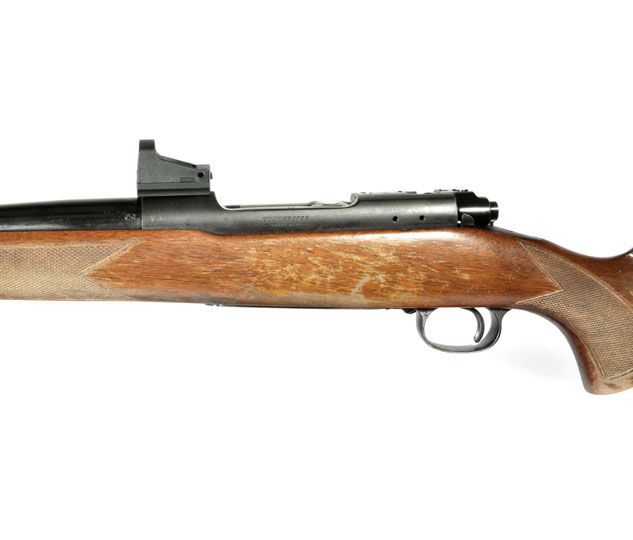

- Winchester 70
Red dot sights:
- Vortex Viper/Venom
- Burris FastFire
- Crimson Trace CTS-1200
- CTS-1300
- Docter
- ADE RD3-001 / RD3-02 / RD3-009*
- UTG Reflex Micro Dot
- Sightmark Mini Shot Red Dots
- Sightmark Core Shot Red Dots
*All ADE mounts require 6-32 x 3/8" screws.
EGW red dot mounts are meant to be installed from the left to the right (with the muzzle facing forward). The dovetail has a progressive taper to allow for easier install.
Specifications
| Material | 7075 Aluminum |
| Coating | Matte Black Hardcoat |
| Overall Length | 1.811" |
| Overall Width | .99" |
| Overall Height | .365" |
| Radius | .670" |
| Mounting Hardware | (2) 6-32 Button Head Screws, (2) 6-32 Flat Head Screws, (2) 6-48 Hex Head Screws |
Evolution Gun Works (EGW)
