1911 LPA Cut Dovetail Sight Mount For DeltaPoint Pro / Shield RMS

Dovetail red dot sight mount for LPA cut 1911. Compatible with red dot sights featuring the DeltaPoint Pro and Shield RMS/RMSc footprint (fits Bushnell RXS-250/100, Shield RMS/RMSc/SMS & many more). The rear pins will need to be removed on the Holosun 4070K/507K.

Compatibility (including but not limited to)

• Sig Sauer 1911 Stainless Super Target*
• Sig Sauer 1911 Match Elite*
• Sig Sauer 1911 Target Full Size*
• Sig Sauer 1911 Max Full Size*
• STI with adjustable rear sights
• STI Trojan
• STI DVC 3 Gun
• STI DVC Limited
• STI DVC Classic
• Springfield Range Officer
• Springfield Range Officer Elite Target
• Springfield Loaded Target
• Para Elite LS Hunter (with above mentioned modification)
• Remington R1 10mm Hunter (with above mentioned modification)
• Rock Island TCM Rock Target FS HC Combo 22TCM / 9MM
• Rock Island Pro Match ULtra 5” - 45 ACP
• Rock Island Pro Match Tac Ultra 6” - 45 ACP
• Rock Island Pro Match Ultra HC - 40S&W
• Rock Island Pro Match Ultra 6” - 10MM
• Rock Island Pro Match ULtra 6” HC - 10MM
• Iver Johnson Eagle XL-SS10
• Iver Johnson Eagle SS-10
• Iver Johnson Eagle O.D. Green
• Iver Johnson Eagle Coyote Tan
• Iver Johnson Eagle XL-10 Ported
• Iver Johnson Eagle XL-10
• Iver Johnson Eagle XL-45 Ported
• Iver Johnson Eagle XL-45acp
• Iver Johnson Eagle LR

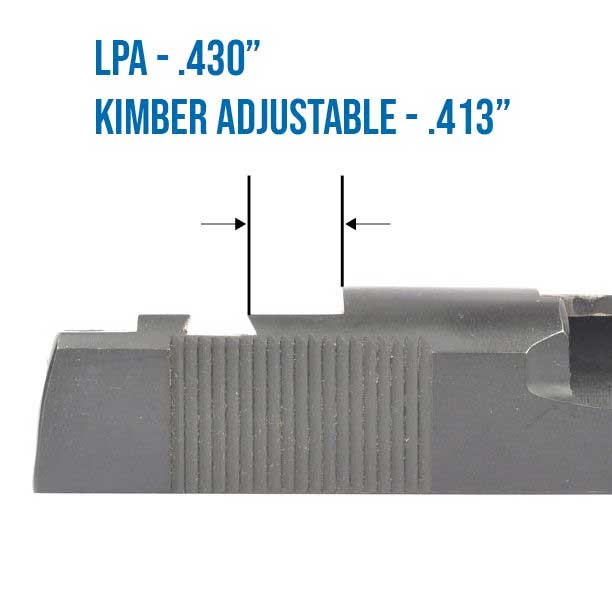

* We have found that some Sig Sauer 1911's with adjustable rear sights use a Kimber Adjustable style rear sight cut. Please measure the distance from the top of the front of the dovetail to the face of the sight cut in your slide. If this measures .43" you will need this (LPA) mount. If it measures .415" you will need the Kimber Adjustable version.

Specifications

• Material: 7075 Aluminum
• Coating: Matte Black Hardcoat
• Overall Length: 1.604"
• Overall Width: .99"
• Dovetail Width: .375"
• Mounting Hardware: (2) 6-32 Button Head Screws, (1) 6-32 X 3/16 Set Screw
• Red Dot Fitment:

• Bushnell RXS-100
• Bushnell RXS-250
• Crimson Trace CTS-1500
• Holosun 407K*
• Holosun 507K*
• Jpoint
• Leupold DeltaPoint Pro
• Optima
• Redfield Accelerator
• Shield RMS
• Shield RMSc
• Shield SMS
• Sig Romeo Zero

* With modification, the rear two locator pins on the plate must be filed off in order to allow the 407K/507K to fit.

EGW red dot mounts  are meant to be installed from the left to the right (with the muzzle facing forward). The dovetail has a progressive taper to allow for easier install.
