Description
Wraith Mini Thermal now available for pre-order. Deliveries start min-June.

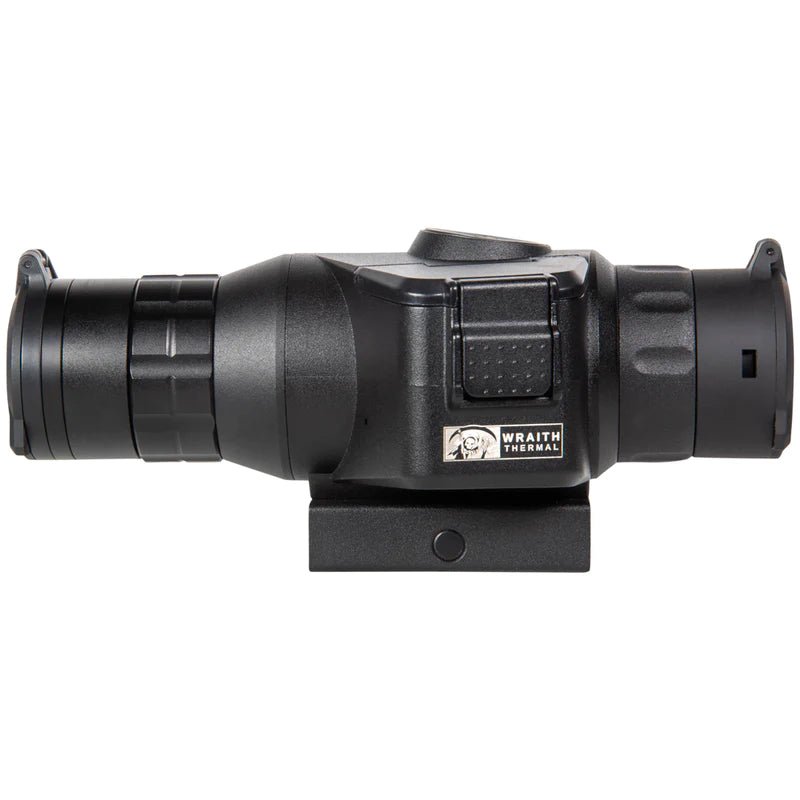

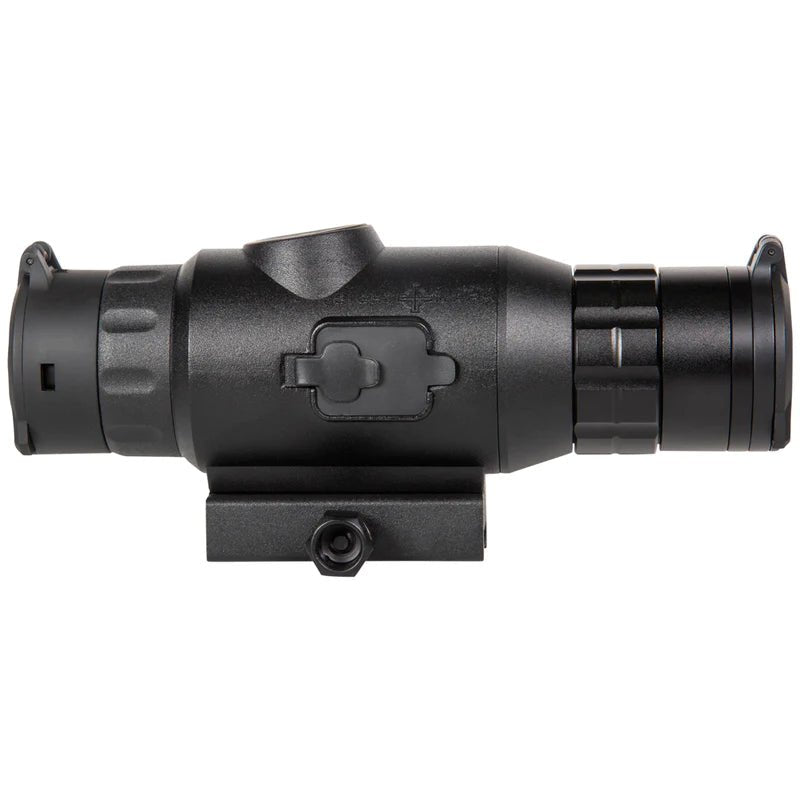

The Wraith Mini Thermal offers the same peerless quality of Sightmark’s Wraith Mini digital night vision models on a digital thermal riflescope. The new Wraith Mini Thermal comes equipped with a powerful 384x288 sensor resolution which enhances imaging algorithms to create a crisp picture, a 1024x768 OLED display, a built-in video recorder with sound to capture the best moments of a hunt and a battery life of 3.5 hours on video mode and 4.4 hours on preview mode, the Wraith Mini Thermal proves to be a durable thermal scope with enhanced imaging capabilities and a long battery life for the field.
With its 1350 meters detection range, 2x optical magnification and 1-8x digital zoom, the Wraith Mini Thermal is optimized for medium range engagements. Far from delicate, its durable aluminum housing and ability to resist temperatures from -20°C to 50°C as well as its USB charging capability make it great for rugged hunting environments.

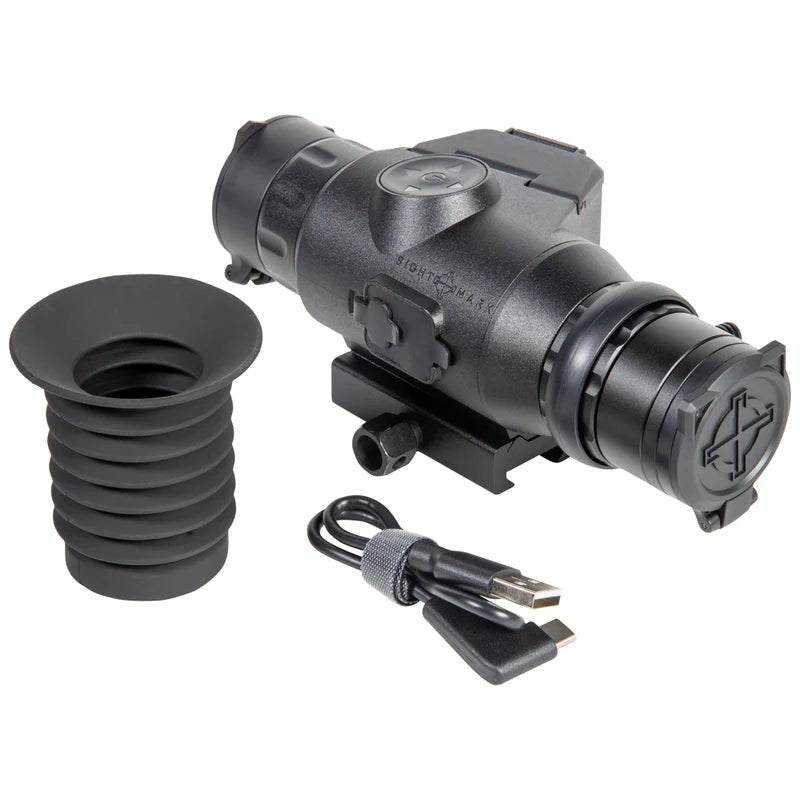

Included in Package
- Flip-up Caps
- Removable Throw Lever
- Rubber Eyecup
- 2x CR123A Batteries
- USB Cable
Features
- 384x288 Thermal Resolution
- Lightweight and Compact
- OLED Display, Built-in Recording w/ Sound

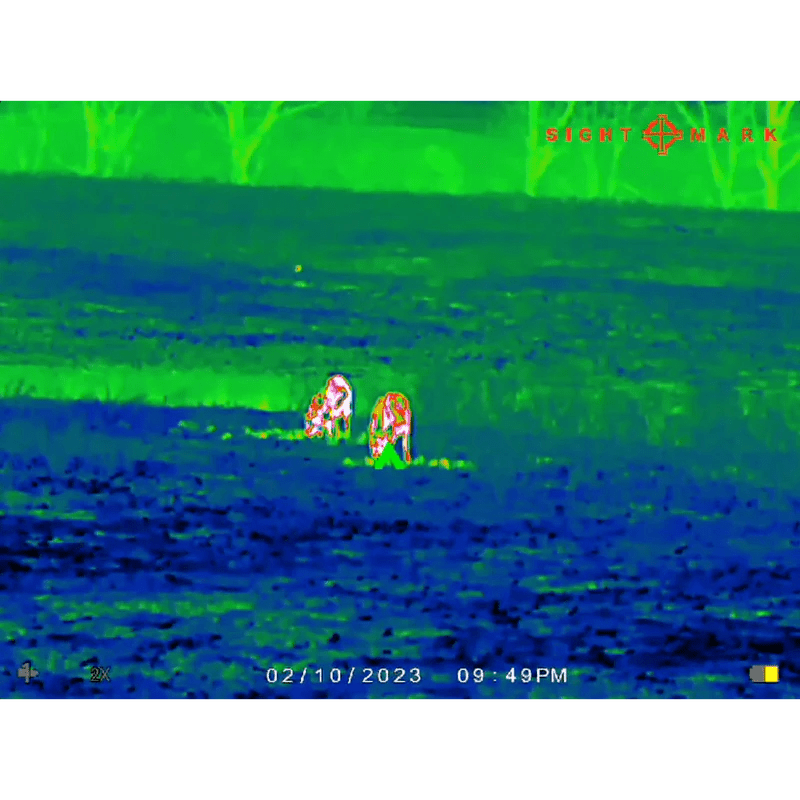

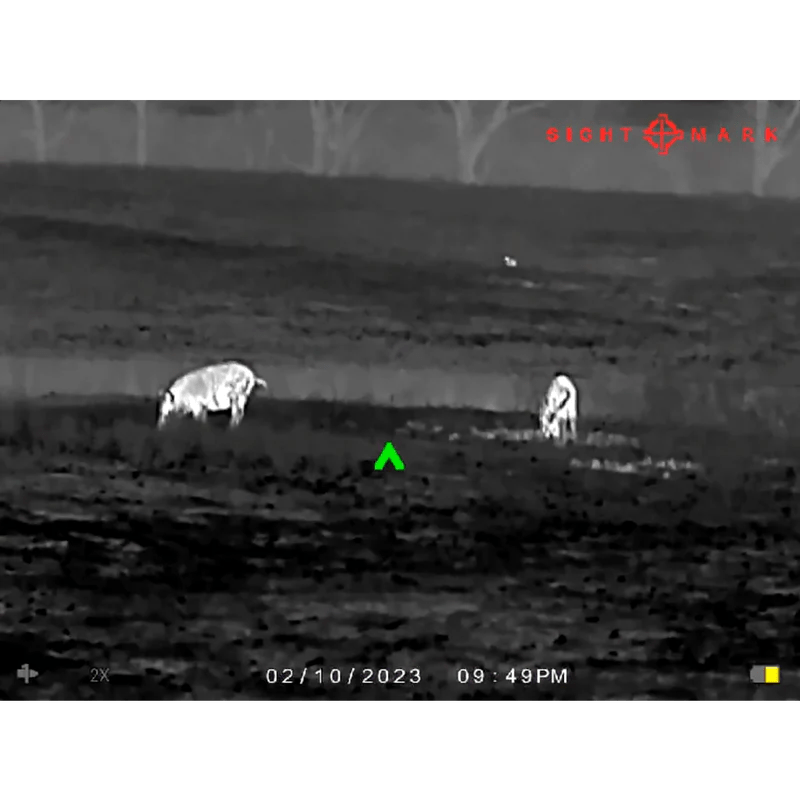

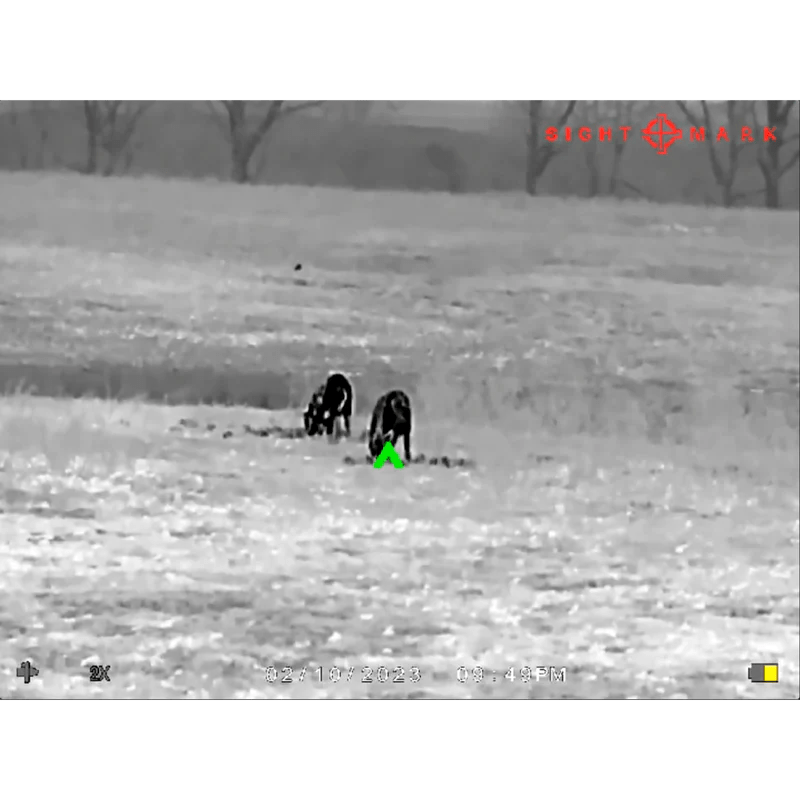

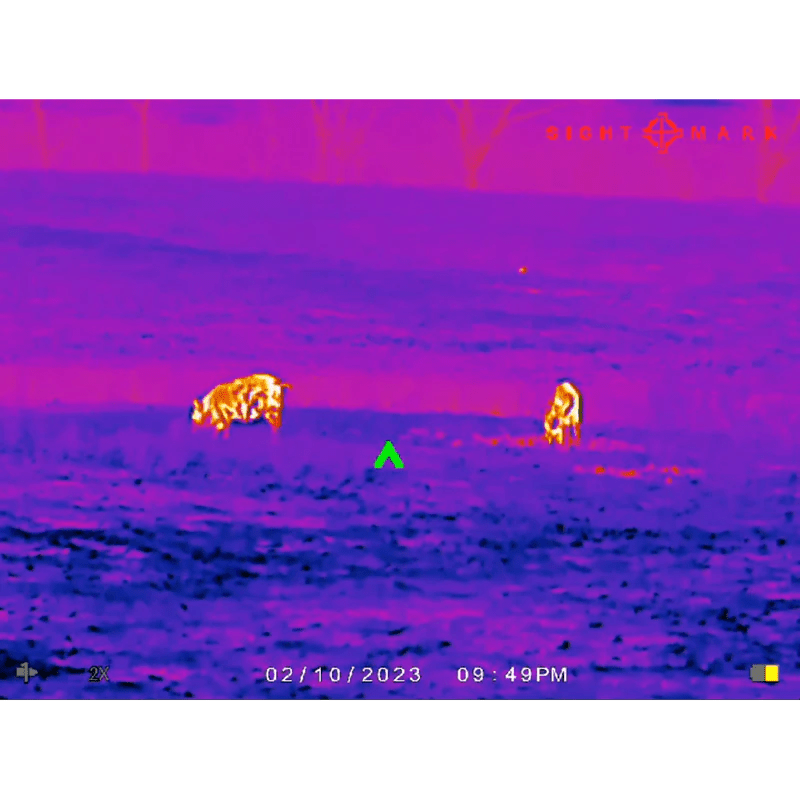

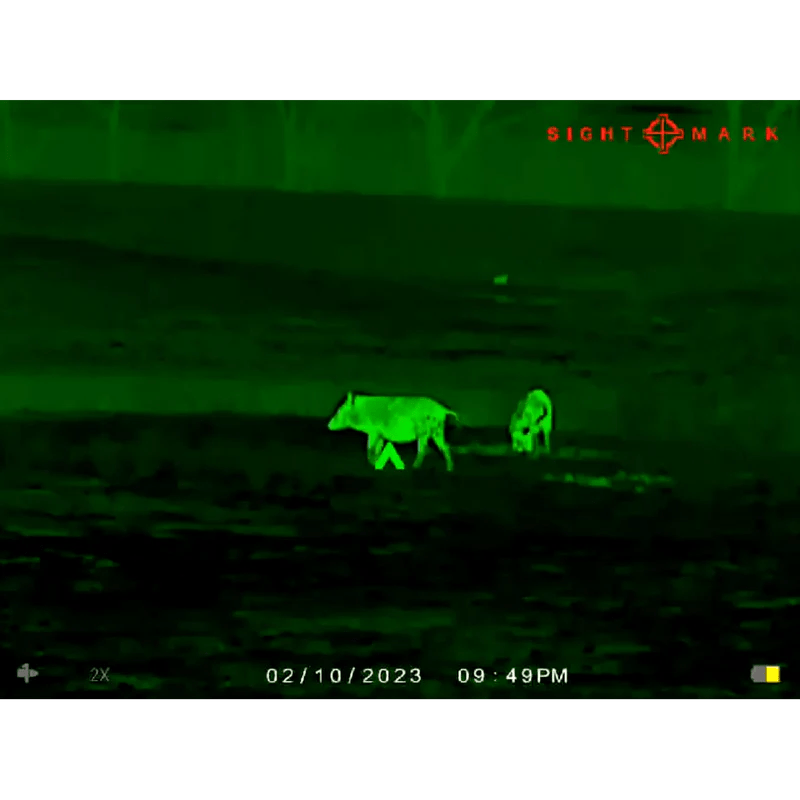

- 5 Color Palettes
- 9 Reticle Colors

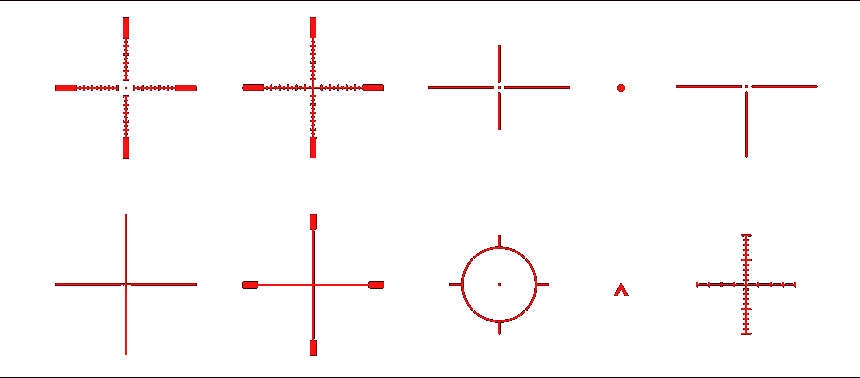

- 10 Reticles
- 5 Weapon Profiles
Specifications
| Electronic components | |
| Type of sensor | Thermal sensor |
| Sensor resolution, pixels | 384x288 |
| Display type | OLED |
| Display Resolution, pix. | 1024x768 |
| Built-In Video Recorder Availability | Yes |
| Maximum memory card supported, Gb | 256 |
| Pixel Pitch (µm) | 17 |
| Spectral Range (μm) | 8-14 |
| NEDT (50 Hz, 300 K, F/1) (mK) | 40 |
| Optical characteristics | |
| Magnification | 2-16x |
| Lens diameter, mm | 35 |
| Digital zoom | 1-8x |
| Field of View,°, horizontal | 13 |
| Range of Detection | |
| Detection Range (meters) | 1350 |
| Power Supply | |
| Power Supply, v | 6 |
| Battery type | 2x CR123A |
| Battery life | 3.5Hrs Video Mode/ 4.4Hrs Preview Mode |
| External Power Supply | 5V via microUSB |
| Physical & operational characteristics | |
| Body Material | Aluminum |

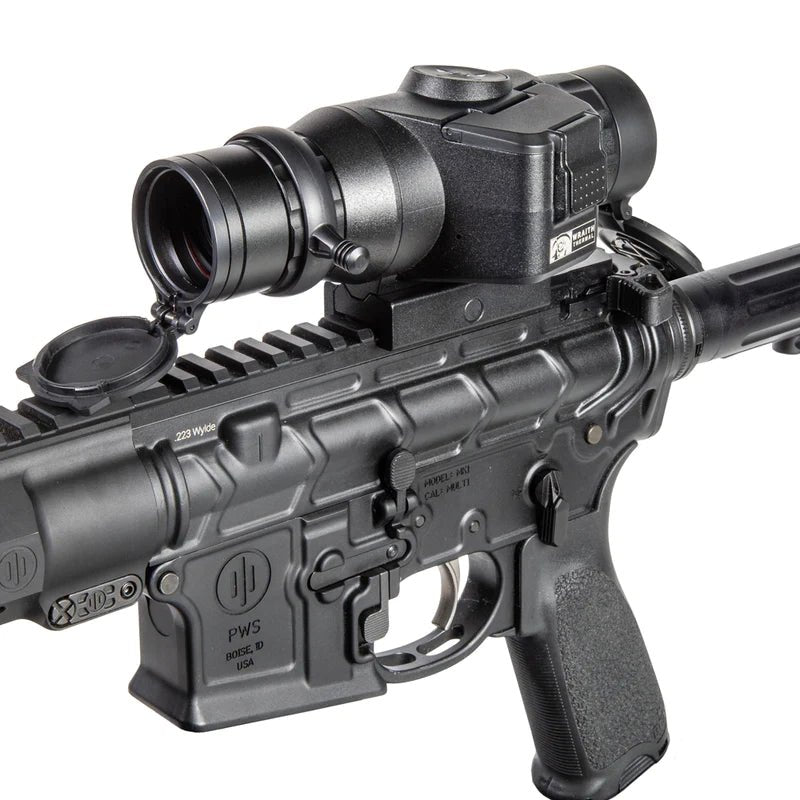

| Accessory rail mount | Picatinny |
| Operating Temp,°F / C° | -4 - 144ºF / -20C - 50ºC |
| Length, in/mm (with flip up caps) | 6.653 / 169 |
| Width, in/mm | 3.031 / 77 |
| Height, in/mm | 2.913 / 74 |
| Weight (with batteries), oz/g | 19.3 / 547 |
