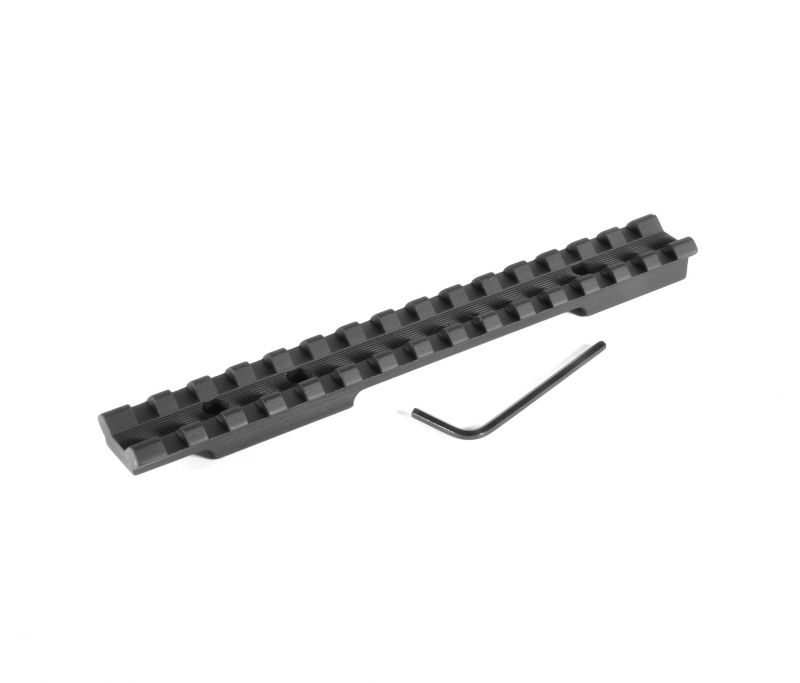

Remington 788 Picatinny Rail

EGW Remington 788 Standard Action and Long Action mounts are made specific to the guns. Please review the below caliber chart to assure that you order the correct mount:

• The middle spread is the distance between the two middle holes, center to center, on your receiver.
• The middle spread on our standard action mount is 3.00".
• The middle spread on our long action mount is 3.29".

Standard Actions Calibers:

• .222
• .223
• .22-250
• .30-30

Long Actions Calibers:

• .308
• .243
• 6mm
• 7mm-08

This mount comes standard with a bevel on both sides making it ambidextrous.

We recommend measuring the hole spacing in your receiver to confirm it matches with the dimensions we have published.

Picatinny cross-slots run the full length of the rail, which gives the shooter flexibility when mounting scope rings and other accessories. The channel in the center reduces the overall mass of the mount. Also, in many cases, it will not obstruct usage of factory iron sights. Our one-piece scope mounts are the obvious choice for hunters and tactical shooters alike.

Installation: EGW recommends 20 inch lbs of torque and a drip of blue loctite (loctite is available through our website and is sold separately).

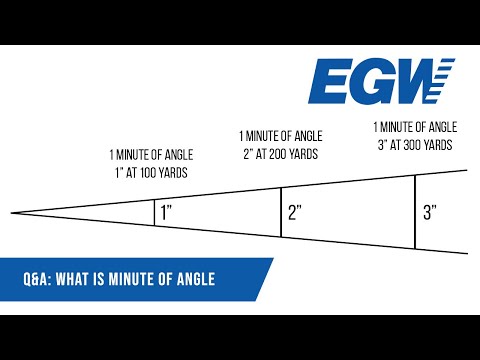

MOA Selector Recommendations

• 0 MOA - if shooting 0-500 yards
• 20 MOA - if shooting 500-1000 yards

When zeroing your rifle with a 20 MOA mount, we recommend zeroing at 200 yards.

Specifications

Rail Type: One Piece Picatinny
Machined From: Domestic 6061 T6 Extruded Aluminum
Finish: Matte Black Anodizing
Center Spread: 2.990"
Overall Length: 5.882"
Height: .4" (Top of Receiver to Top of Picatinny)
Weight: 2 oz.
Quick Disconnect Ring Compatible: No
Ambidextrous: Yes
Torque Specs: 20 in/lbs

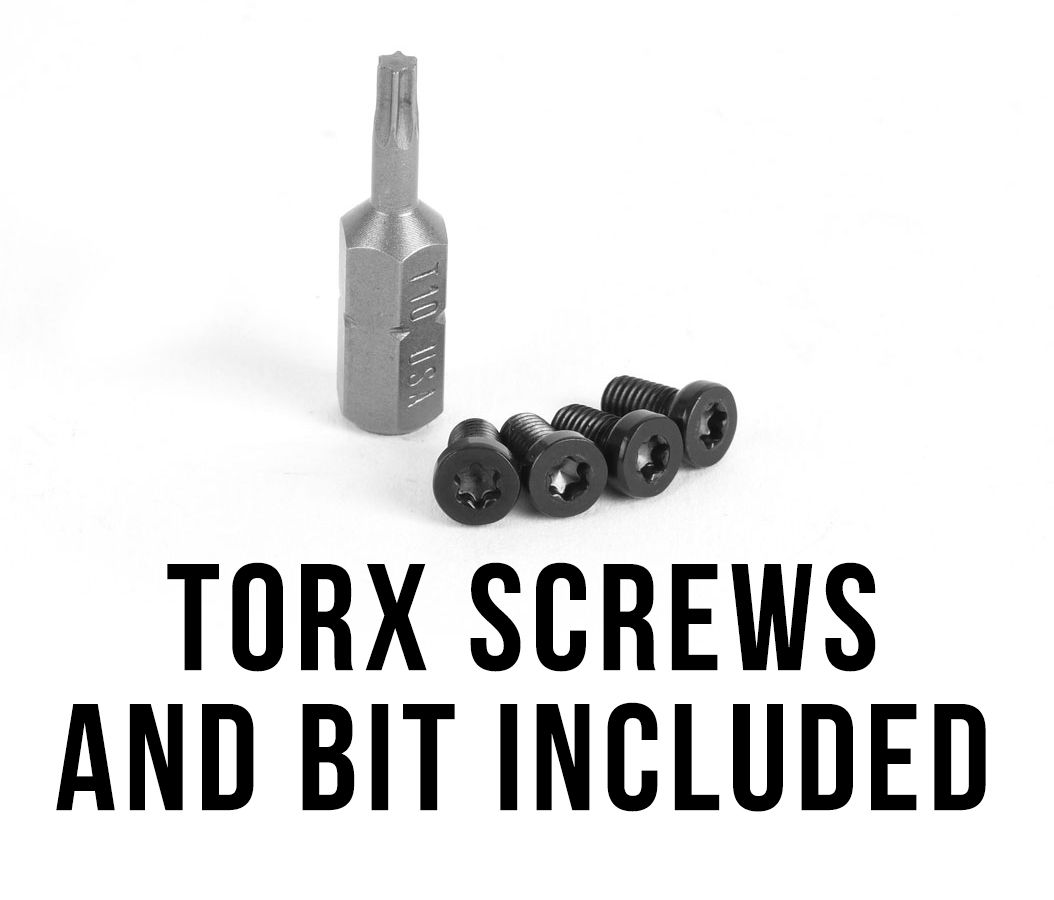

Mounting Hardware: #8-40 X 1/4 Screws and T-10 Bit Included
