1911 Bomar Dovetail Mount for Docter, Burris Fastfire, Vortex Venom/Viper

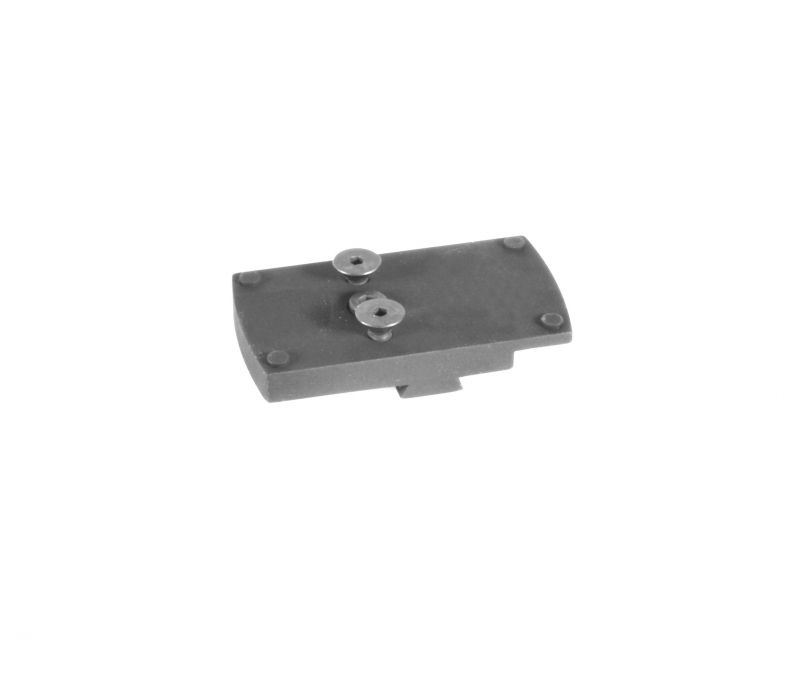

Red dot sight mount for 1911s with Bomar cut dovetails. Compatible with Bomar-style dovetail mounts for red dot sights with the Docter/Noblex footprint, such as Vortex Venom/Viper, Burris Fastfire, Sightmark Mini Shot / Core Shot and many others. Mounting hardware is included.

Compatibility

• STI Edge (either this sight or LPA)
• Les Baer 1911 (adjustable rear sights)
• Colt Gold Cup Trophy with Bomar Rear Sight Cut
• Colt Gold Cup National Match .45acp
• Colt Gold Cup National Match 9mm
• Springfield TRP Operator
• Dan Wesson Bruin (may require fitting due to the Clark cut on the top of the slide)

Compatible red dot sights (list not exclusive)

• Vortex Viper
• Vortex Venom
• Burris FastFire 2/3/4
• Docter
• ADE RD3-001
• ADE RD3-002
• ADE RD3-009
• UTG Reflex Micro Dot
• Crimson Trace CTS-1200
• Crimson Trace CTS-1300
• Sightmark Mini Shot M-Spec

Specifications

• Material: 7075 Aluminum
• Coating: Matte Black Hardcoat
• Overall Length: 1.811"
• Overall Width: .99"
• Mounting Hardware: (2) 6-32 Flat Head Screws, (1) 6-32 X 3/16 Set Screw

Installation

EGW red dot mounts are meant to be installed from the left to the right (with the muzzle facing forward). The dovetail has a progressive taper to allow for easier install.

Simply remove the rear sight on your gun and replace it with the adapter plate in order to mount your Vortex Viper/Venom, Burris FastFire, or Docter red-dot sight. You can take our mount off and replace your rear sight at any time.

• Remove the rear sight*
• Install the EGW Sight Mount in the dovetail
• Tighten set screw (if applicable)
• Place the red dot sight on the EGW Sight Mount (Tip: A small piece of paper between the red dot sight and the mount will make for easier removal and will keep Loctite off of the red dot sight.)
• Apply blue Loctite #242 threadlocker to the provided mounting screws
• Torque mounting screws to 15in/lbs
