Beretta 92 Mainspring Housing Magwell Combo

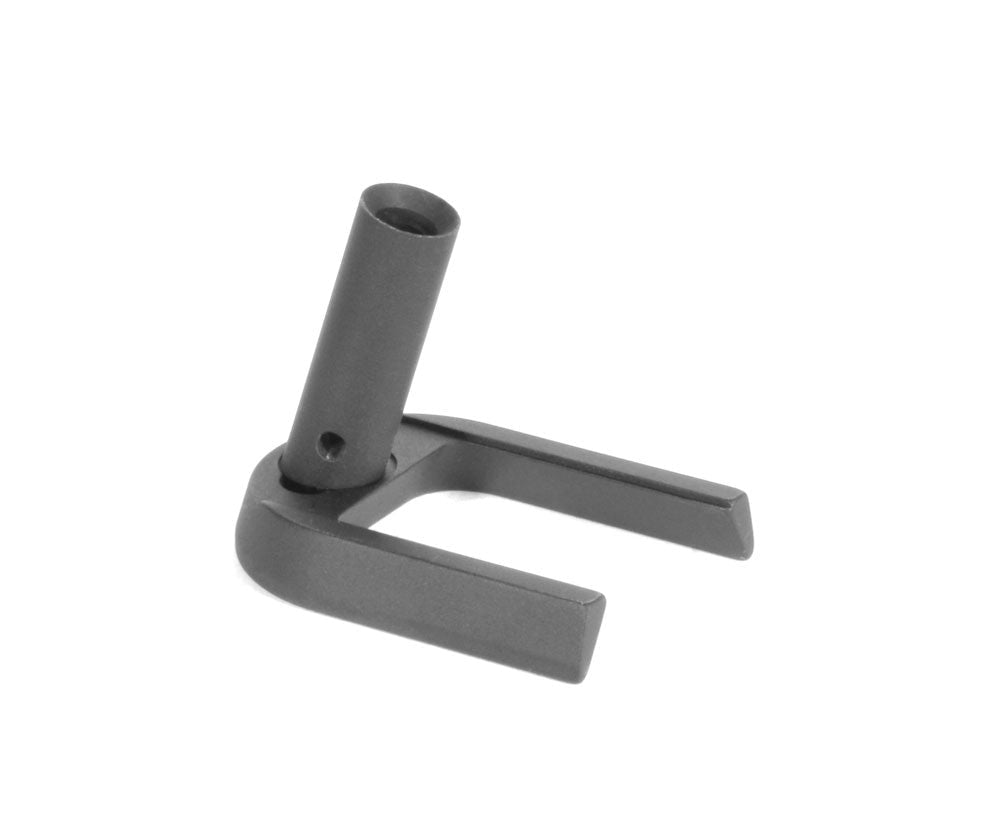

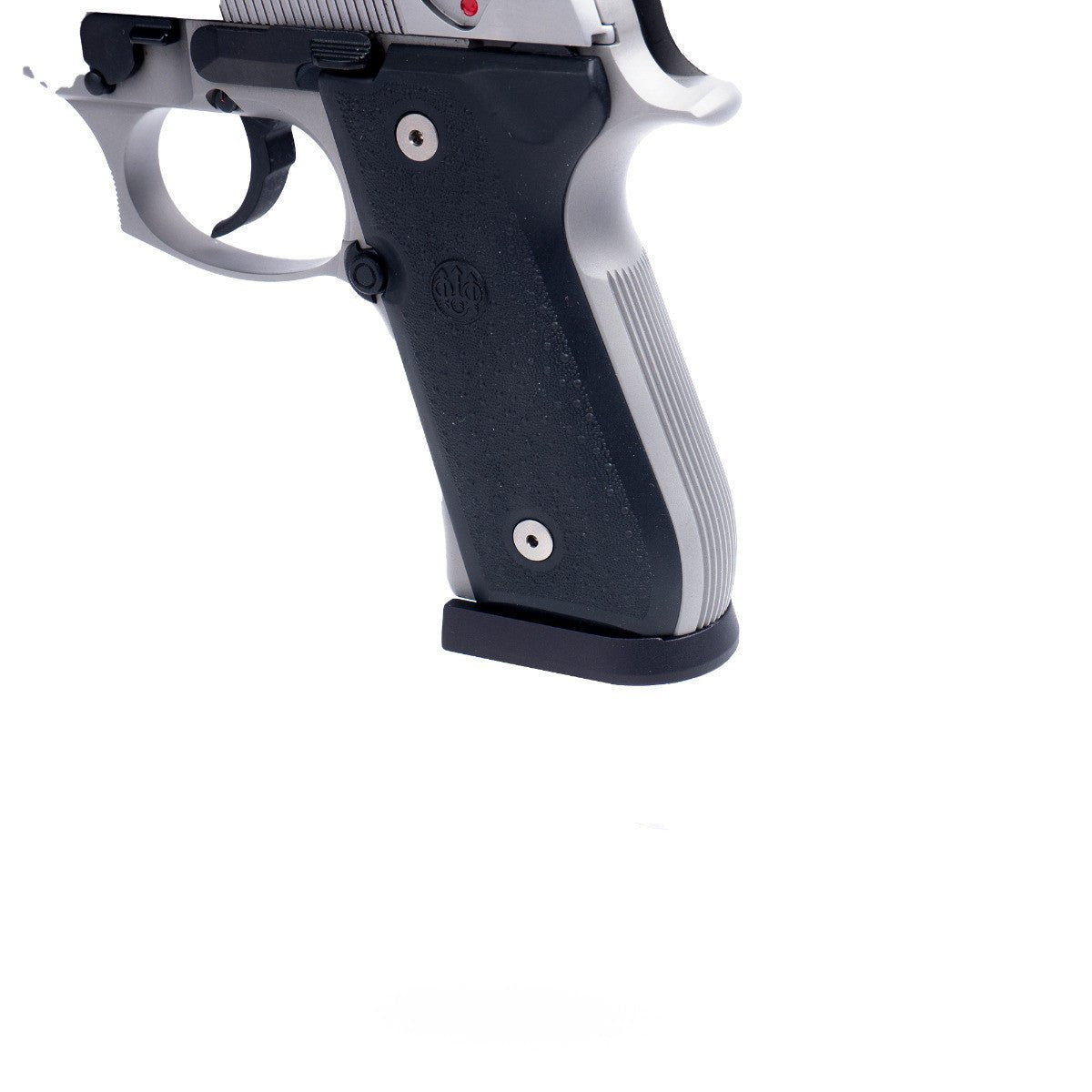

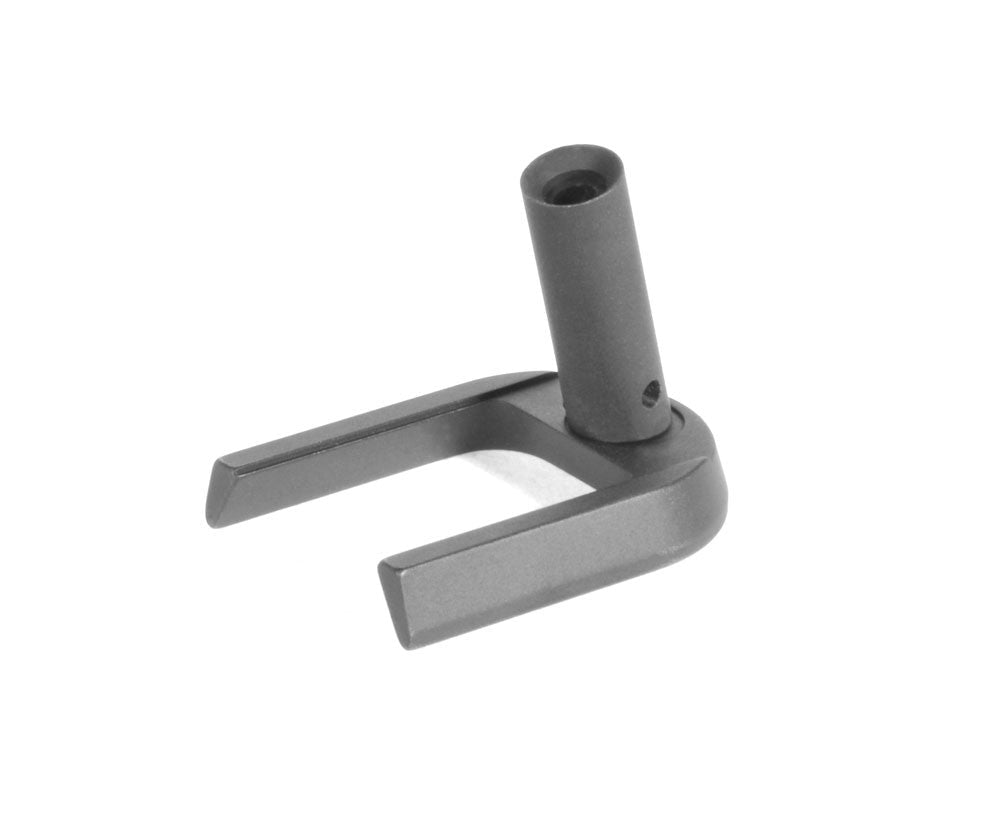

Speed up your reloads and enhance your grip. This Mainspring Housing & Magwell Combo is the ultimate upgrade for your Beretta 92, 96, or Vertex model. By integrating the magwell funnel directly with the mainspring housing, we've created a rock-solid unit that doesn't wiggle or shift during competition. The funnel guides your magazine into place, smoothing out fumbled reloads under stress, while the checkered mainspring housing improves your traction on the gun.

Installation Instructions

Before reinstalling the mainspring housing and the plug, make sure that the magwell fits over the frame and sits flat. Install the threaded mainspring housing and plug into the pistol per manufacturer’s recommendations (see the owner’s manual).

Start the included 6-32 X 5/16” screw into the threaded mainspring housing plug. Have the appropriate allen/hex wrench ready. Slide the magwell over the screw head (larger side of the hole). Keep the magwell centered over the frame as you tighten the screw. Tighten the screw finger tight.

Magazine Basepad Fitment: Due to dimensional variations on magazines, it may be necessary to remove a minimal amount of material from your magazine's basepad for the magazine to seat properly.

Technical Specifications

Material: Domestic 6061 T6 Aluminum
Finish: Matte Black Hardcoat Anodize
Compatibility: Beretta 92 / 96 / M9 AND Vertex / 92X Frames
Included Hardware: Threaded Mainspring Housing Plug & Screw
Weight: Lightweight for competition balance
