Description

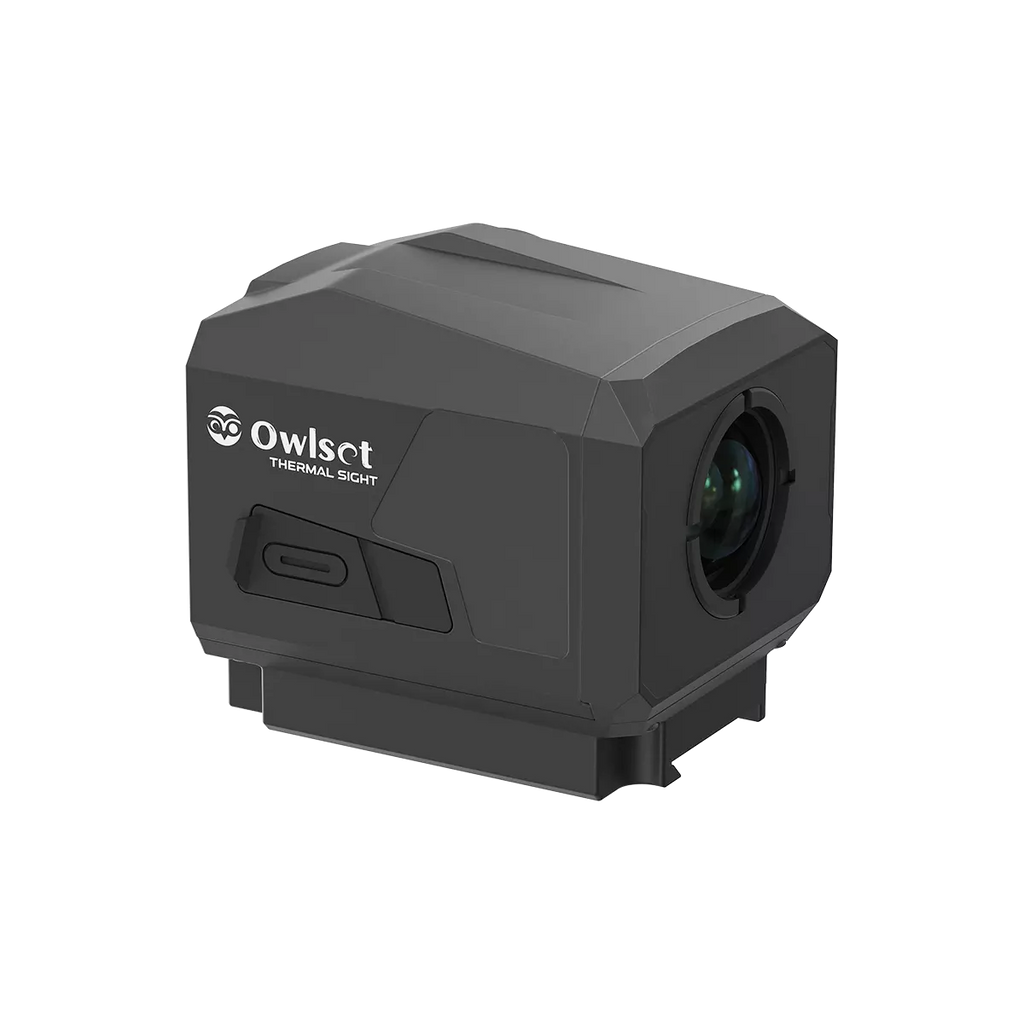

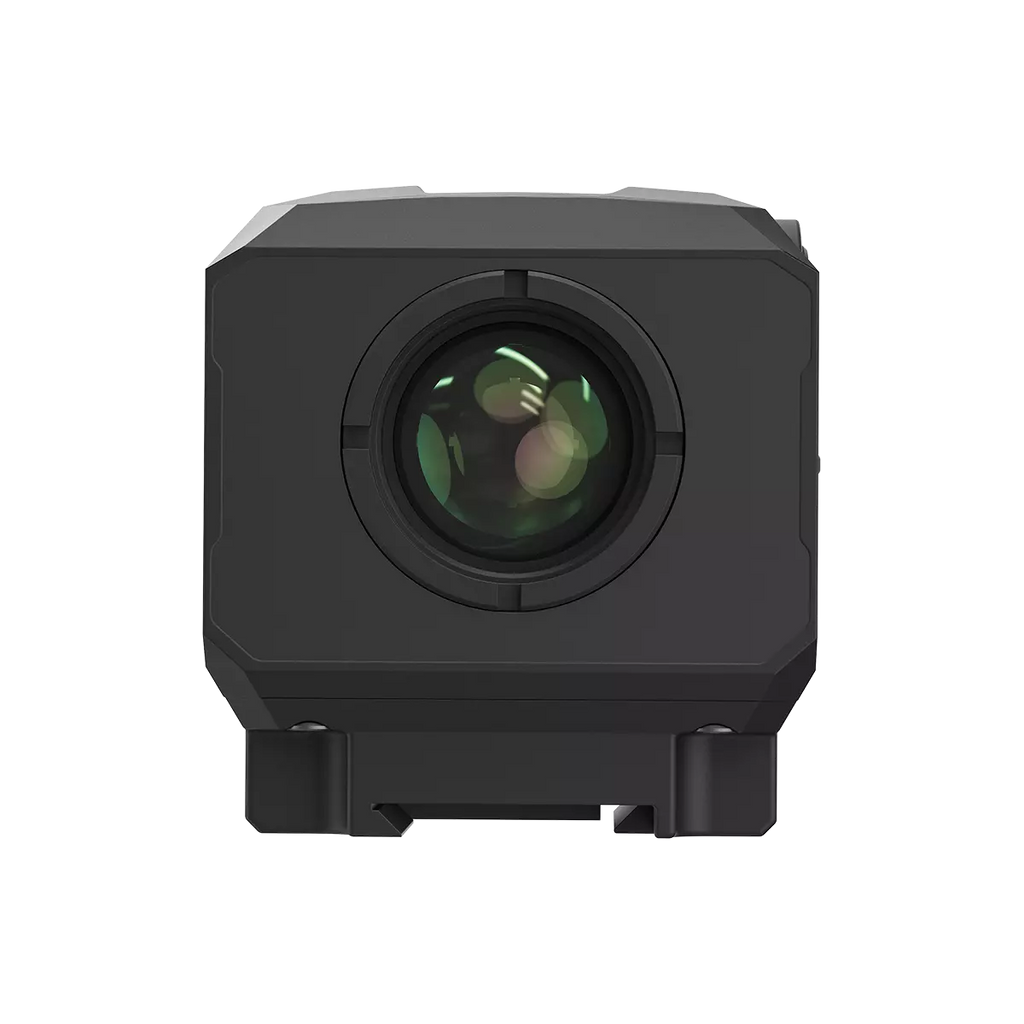

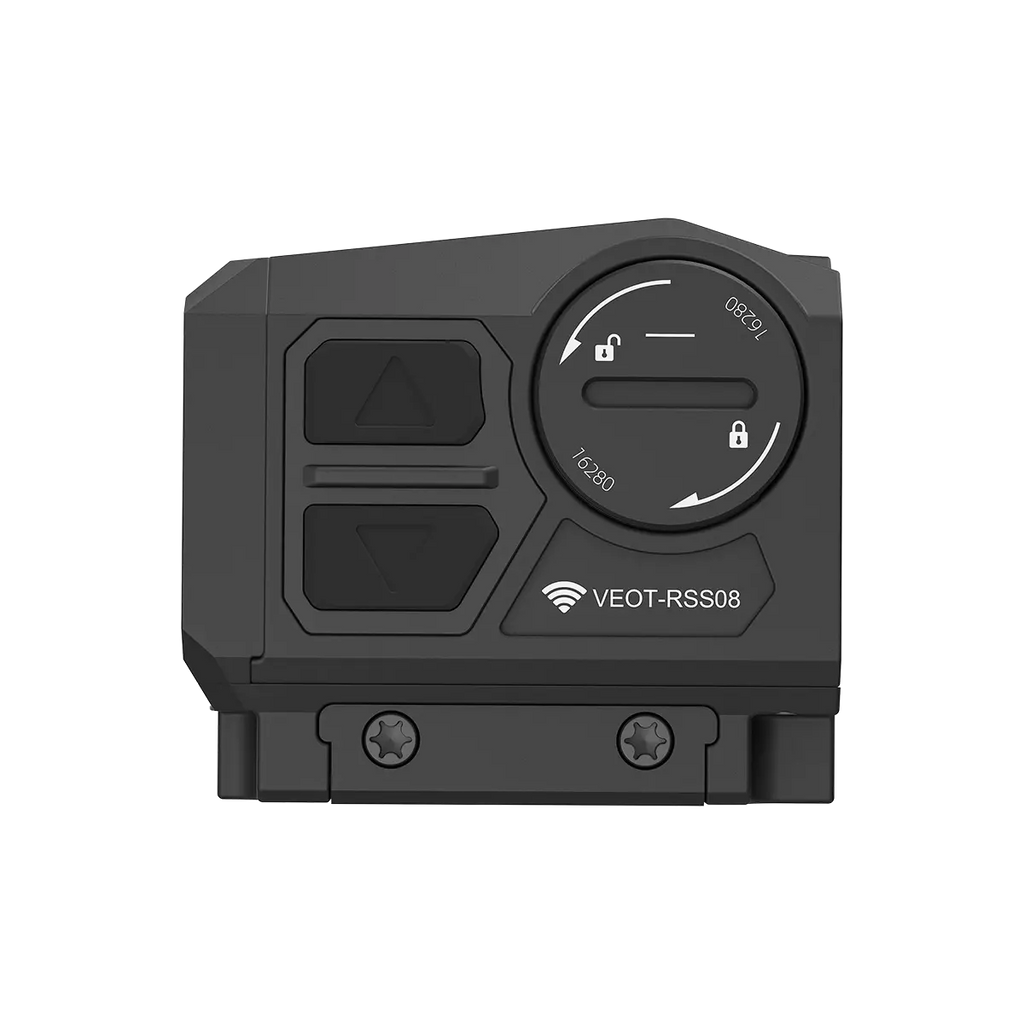

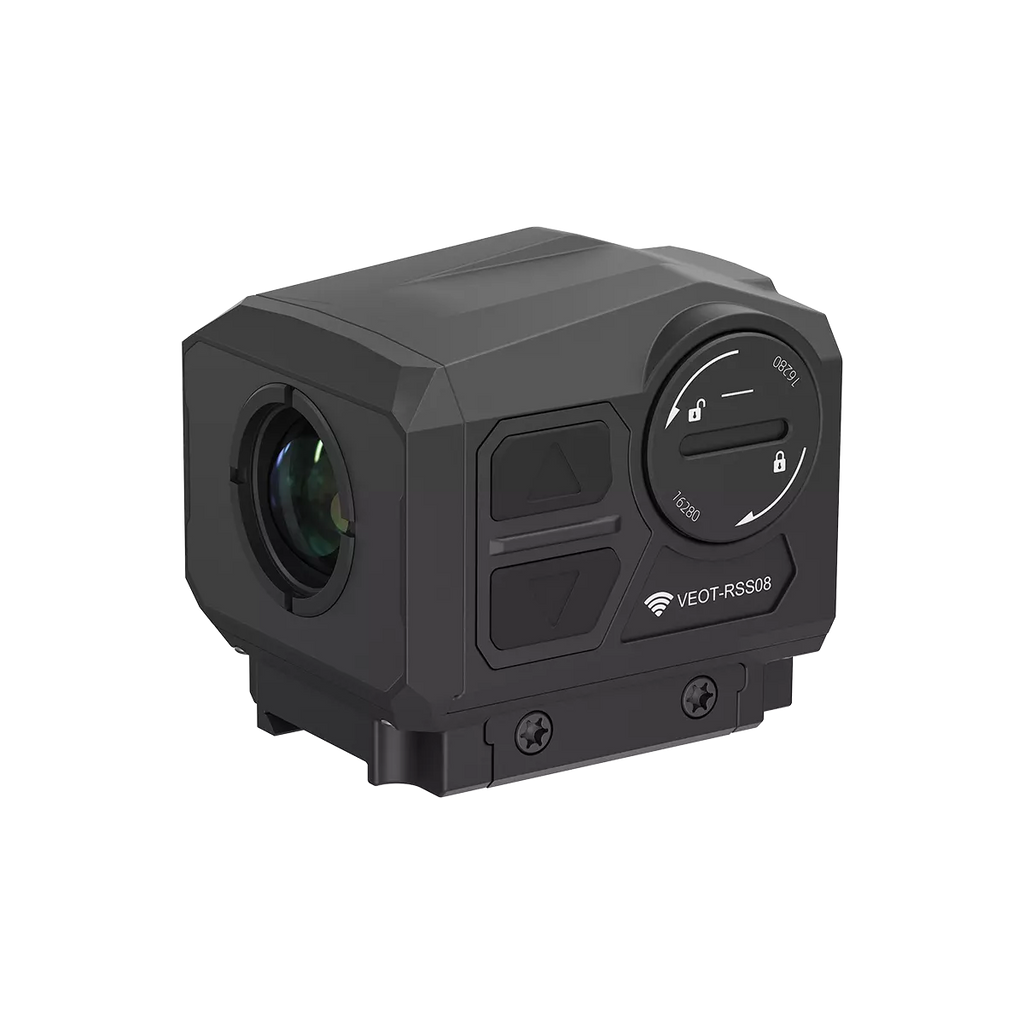

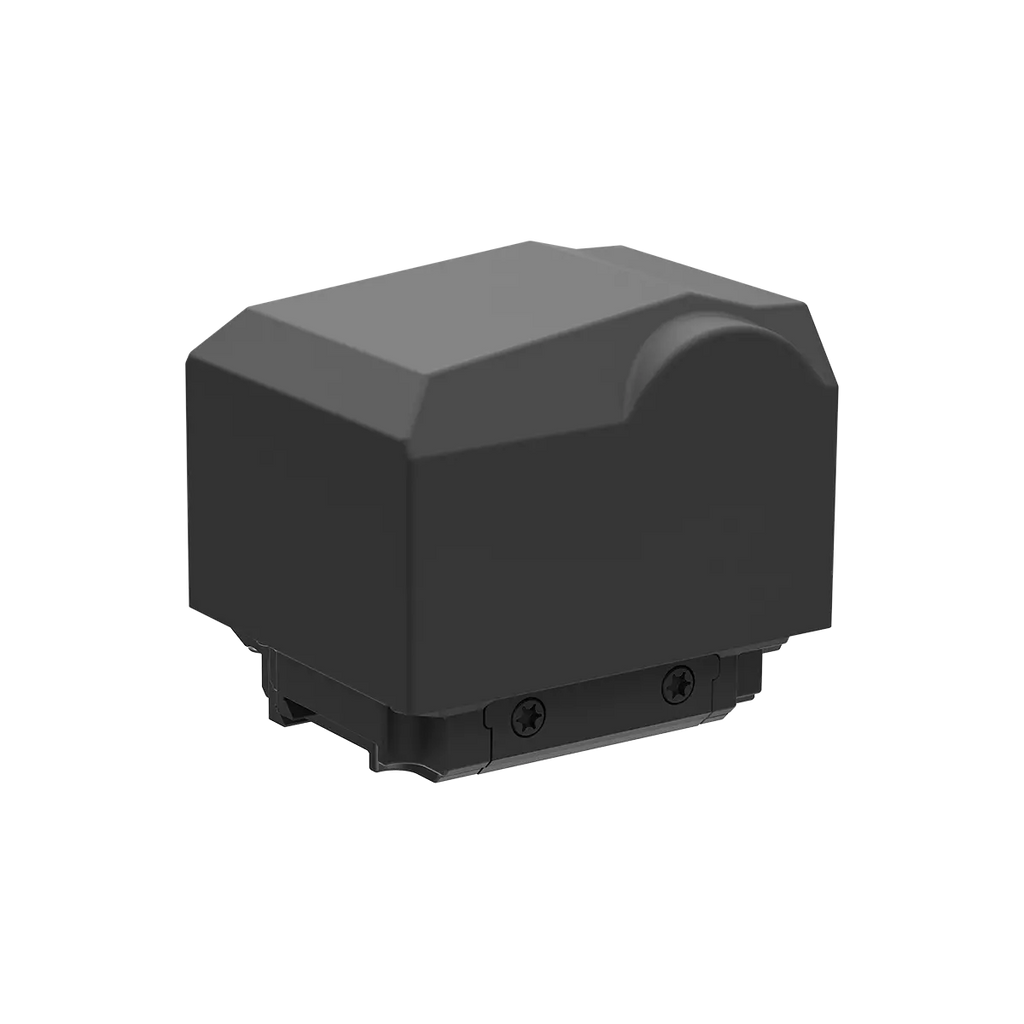

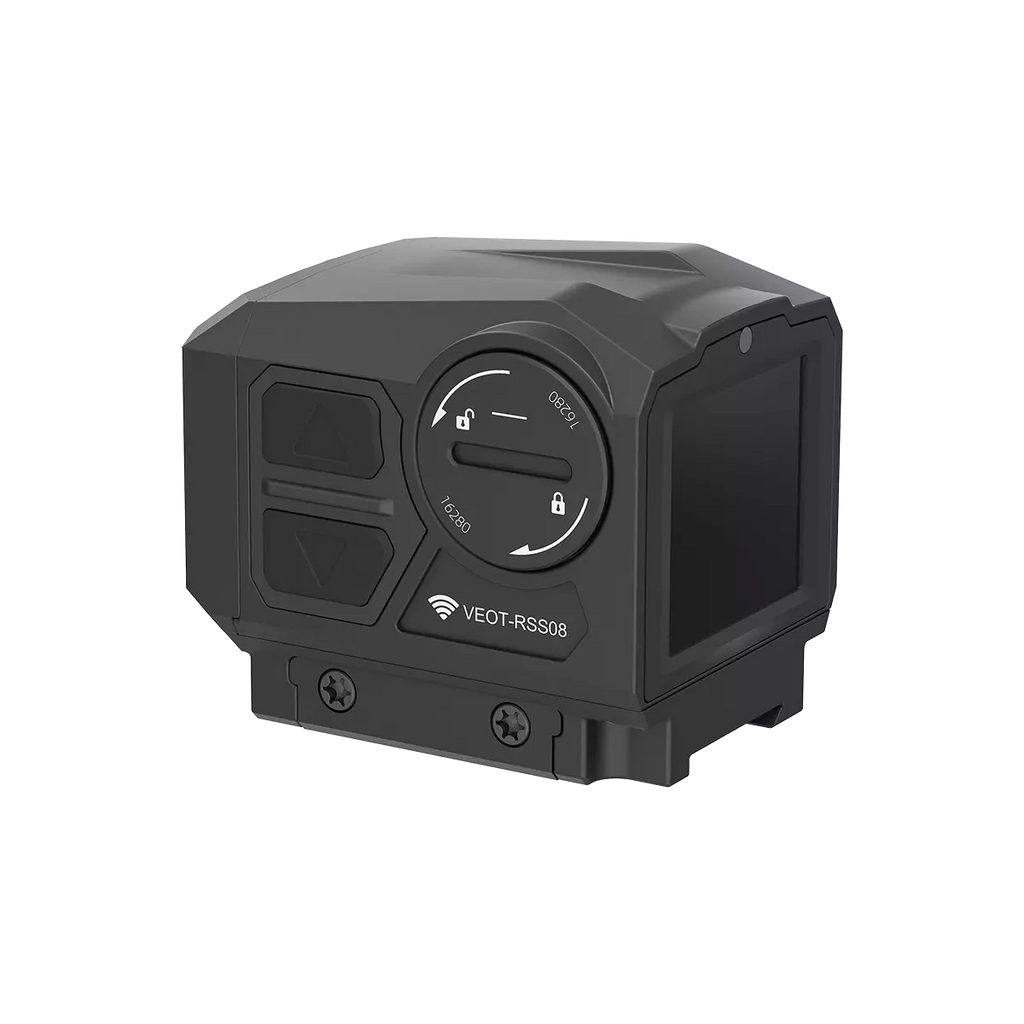

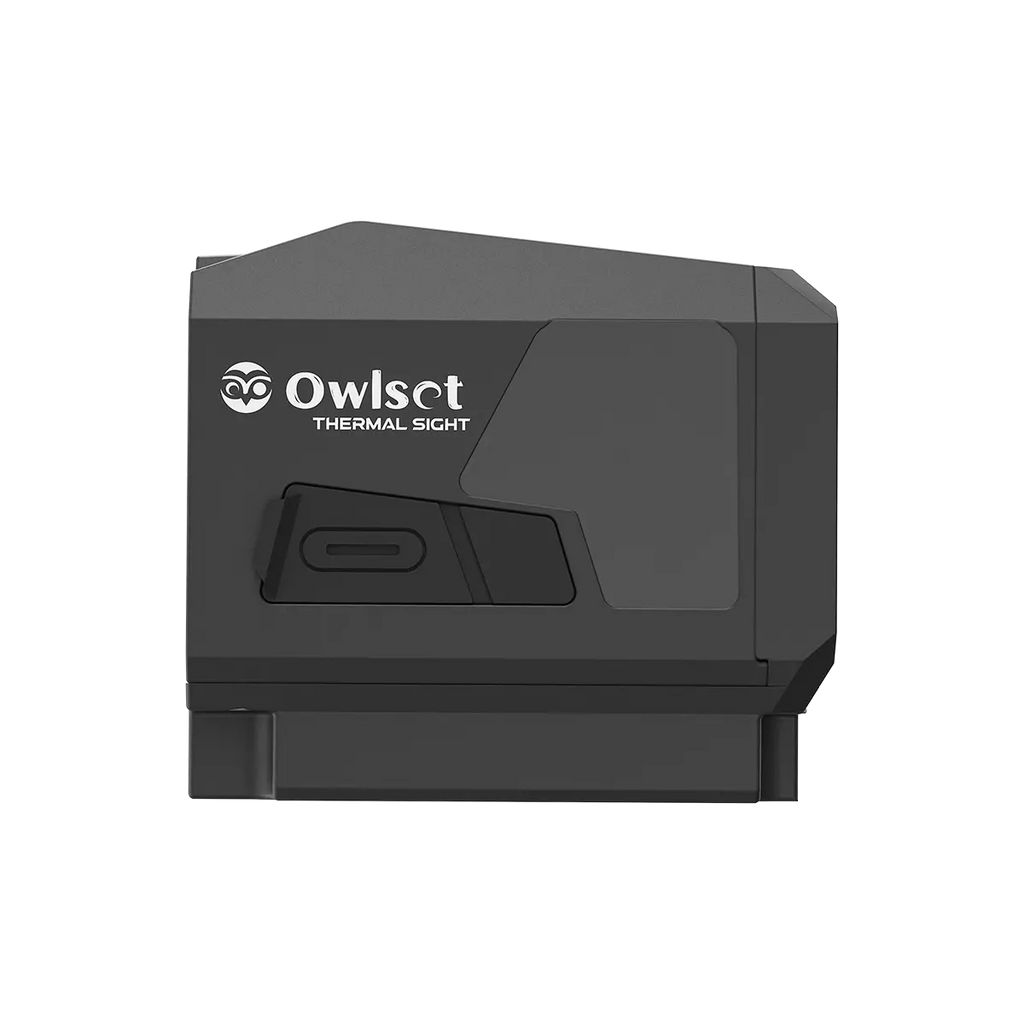

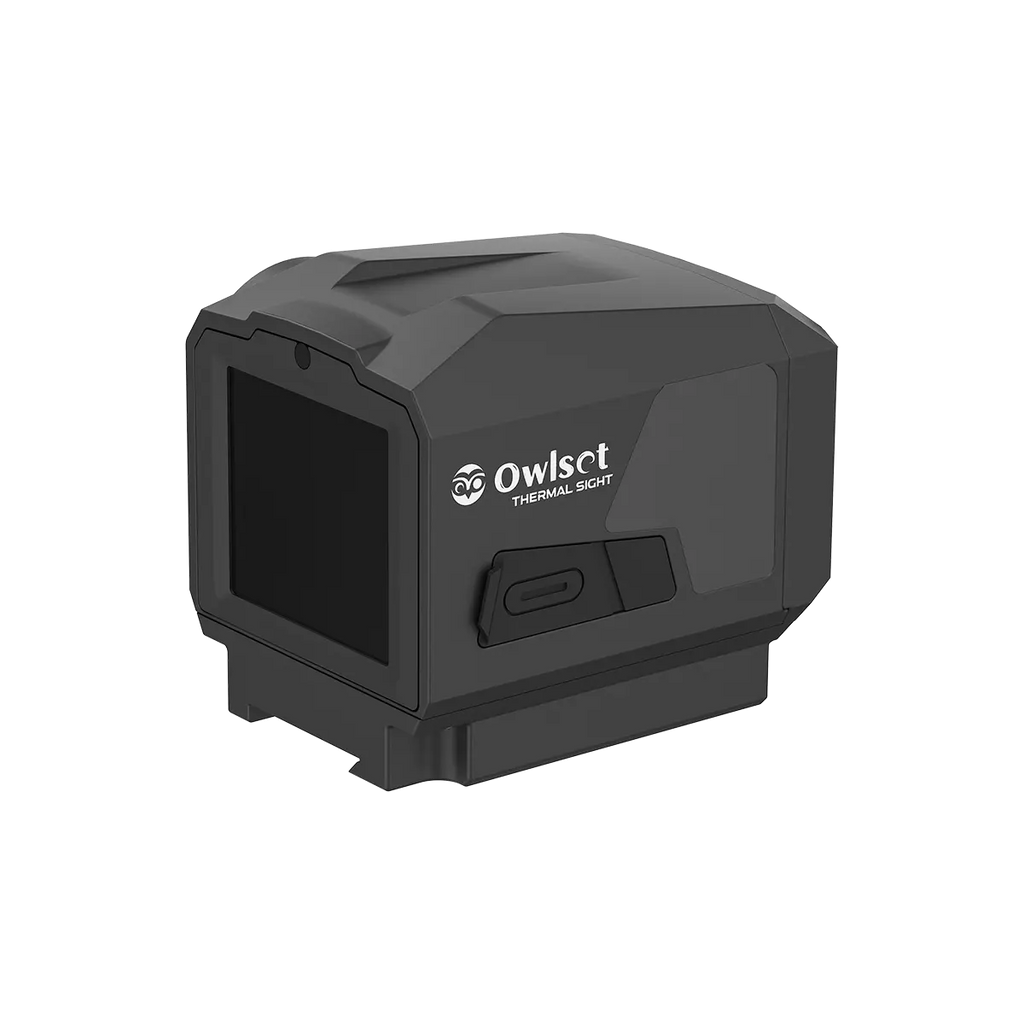

The Owlset Heim ES X-Nano STD Wifi Mini Thermal Sight is an ultra-compact thermal optic built around a 256x192 @ 12 μm sensor. Weighing 123 g with a VOD (Aimpoint ACRO compatible) footprint, it adds short- to mid-range thermal detection to pistols, AR-style rifles and wargame setups with WiFi connection for phone control and recording.

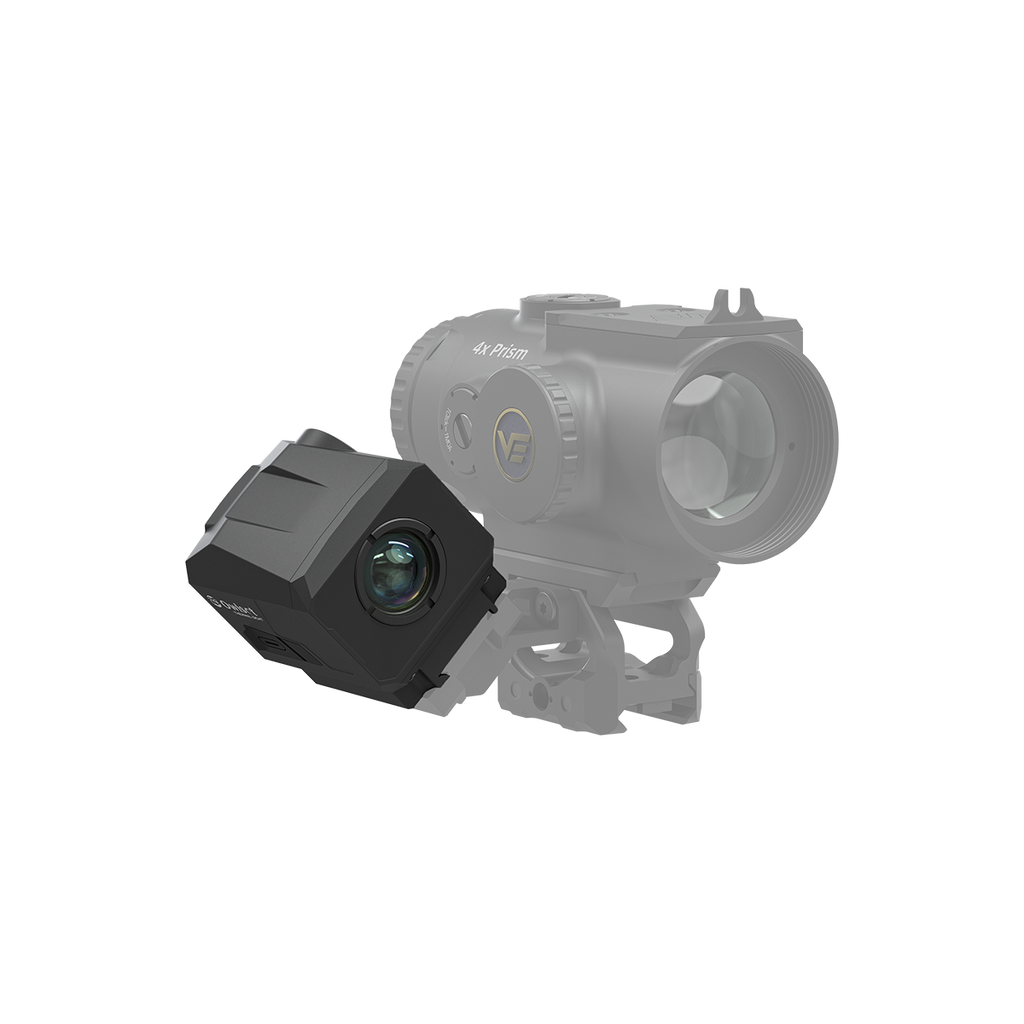

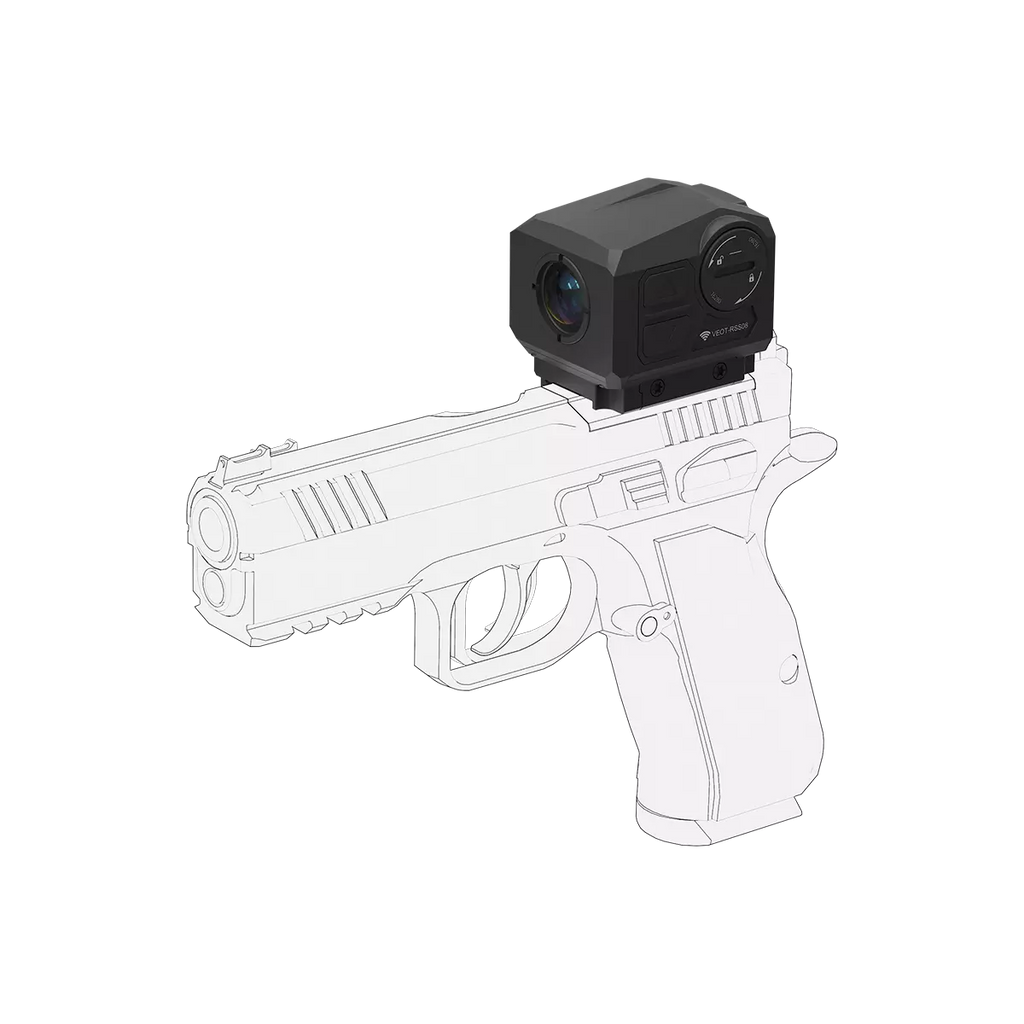

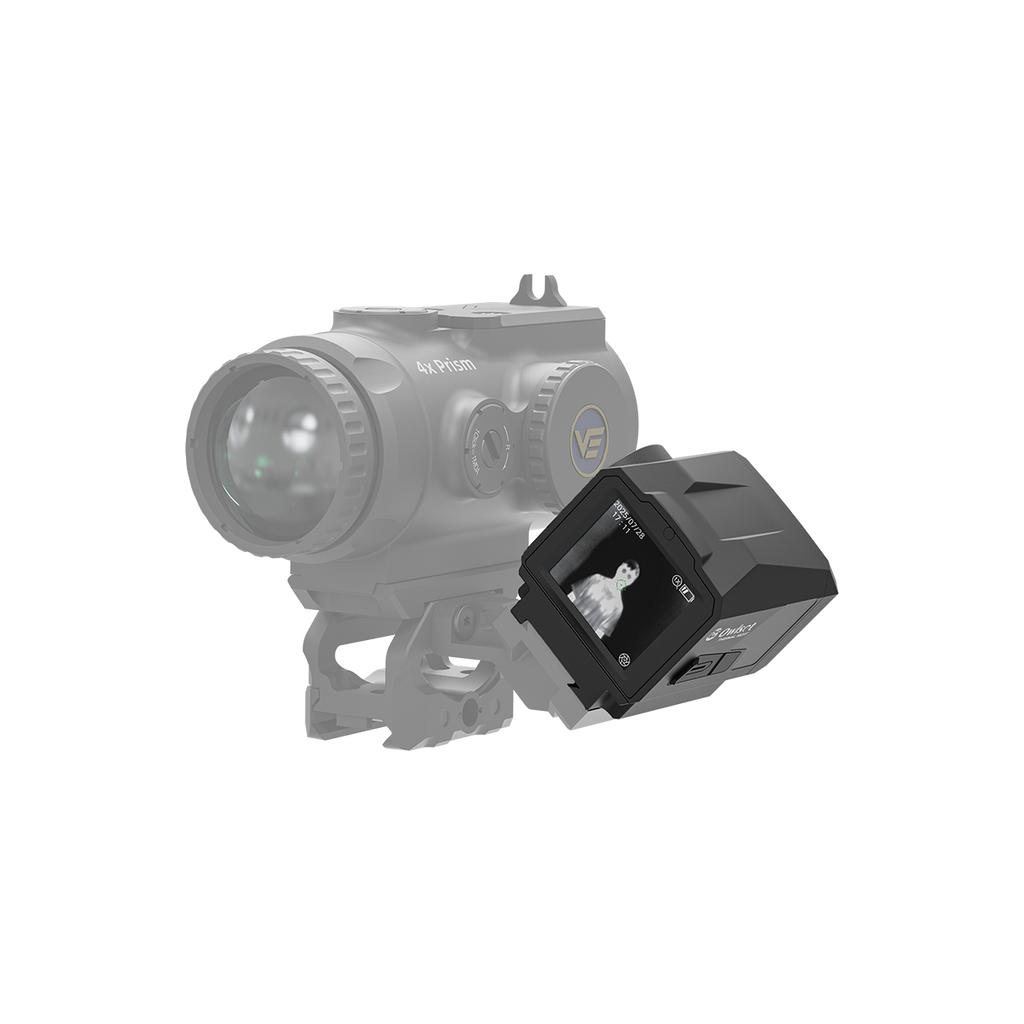

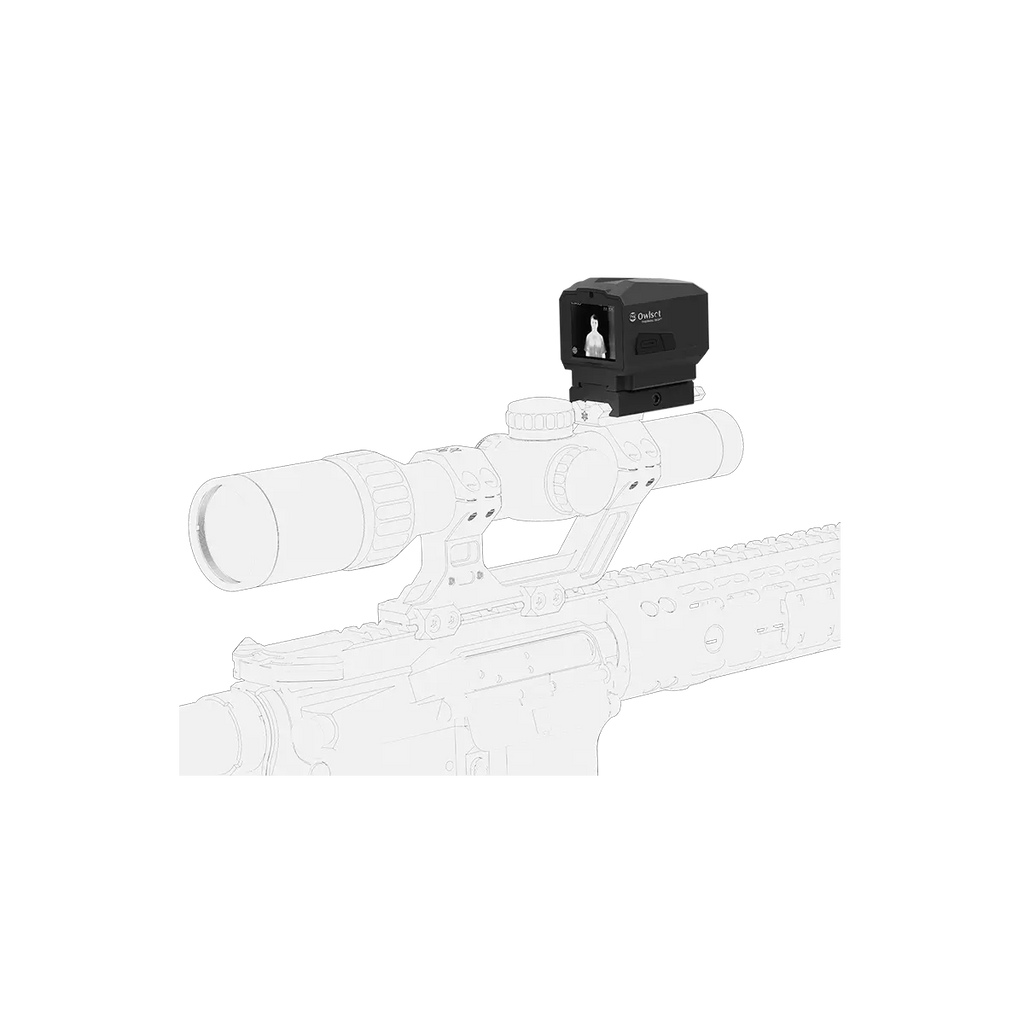

Ultra-compact thermal sight built for pistols, AR-style rifles and wargame use. The 256x192 thermal sensor delivers reliable detection at short to mid range, while the VOD (Aimpoint ACRO) footprint allows clean mounting on optics-ready slides and Picatinny rails.
Key features
- 256x192 @ 12 μm thermal sensor for compact-size detection
- 0.5x and 1x viewing modes with wide field of view
- Real-time hot-spot tracking automatically marks the warmest target
- VOD footprint compatible with the Aimpoint ACRO standard
- Lightweight 123 g housing, IP67 sealing
- WiFi connection to phone for live view, settings and recording
- Battery powered, USB-C charging
Key specifications
- Sensor: 256x192 @ 12 μm
- Display: OLED
- Magnification: 0.5x / 1x
- Footprint: VOD (Aimpoint ACRO compatible)
- Dimensions: 51 x 43 x 46 mm
- Weight: 123 g
- Waterproof: IP67
- Connectivity: WiFi
- Charging: USB-C
- Finish: Matte black

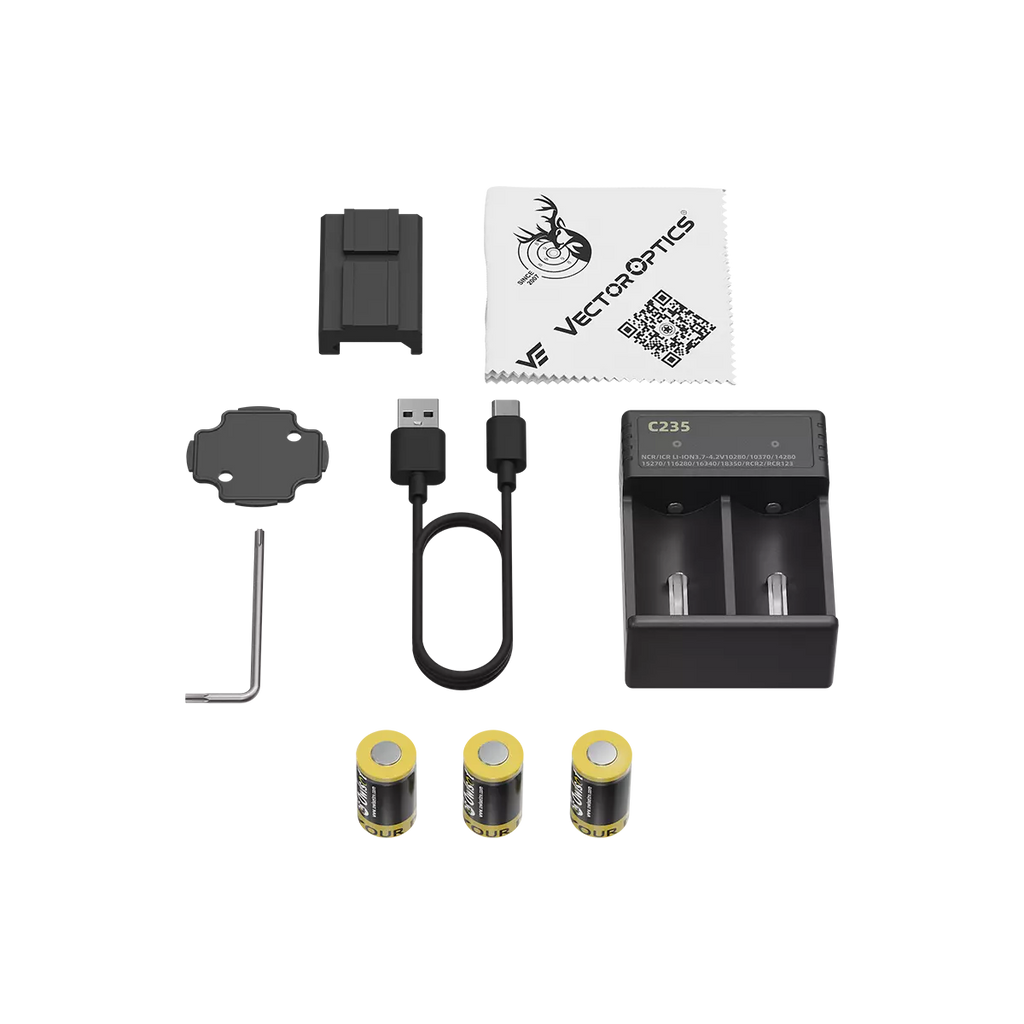

What’s in the box
- Thermal sight
- Mounting base
- Batteries
- USB cable
- Lens cloth
- User manual
Technical specifications
| Infrared Resolution | 256x192 / 12μm |
| Frame Rate | 50Hz |
| Basic Magnification | 0.5x |
| Digital Zoom | 0.5x/1x |
| NETD | ≤40 mK |
| Detection Range | up to 600m (656.17yds) |
| Recognition Range | up to 150m (164.04yds) |
| Angular Field of View | 13.5° × 10.1° |
| Focus Range | 5m – ∞ |
| Display Screen | 1.4 |
| Pseudo-Color Modes | White Hot, Black Hot, Hot Iron, Rainbow, Iron Red, Cold Color |

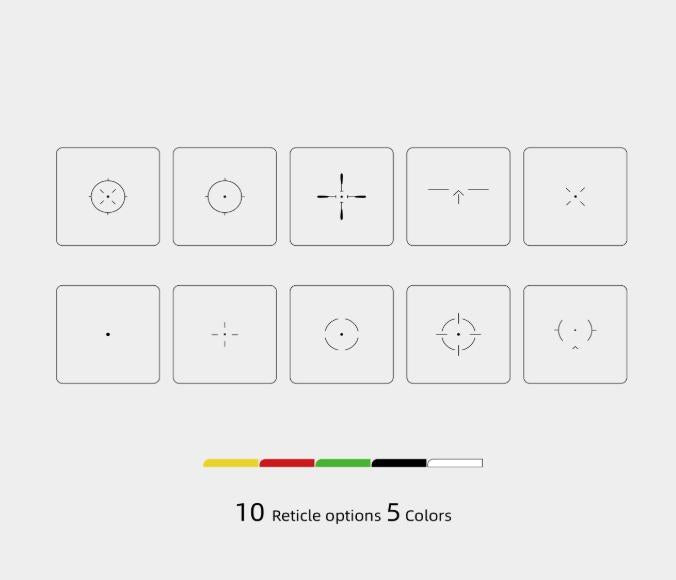

| Reticle | 10 Reticle Options with 5 Color Modes (Black / White / Red / Green / Yellow) |
