Description
The IRIS-3 is a compact triple-function laser and illumination device built for advanced rifle setups with night-vision capability.
Its 7075-T6 aluminum housing integrates a red or green laser, IR aiming laser, and VCSEL IR illuminator to deliver precise aiming and adaptable illumination for both day and night operation.
Key Functions
-
Triple Laser and Illuminator System
Integrated visible red or green laser, IR aiming laser, and IR VCSEL illuminator provide versatile targeting capability across day and night environments. -
High Visibility Red or Green Laser
635nm Class 3Rlaser delivers a crisp visible aiming point with <5mW output for daylight targeting and rapid zeroing. -
Infrared Aiming Laser
800–880nm Class 1 IR laser provides precise aiming capability when operating with night vision devices. -
High Output IR VCSEL Illuminator
60mW IR VCSEL illuminator enhances target identification and environmental awareness in low-light and no-light conditions. -
Adjustable IR Beam Divergence
Top-mounted slider allows quick adjustment from wide flood to tight spot for optimized illumination across varying distances. -
Co-Aligned Laser Zeroing System
Visible and IR lasers are aligned to allow simultaneous zeroing using the visible laser during daylight conditions. -
7075-T6 Aluminum Housing
Hard anodized aluminum construction delivers exceptional strength, durability, and corrosion resistance. -
Ambidextrous Fire Button Control
Center-positioned activation button supports both momentary and constant ON operation for intuitive use. -

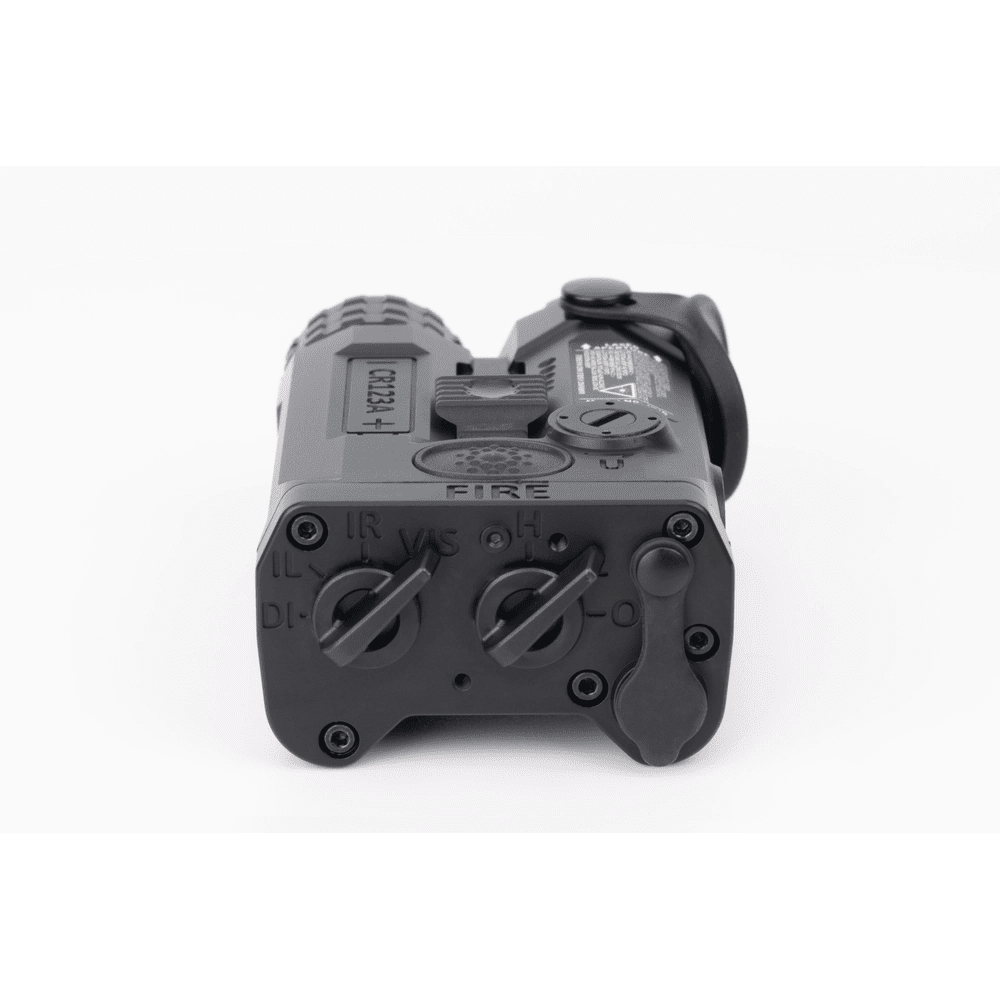

Advanced Rear Control Interface
Dual rear-facing selectors provide intuitive control over laser and illumination modes. -
Remote Switch with VIS Override
Included low-profile dual-button Crane plug pressure pad allows remote activation with visible laser override capability. -
Mission-Ready Durability
IPX8 waterproof rating and 1000G vibration resistance ensure dependable performance in demanding operational environments. -
CR123A Powered System
Runs on a single CR123A battery with front cap access for quick battery replacement in the field.
In the Box
- IRIS-RD3
- Crane Plug Pressure Pad
- Lens Cloth
- Multi-Tool
- Wrench
- Manual
- Warranty Card
Specifications
Electronics
| Power Source | Battery |
| Battery Type | 1x CR123A |
| Battery Life (Hours) | Up to modes |
| Brightness Setting | Up to modes |
Physical
| Dimension | 3.2×1.97×1.34" / 81×50×34 mm |
| Weight | 6.4oz / 181g |
Mechanical
| Housing Material | 7075 T6 Aluminum |
| Surface Finish | Anodized |
Environment
| Storage Temperature | -40℃~70℃ |
| Working Temperature | -30°C~51°C |
| Submersion | IPX8 |
| Vibration | 1000G |
Illuminator
| IR VCSEL Illuminator |
60mW |
| IR VCSEL Illuminator Wavelength |
800~880nm |
| IR Laser Output (mW) |
<.7mW |
| IR Laser Wavelength (green) |
800-880nm |
