Beskrivelse
Upgrade your AR15 with the UTG PRO® Super Slim Flee Float Handguard, proudly made in the USA. This free-floating mid-length handguard offers a lightweight, slim profile with ergonomic grooves for a secure grip.
Featuring an 23-slot top Picatinny rail that extends to meet the upper receiver, it provides ample space for optics and accessories. With a proprietary attachment design and the included detachable 2-slot rail sections, the handguard can be configured for 3, 6, or 9 o'clock positions for accessory attachments.
Precision machined from aircraft grade Aaluminum alloy with black anodized surface finish.
Advantages
- Proudly Designed and Made in USA
- 9 Inch Single Rail, Super Slim, Free-floating Handguard with Proprietary Attachment Design and Extremely Compact Profile
- Super Lightweight with Rail at 12 O'clock Position Forms a Continuous Picatinny Top Section

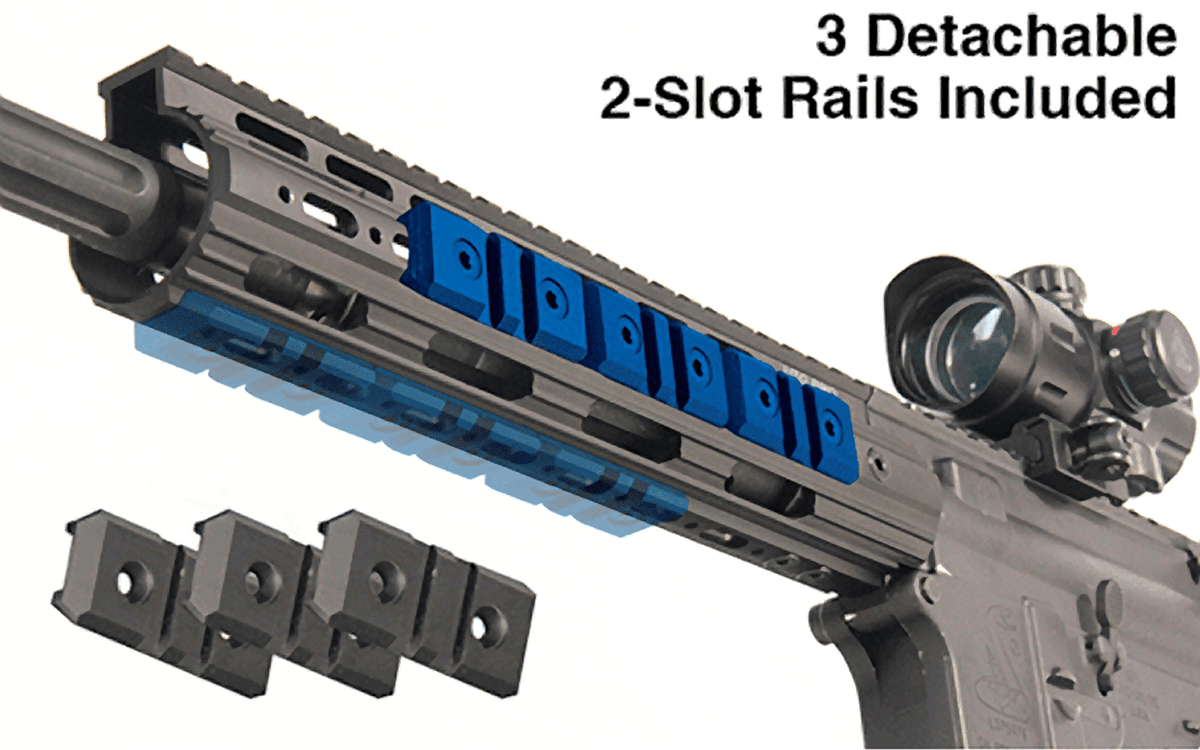

- Includes 3 User Detachable 2-slot Rail Sections for 3, 6, and 9 O'clock Positions
- Integral Anti-rotation Tab for Rock-solid Locking
- Accommodates Low-profile Gas Block
- Ergonomic Slim Tubular Profile for Most Positive Handling
NOTE: This rail system is designed to fit with standard AR15 gas tubes. The compatibility with any special piston system is not guaranteed. Also, the rail system works with standard AR15 upper receivers. It may not be compatible with any re-designed, oversized upper receiver.
Parts included
- 16x Hex Flathead Socket Cap Screw
- 1x Locking Ring for Super Slim Free Float Handguards
- 1x Barrel Nut for Super Slim Free Float Handguards
- 3x 2-Slot Detachable FDE Color Rail
- 4x Spacer Ring
- 1x Mount Users Manual
- 1x Barrel Nut Wrench
- 1x Allen Wrench 3mm
Specifications
| MADE IN USA | Yes |
|---|---|
| PATENT | US PAT. 8806792 |
| MATERIALS | 6061-T6 Aluminum |
| COLOR(S) | Black |
| SURFACE FINISH | Anodized |
| PICATINNY SLOTS | 23 Top |
| TORQUE SPECIFICATION | Barrel Nut 35 ft-lb, Barrel Nut screws 25 in-lb |
| WEIGHT | 9.7 oz (275 g) |
Dimensions
| Barrel Diameter Compatibility | 1 in (25.4 mm) |
|---|---|
| Height | 2.05 in (52 mm) |
| Inner Diameter | 1.36 in (34.5 mm) |
| Installed Length | 9 in (229 mm) |
| Length | 9.59 in (243.59 mm) | 9.25 In (234.95 mm) installed |
| Width | 1.65 in (42 mm) |
| Gas Tube Channel Height | 1.04 in (26.5 mm) from center bore |
| Gas Tube Channel Width | .46 In (11.6 mm) |
