Adjustable Co-Witnessing Red Dot Mount

OuterImpactSKU:OTL-RDM-PCAT02a
Ingen anmeldelser

Style: Base Mount + M.R.A. Top Plate
Pris:
Salgspris 2.099 kr

Avgift inkludert Frakt beregnet i kassen

Lagerbeholdning :
På lager

Beskrivelse

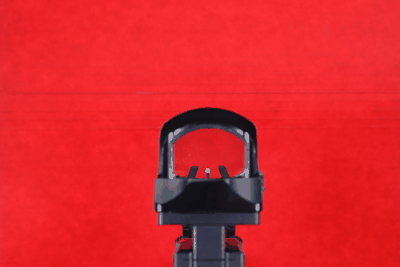

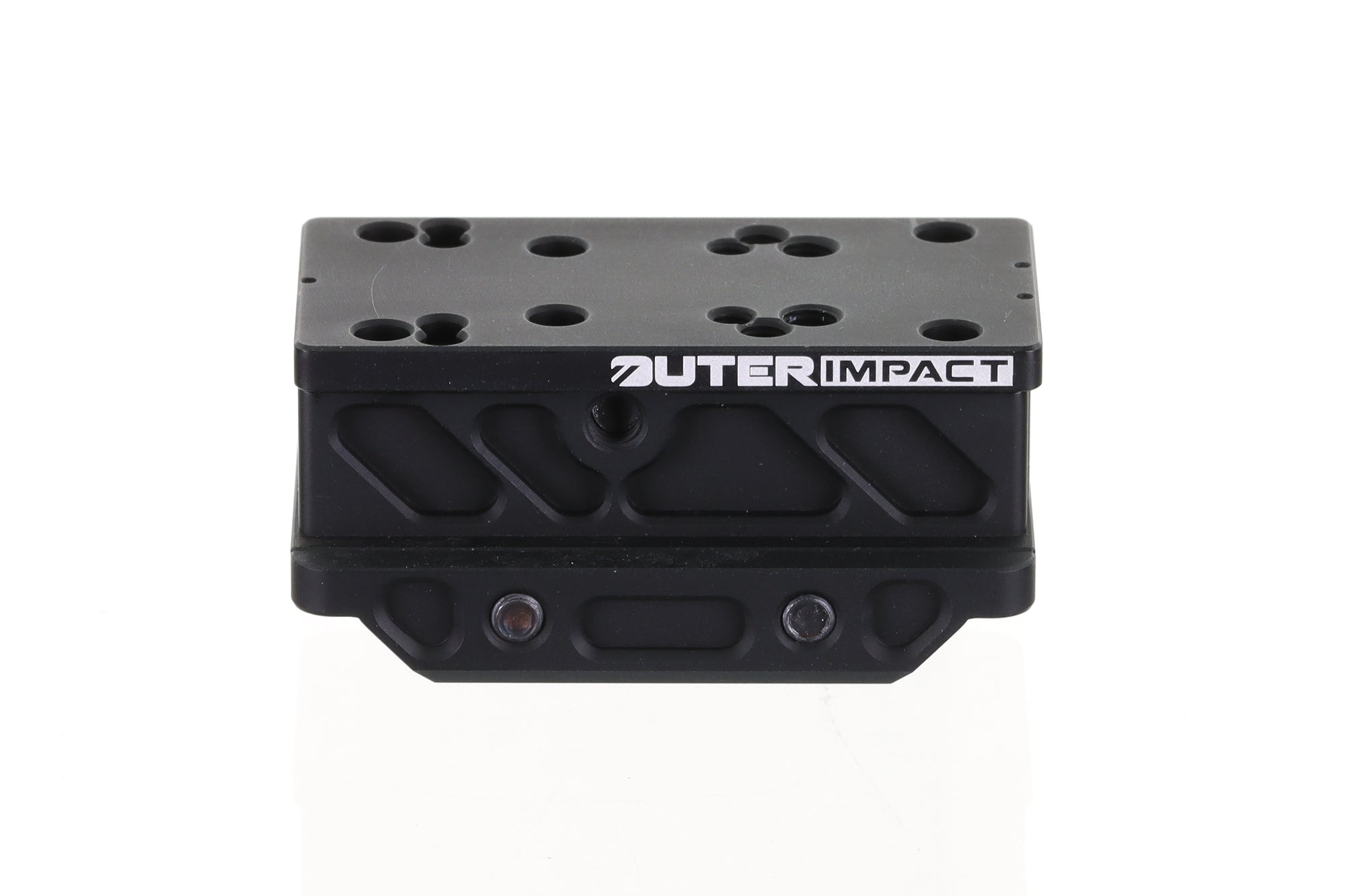

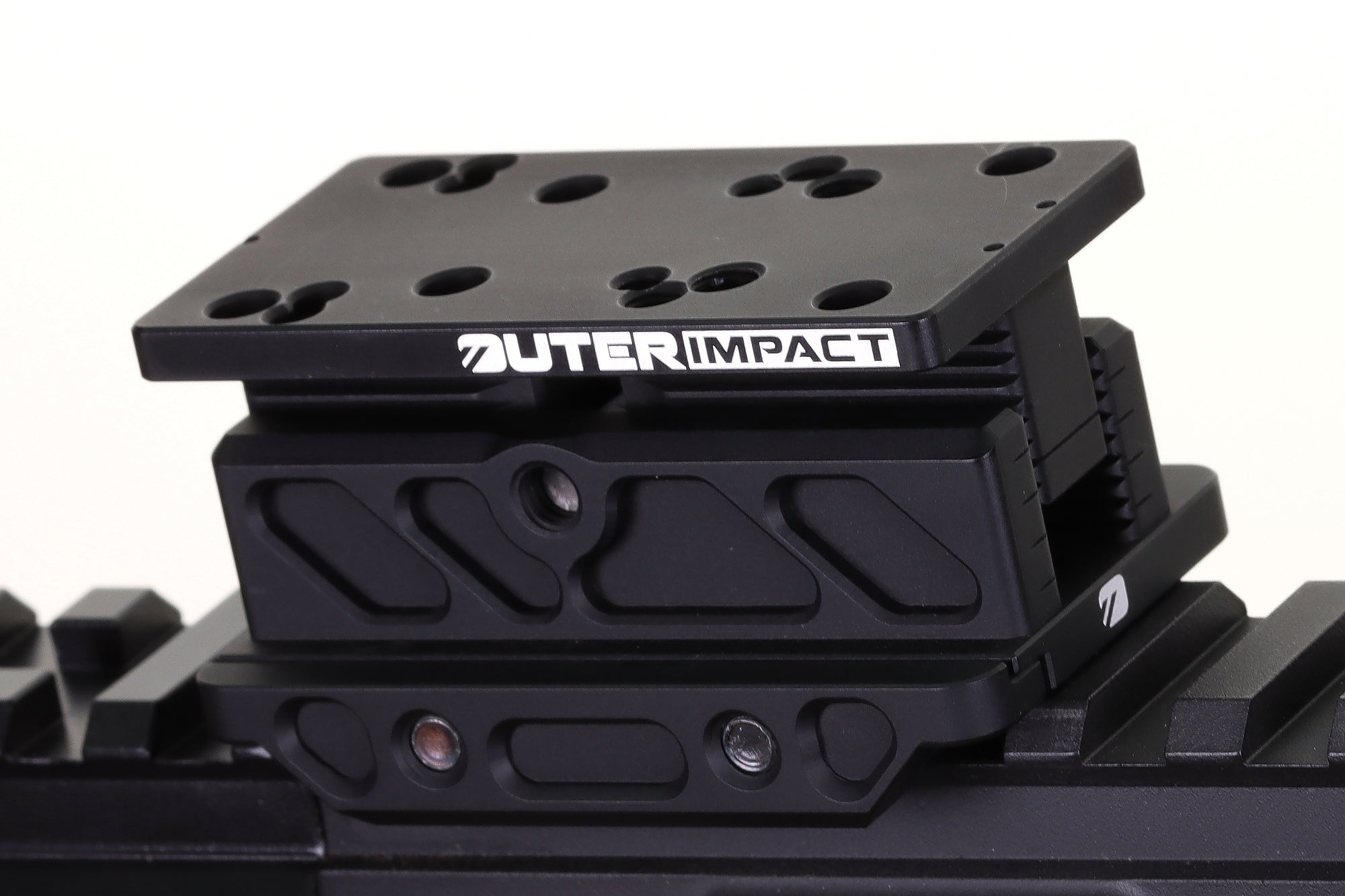

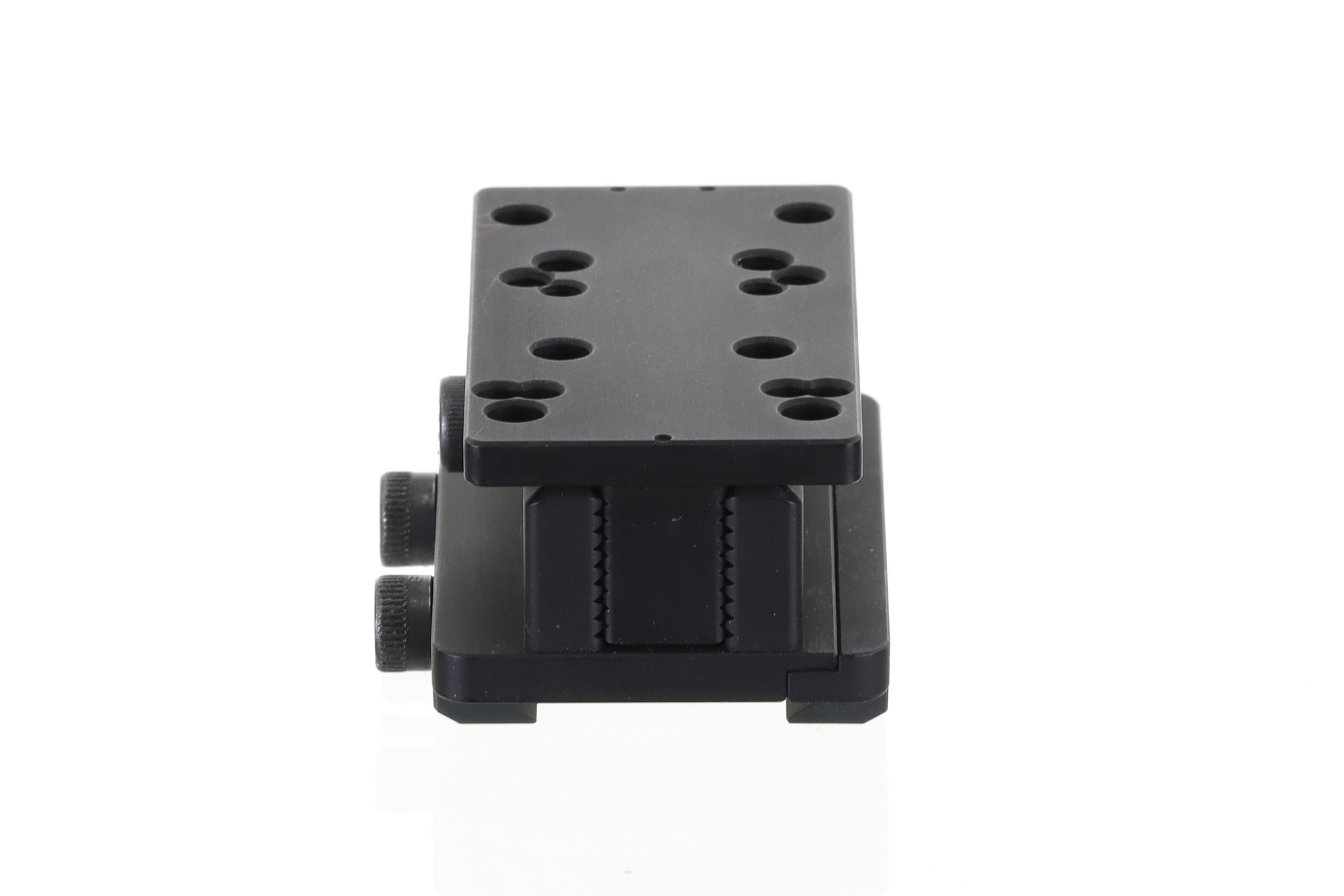

The Adjustable Co-witnessing Red Dot Mount from Outer Impact allows the shooter to utilize a variety of red dot sights on any rifle with a picatinny rail, as well as allowing the shooter to dictate the height of optic or level of co-witness they prefer, from absolute to lower third and multiple points in between.

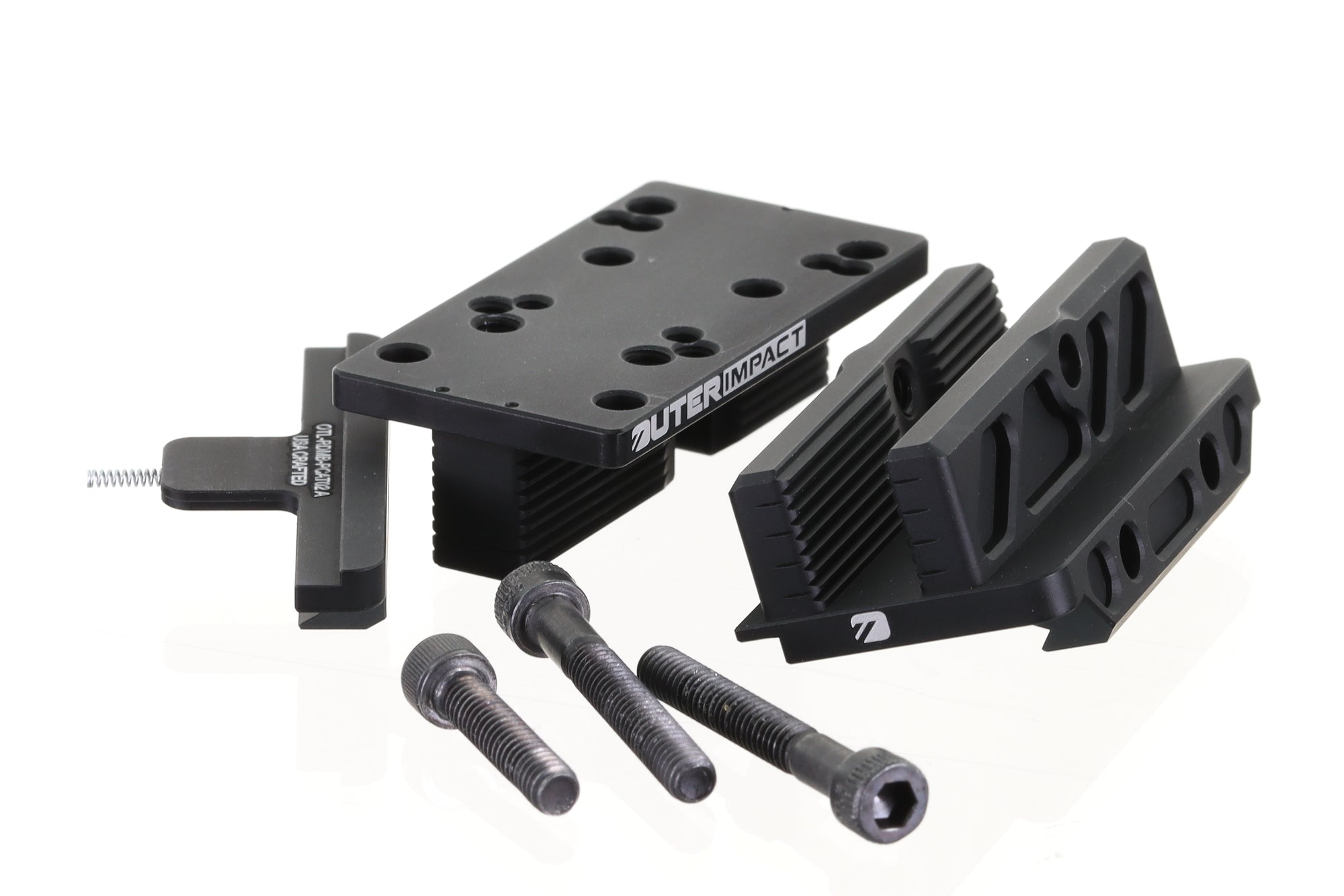

The Outer Impact Adjustable Co-Witnessing Red Dot Mount consists of 2 parts:

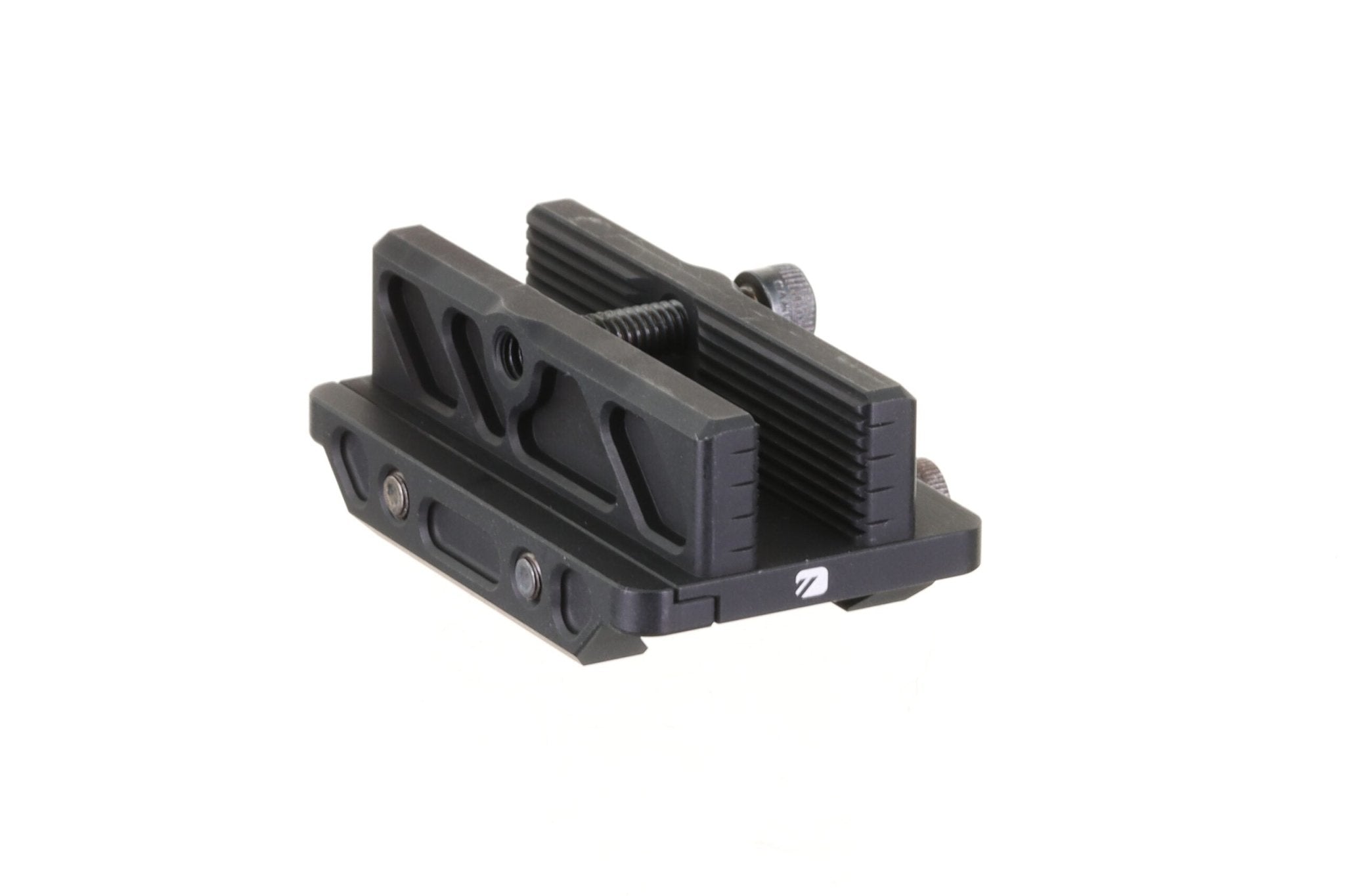

  • Base Mount
  • Top Plate (3 options available)

The Base Mount and Top Plates can be purchased separately, or in combination for a complete Adjustable Co-Witnessing Red Dot Mount.

Available Top Plates

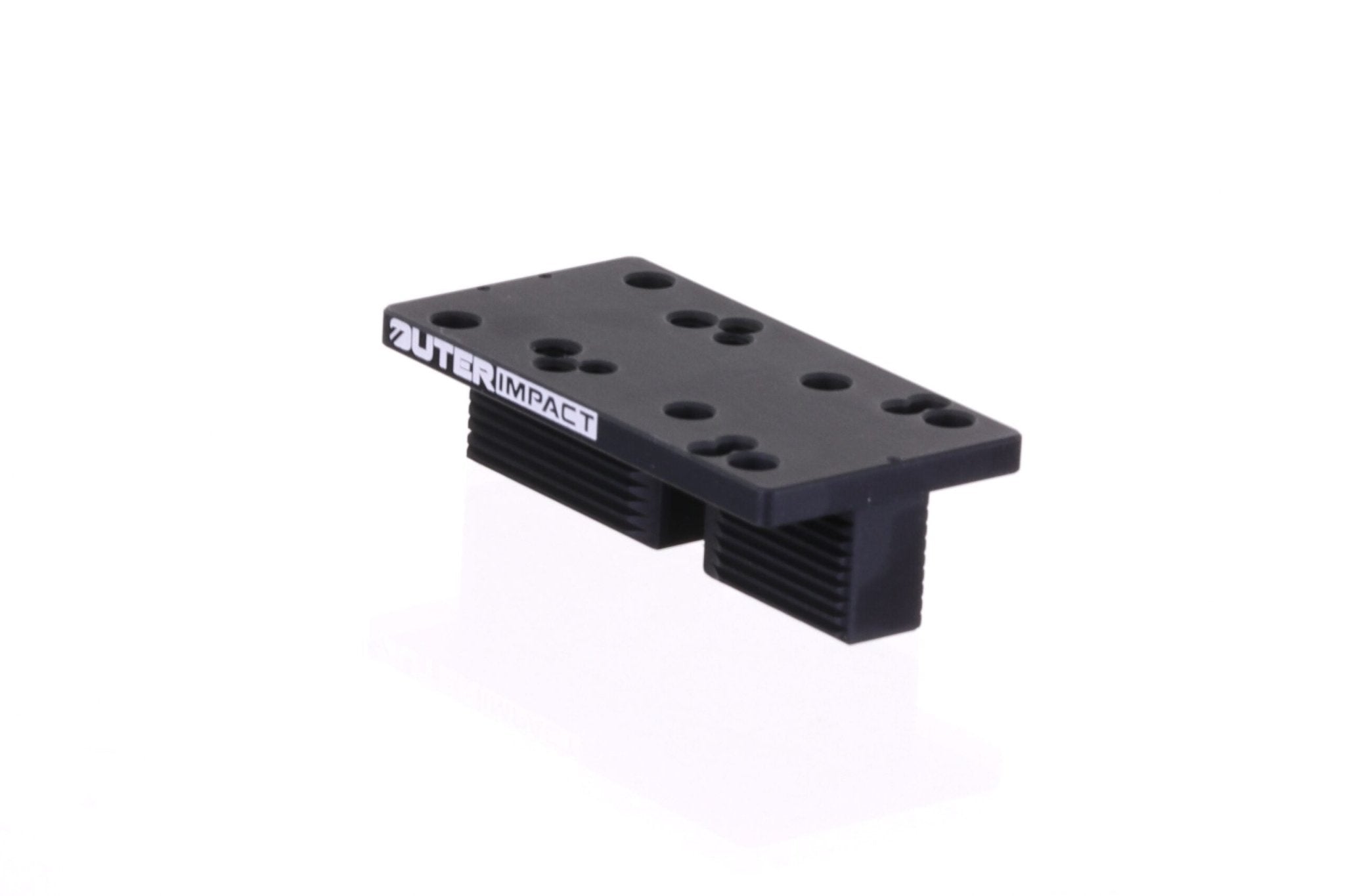

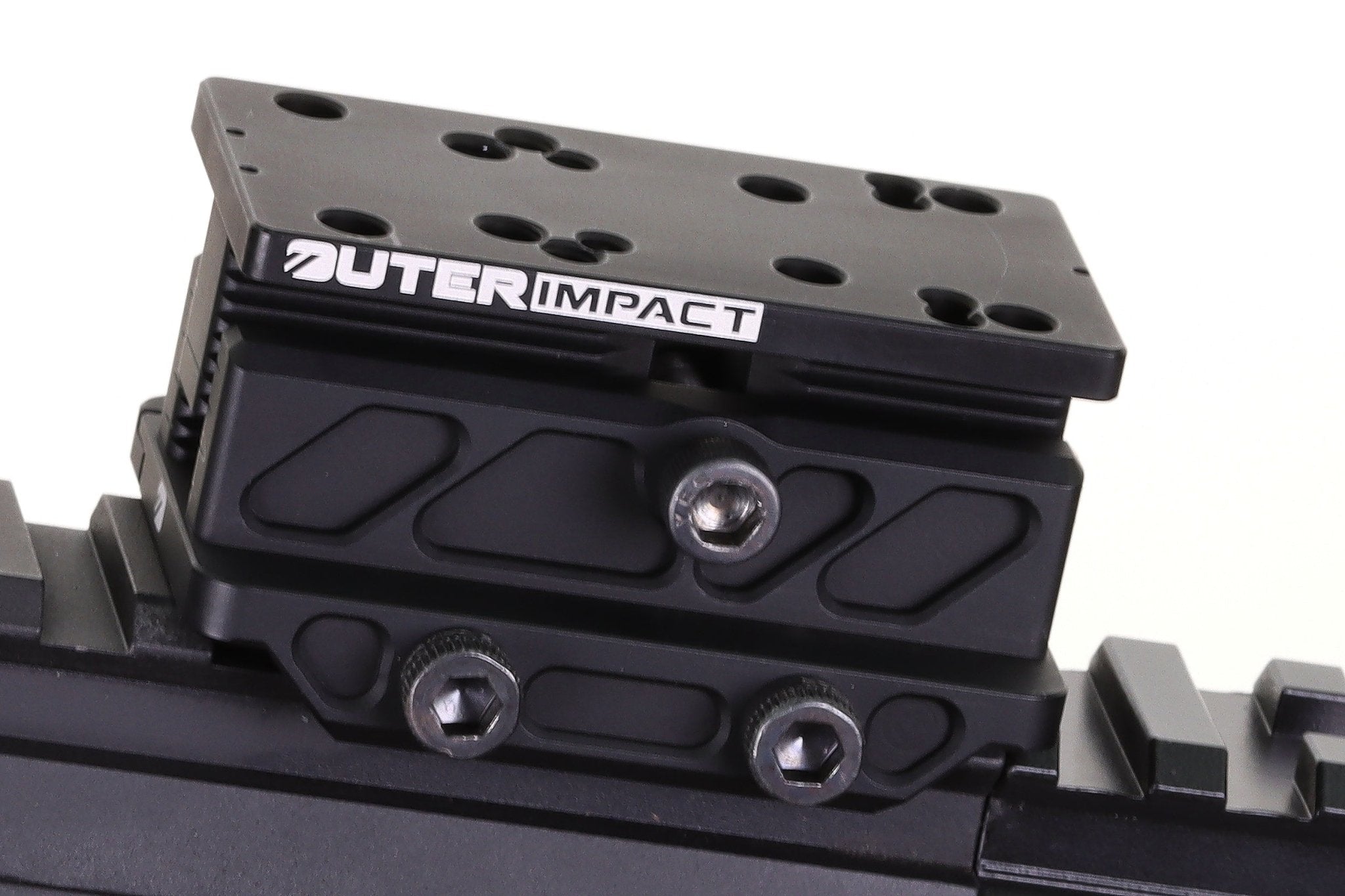

M.R.A. Modular Red-Dot Adapter for "screw & pin" mounted red-dots with the Trijicon RMR, Docter/Noblex, Shield RMS or CMORE RTS/STS footprints. Covers over 31 confirmed compatible red-dots.

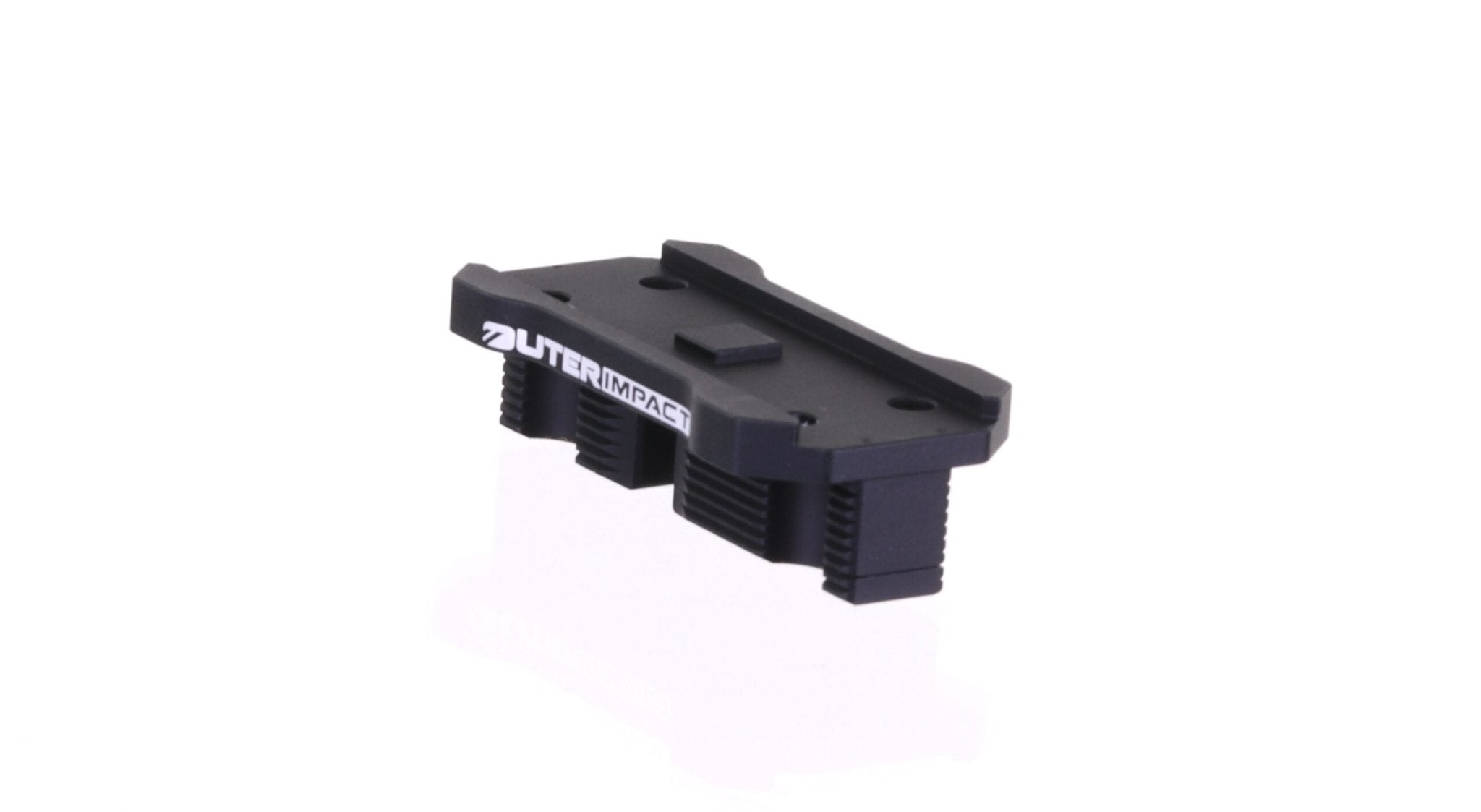

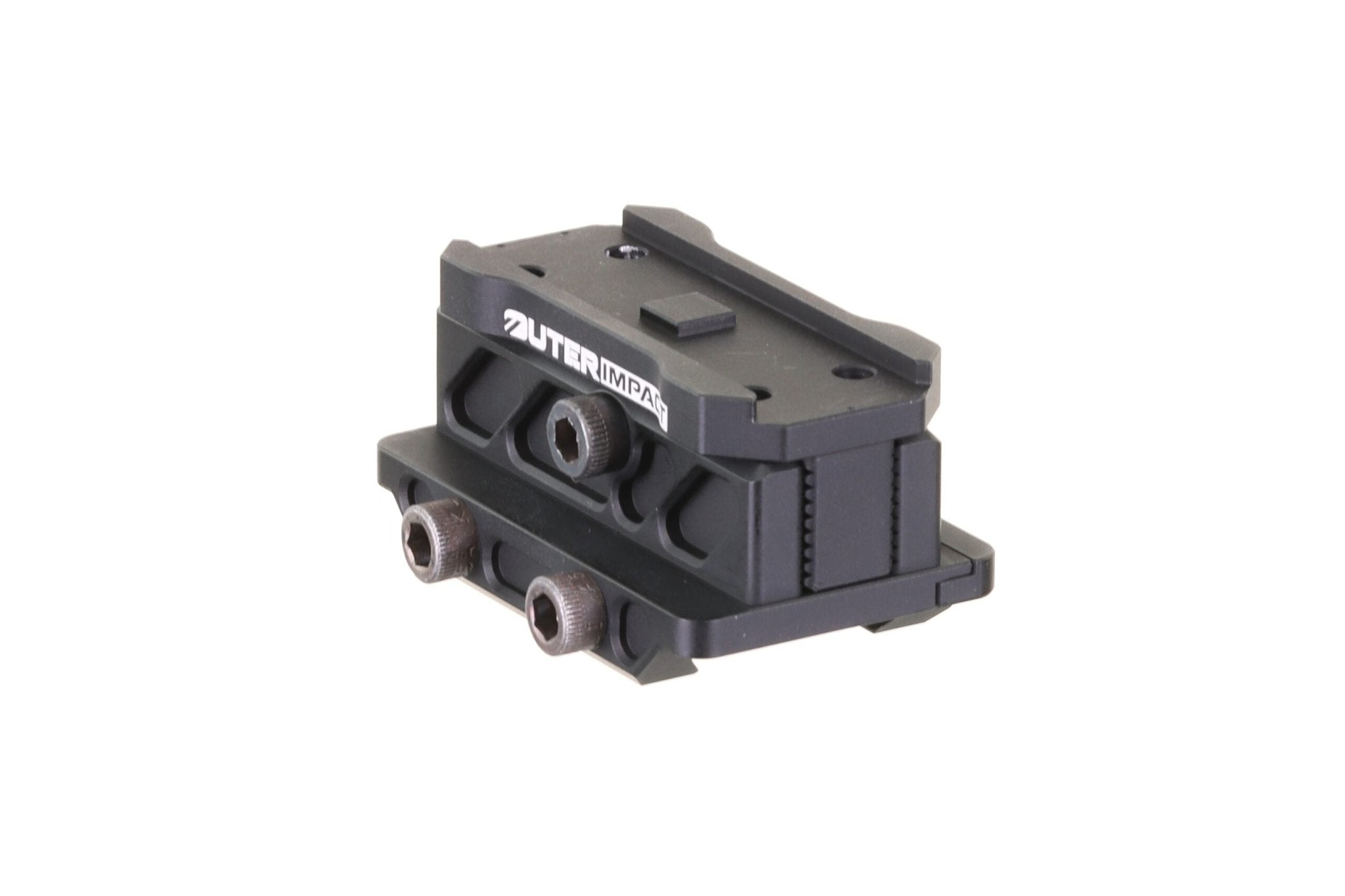

Aimpoint Micro Adapter for red-dots using the Aimpoint Micro mounting standard.

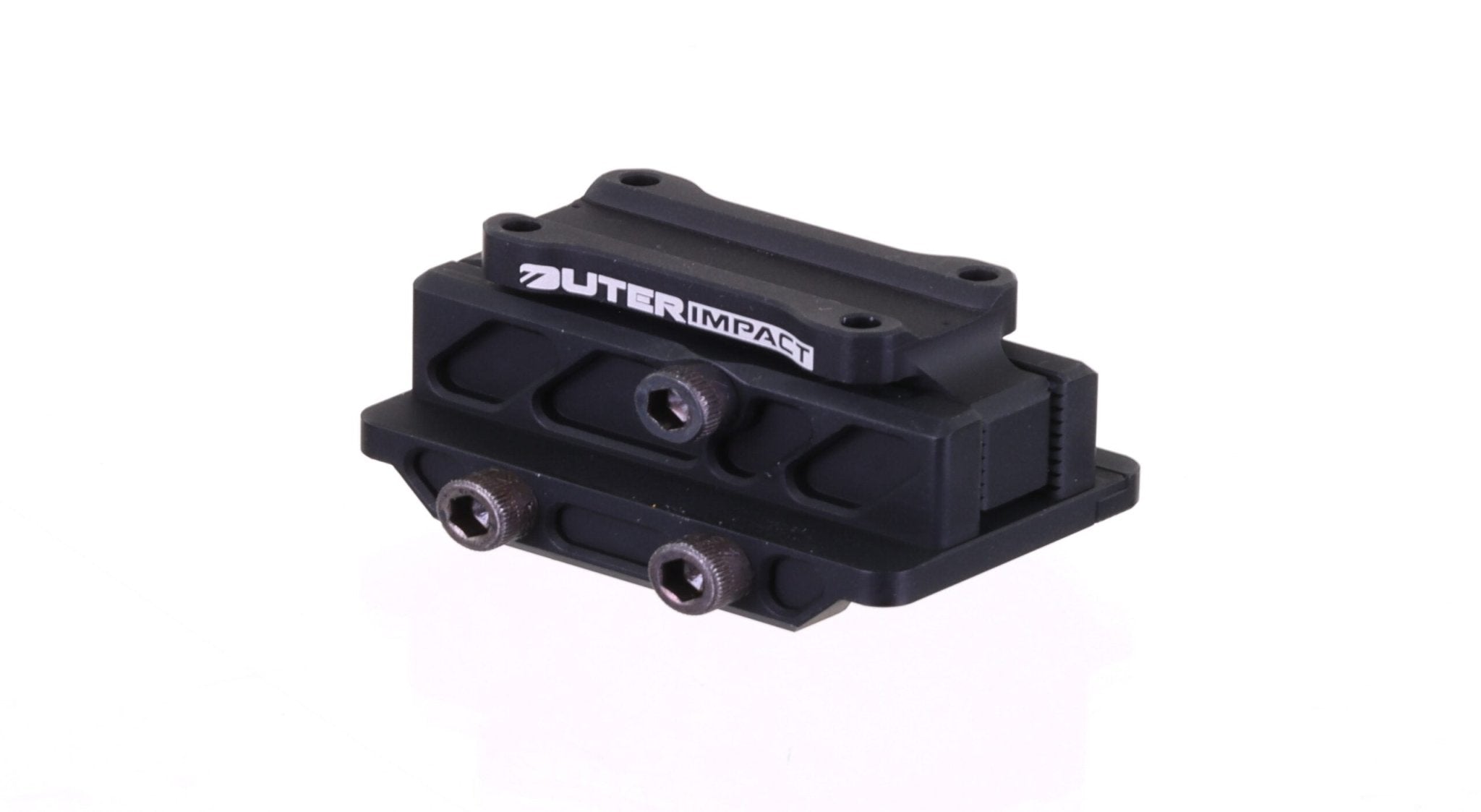

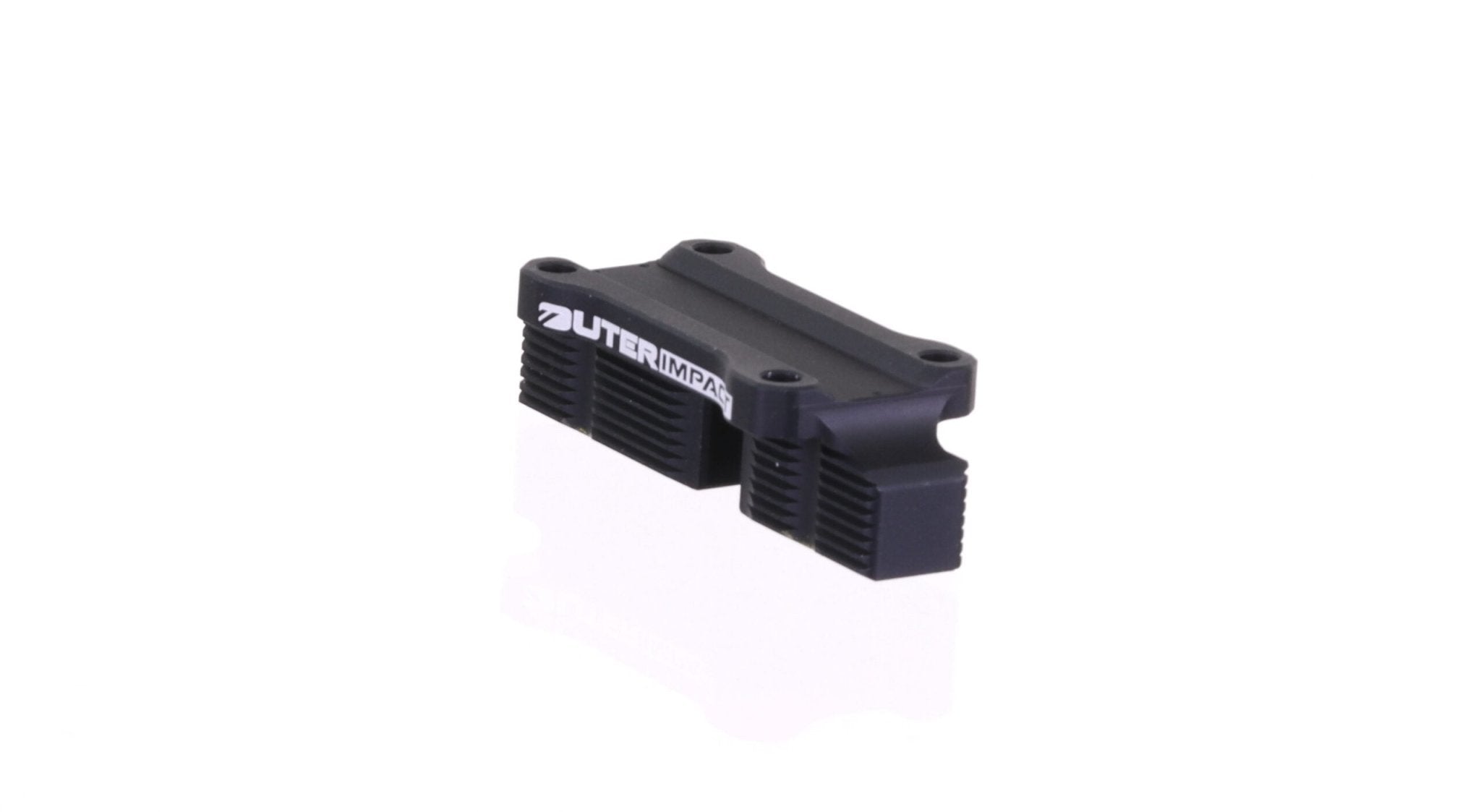

MRO Adapter for red-dots using the Trijicon MRO mounting standard.



See Compatibility Chart at bottom of page for complete list of compatible red-dots.

Installation

This adjustable mount takes only a few of minutes to install on any Picatinny rail type and, once zeroed, you can freely adjust the level of the mount and no re-zeroing is required.

OuterImpact has gone to great lengths to assure that the fit and finish of this system are top-notch. The adapter system is precision-machined from 7075 aircraft aluminum and mounting hardware is included in the kit.

Compatibility Chart (list not exhaustive)

M.R.A Trijicon RMR/SRO
Docter
Insight MRDS
Eotech MRDS
Leupold Delta Point
Leupold Delta Point Pro
Vortex Razor
Vortex Viper
Vortex Venom
Vortex Defender CCW
Burris Fast Fire 2 & 3 & 4
CMORE RTS & STS
Shield RMS (screws not included)
Holosun 507 ”C”/407 ”C” V1 versions (screws not included)
Holosun 507 ”C”/407 ”C” V2 and X2 versions (screws included)
Holosun 508 ”T”
UTG Reflex Micro Dot
TruGlo Tru-Tec
Sig Romeo 3, Romeo 3 Max, Romeo 3 XL
Crimson Trace CTS-1250 & CTS-1550
Springfield Hex Dragonfly (must use OEM provided spacer)
Bushnell RXS-100 and 250
Kahles Helia RD
Creative XP Glass Eagle (screws not included)
Noblex NV G
SOUSA DARC Micro (screws not included)
Sightmark – Mini Shot
Aimpoint Micro Actus Core-1 1×20
Actus Core-2 1×20
Aimpoint CompM5
Aimpoint Duty RDS
Aimpoint CompM5b
Aimpoint Micro H-1
Aimpoint Micro H-2
Aimpoint Micro T-1
Aimpoint Micro T-2
Athlon Midas TSR2
Blaser RD 17
Burris Fastfire RD
DI Optical SP1
Holosun 403 models
Holosun 503 models
Holosun 515 models
Holosun 530 models
Kahles Helia RD-C
MAKdot S 1×20
Minox RV1
Primary Arms SLX Advanced Rotary Knob
Primary Arms SLX MD-20
Sightmark Element Mini Solar
Sightmark Wolverine 1×23 CSR
Sightmark Wolverine 1×28 FSR
Sig Sauer Romeo4
Sig Sauer Romeo5
Sig Sauer Romeo-MSR
Swampfox Liberator 1×22
Vector Optics Centurion 1×20
Vector Optics Maverick 1×22
Vector Optics Maverick 1×22 Gen II
Vector Optics Scrapper 1×22
Vector Optics Scrapper 1×25
Vortex Crossfire
Vortex Sparc AR
Vortex Sparc Solar
ZeroTech Thrive
MRO Trijicon MRO
Trijicon MRO Patrol
Burris RT-1X

Mounting Hardware

  • (1) M3 x 8mm Socket Head Cap Screws
  • (2) 6-48 Weaver T-10 Torx Head Screws
  • (2) Sight alignment pins
  • (2) M3 x 8mm Flat Head Screws
  • (2) M3 x 9mm Flat Head Screw
  • (2) M3 x 6mm Torx Flat Head Screws
  • (2) M3 x 6mm Socket Head Cap Screws
  • (2) 6-40 Flat Head Screws – RMR
  • (2) M4 X 10mm Rounded Head Screws

Required Installation Tools

  • Torque Driver
  • Extended shank T-10 Bit

Please follow mounting instructions included with the optic.

Material: Billet 7075-T6 aluminum
Finish: Black Anodize
Coating: Anodize
Dimensions, M.R.A. Top Plate: .600″ x 2.02″ x .1.06″
Dimensions, Aimpoint Micro Top Plate: .678″ x 1.98″ x .945″
Dimensions, MRO Top Plate:
.660″ x 1.98″ x .755″
Additional Tools: T-10 Torx driver (not included)
