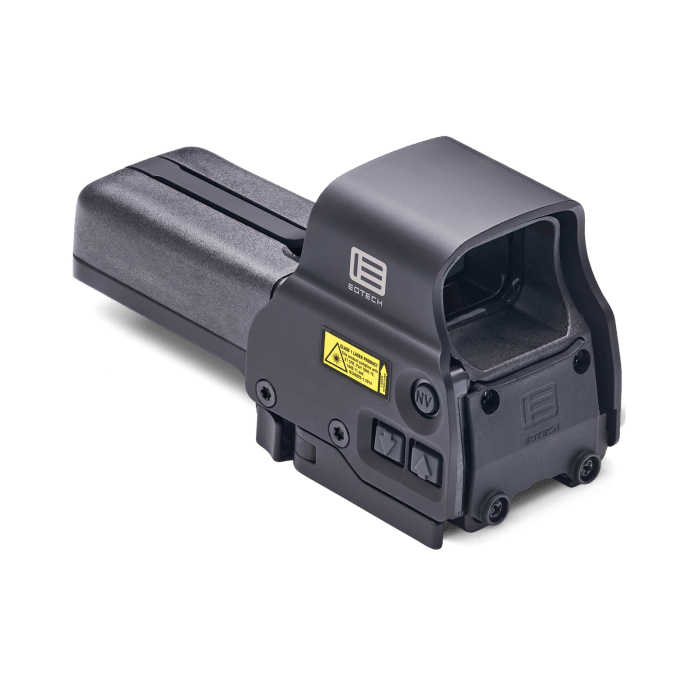

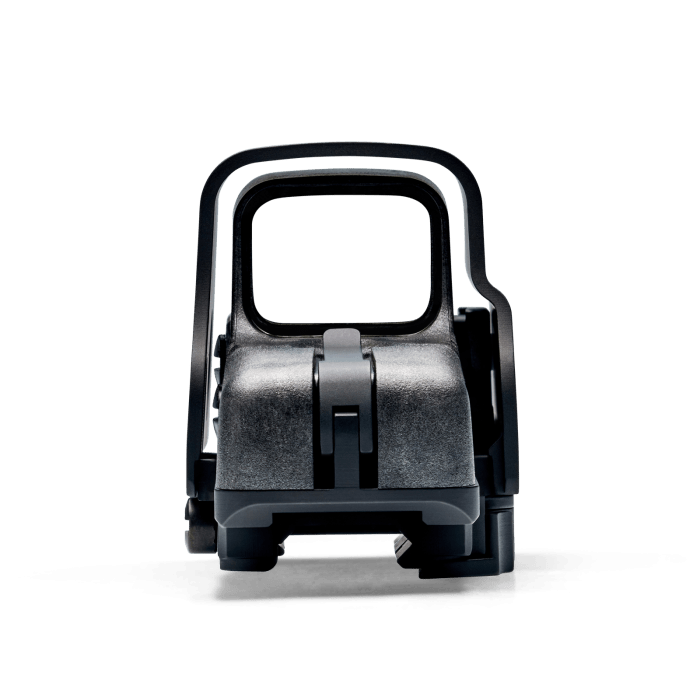

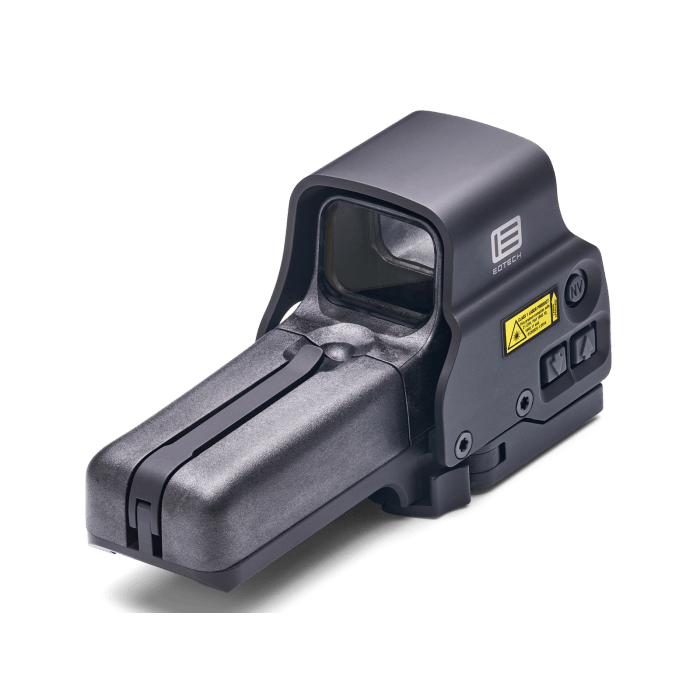

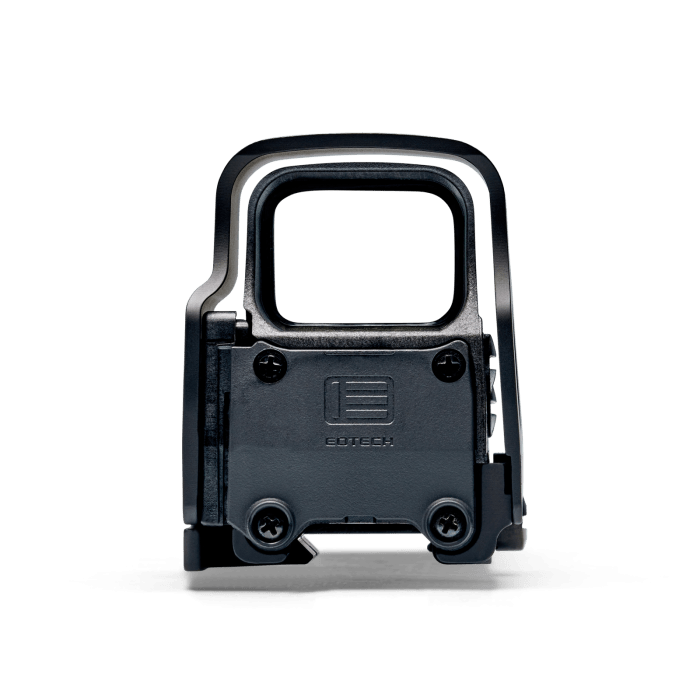

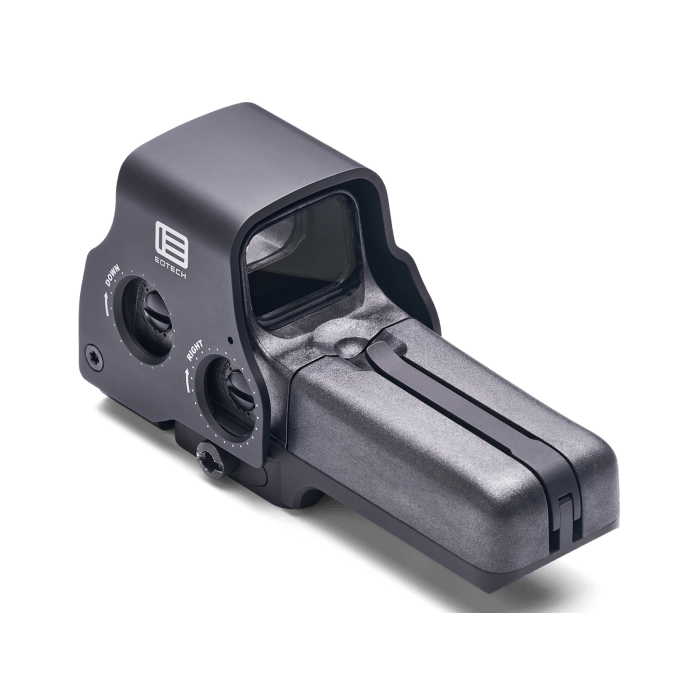

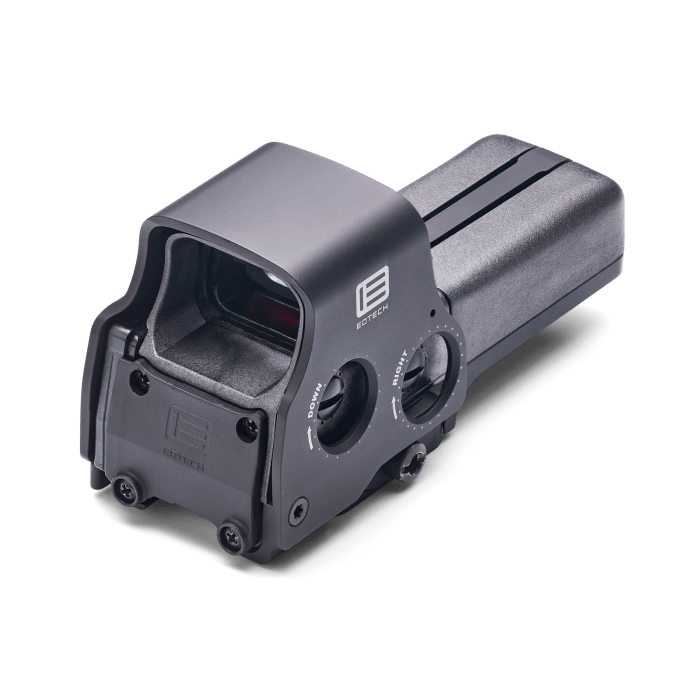

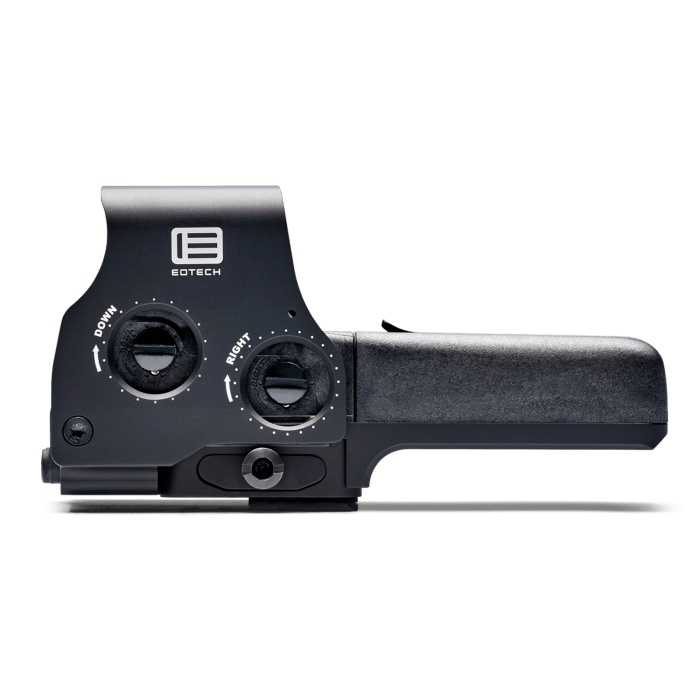

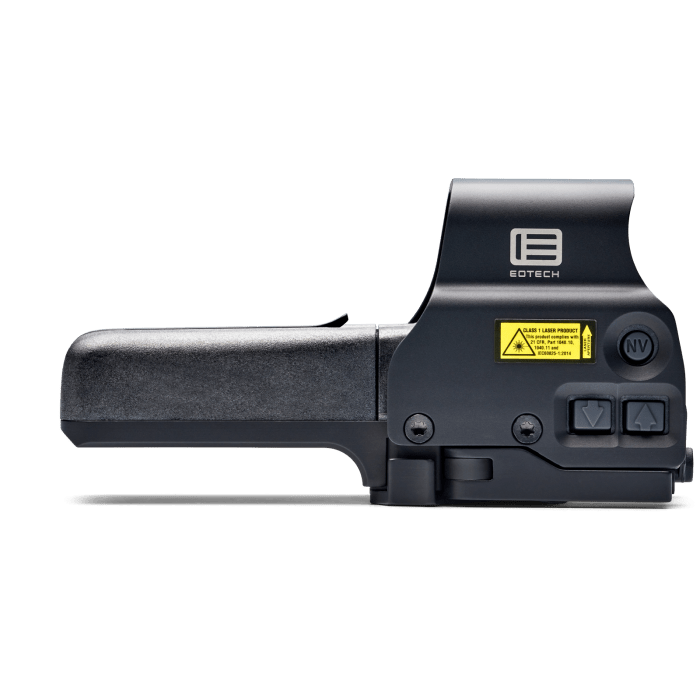

HWS 558™

Perfect for anyone who refuses to compromise, the Model 558^™ works seamlessly with all Gen I–III night vision devices. Its adjustable, locking quick-detach mount allows fast, secure installation and instant removal, making it ideal for professionals who demand flexibility and reliability.

EOTECH HWS^® optics use advanced holography—not LED projection—to deliver a faster, clearer, and more accurate sight picture. Designed for speed, precision, and situational awareness that standard red dots can’t match.

Reticles

• 0-RETICLE The 68 MOA speed ring with a 1 MOA dot enables fast target acquisition and provides three aiming points, calibrated for .223 Cal. 62 Gr., 2,900 Vel. Other calibers can be used by determining the ranges. With shotguns, the ring approximates shot patterns, which vary based on choke and shell type.

Features

• MAINTAIN PRECISION HWS^® holographic optics let you view the reticle and target simultaneously for quicker, more intuitive target acquisition.

• NEVER OUT OF THE FIGHT The HWS^® continues to perform with precision even when the window is damaged or obscured, proving its reliability in the most demanding environments.

• MINIMIZE PARALLAX By projecting a holographic reticle at 200m, the HWS^® minimizes parallax—making it the Close Combat Optic of choice for USSOCOM.

• MADE IN THE USA Built in the USA. Trusted worldwide. Every HWS^® is crafted by American hands with precision and pride.

Tech Specs

L × W × H: 5.6" x 2.2" x 2.9" (142.2 x 55.9 x 73.7 mm)
Weight: 13.8 oz (391.2 g)
Mount: 1" Weaver or MIL-STD-1913 rail
Windage & Elevation Adjustment: 0.5 MOA per click
Night Vision Compatibility: Yes
Brightness: 20 daylight settings
10 additional settings for Gen I through III+ night vision devices
Power Source: 2 x 1.5 V AA batteries - Supports lithium, alkaline or rechargable
Country of Origin: Made in USA

Performance

Water Resistant: 33ft. (10 m) depth
Battery Life: Lithium: 2,500 continuous hours at nominal setting 12 at room temperature
Alkaline: 2,200 continuous hours at nominal setting 12 at room temperature
Operating Temperate: -40°F to 140°F (-40°C to 60°C)
