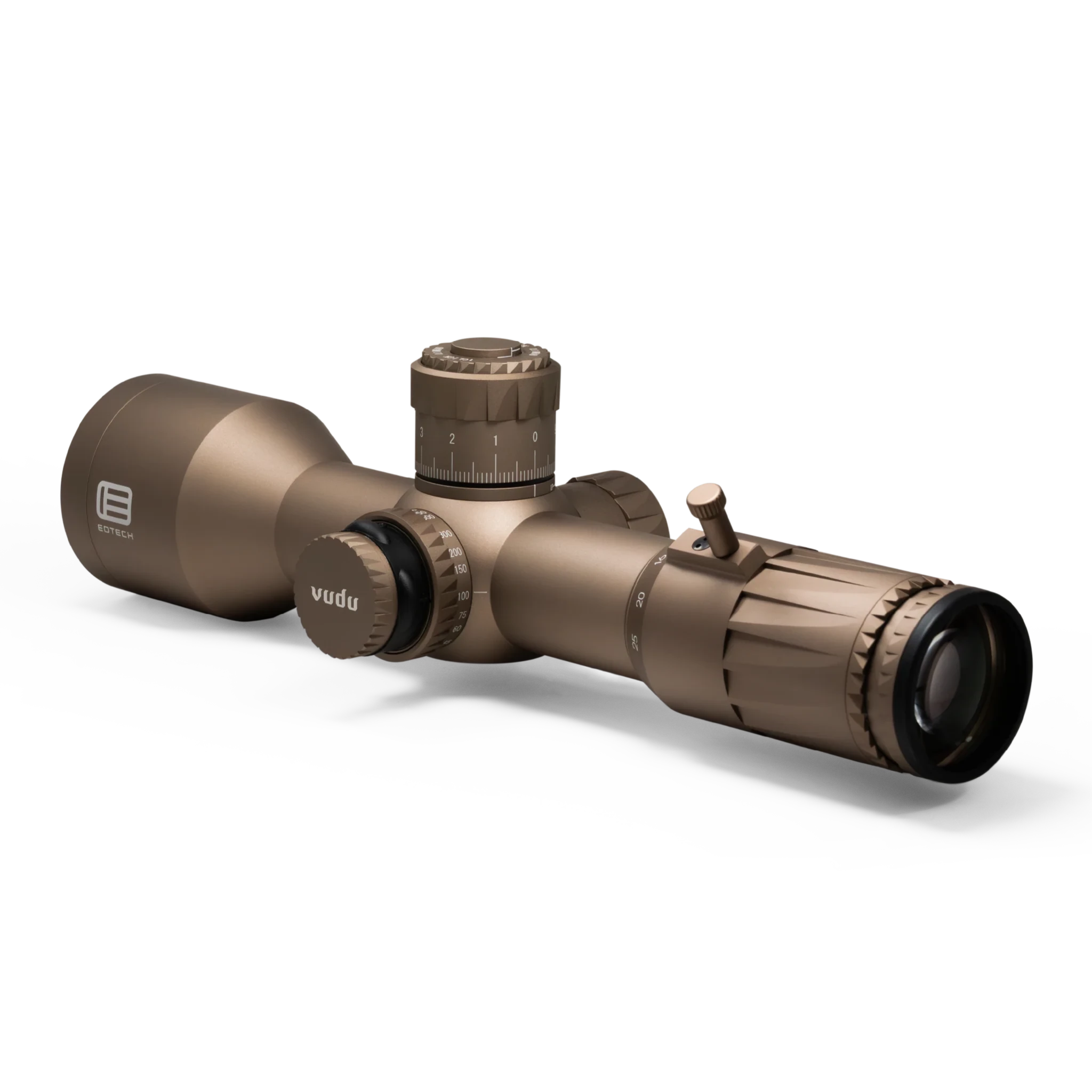

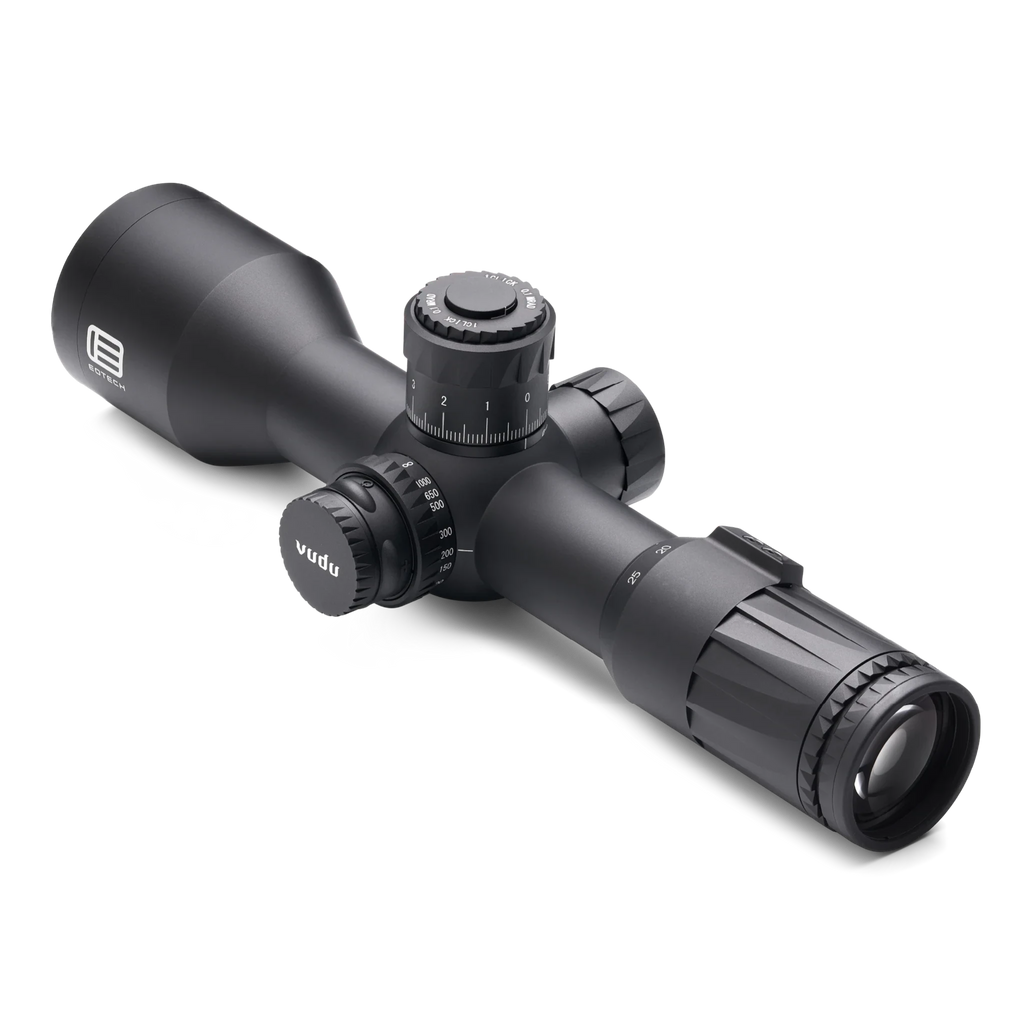

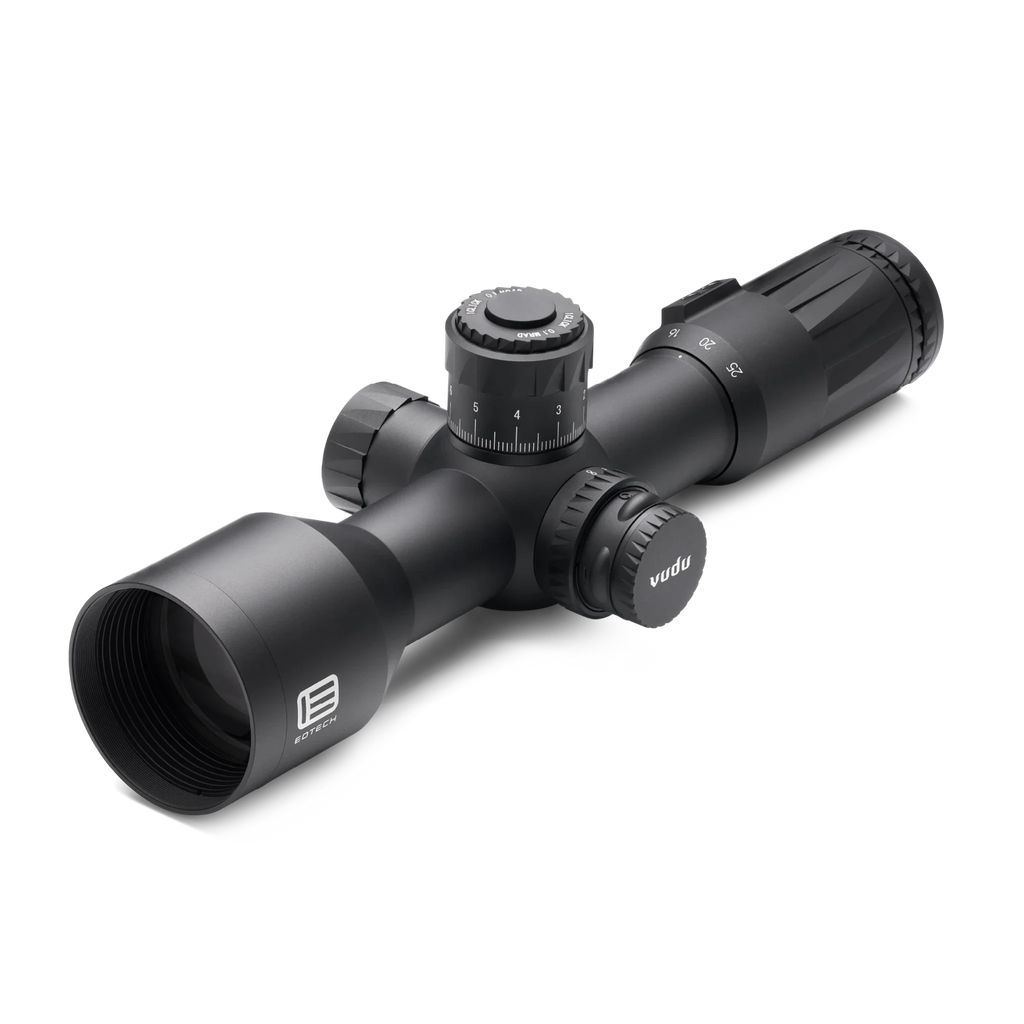

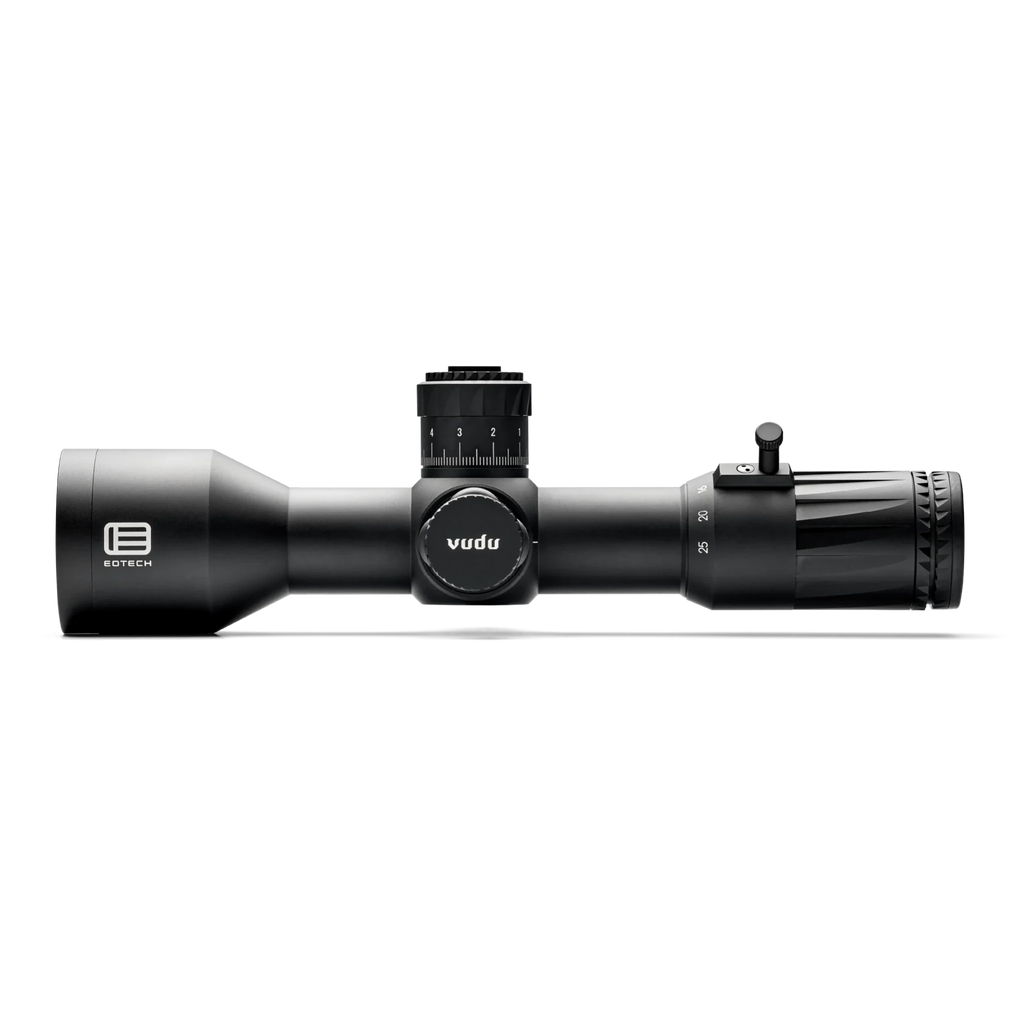

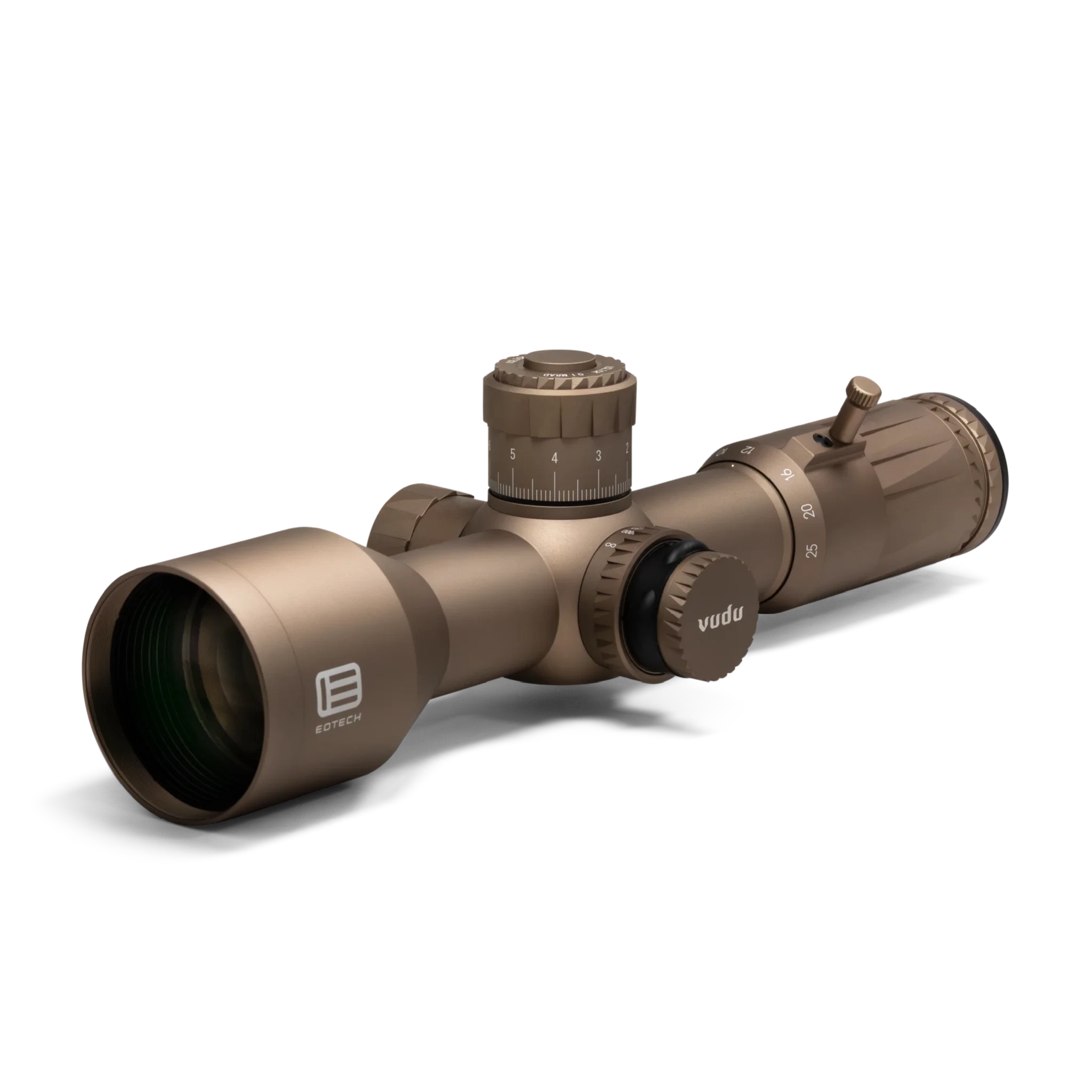

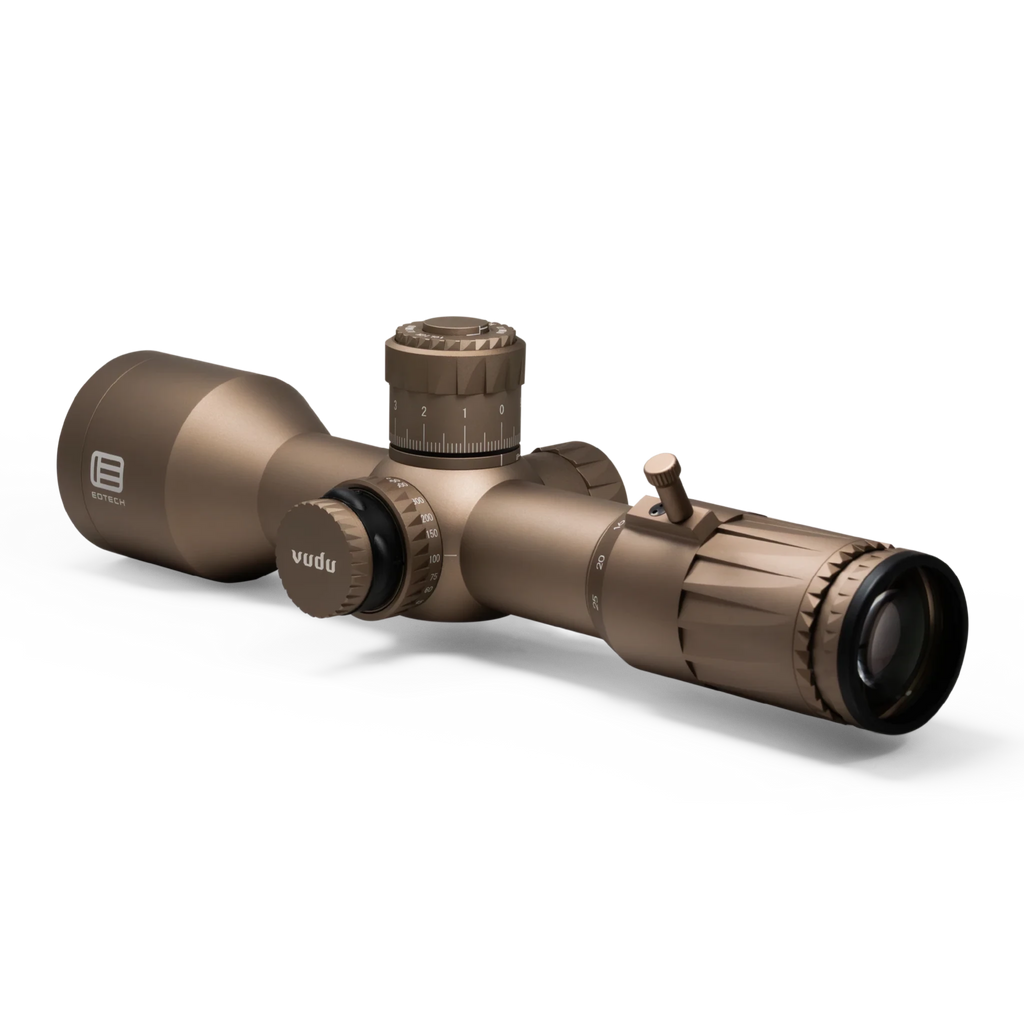

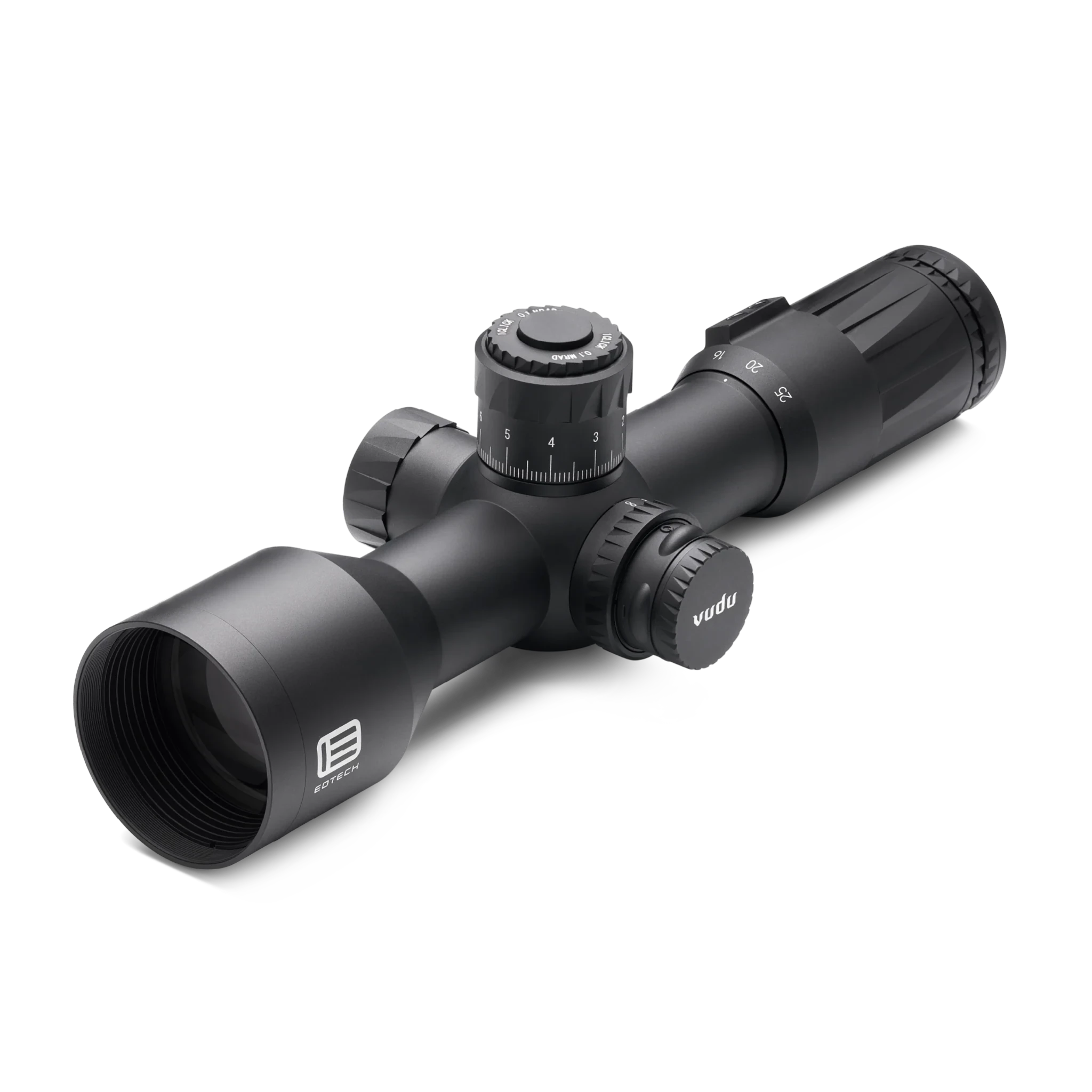

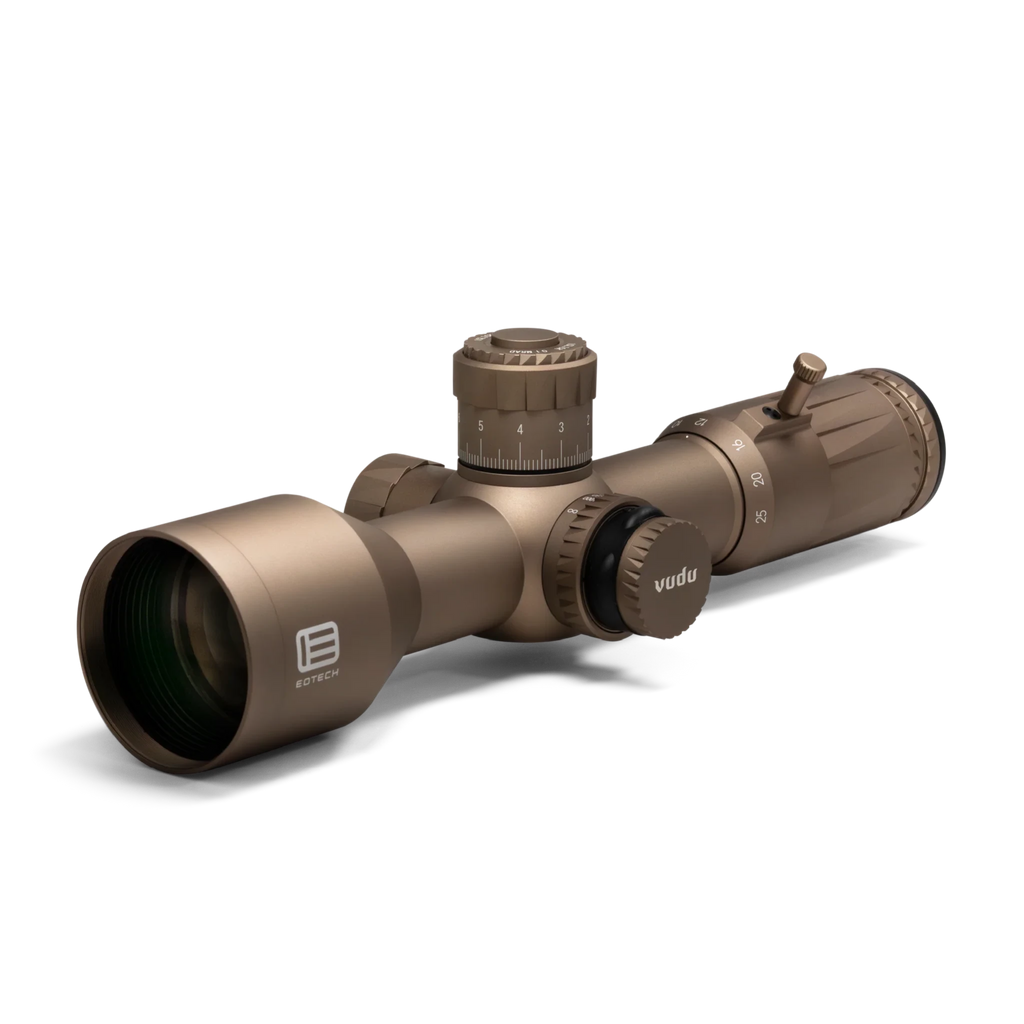

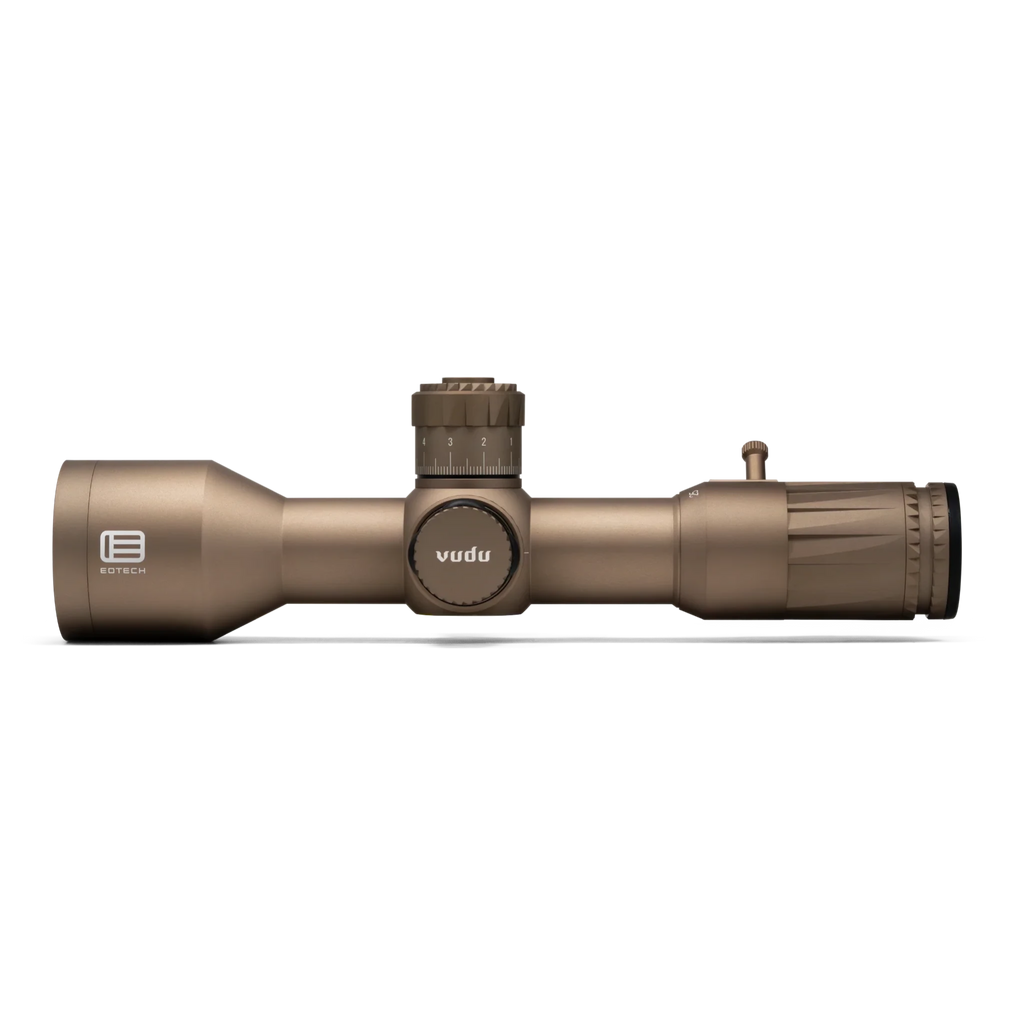

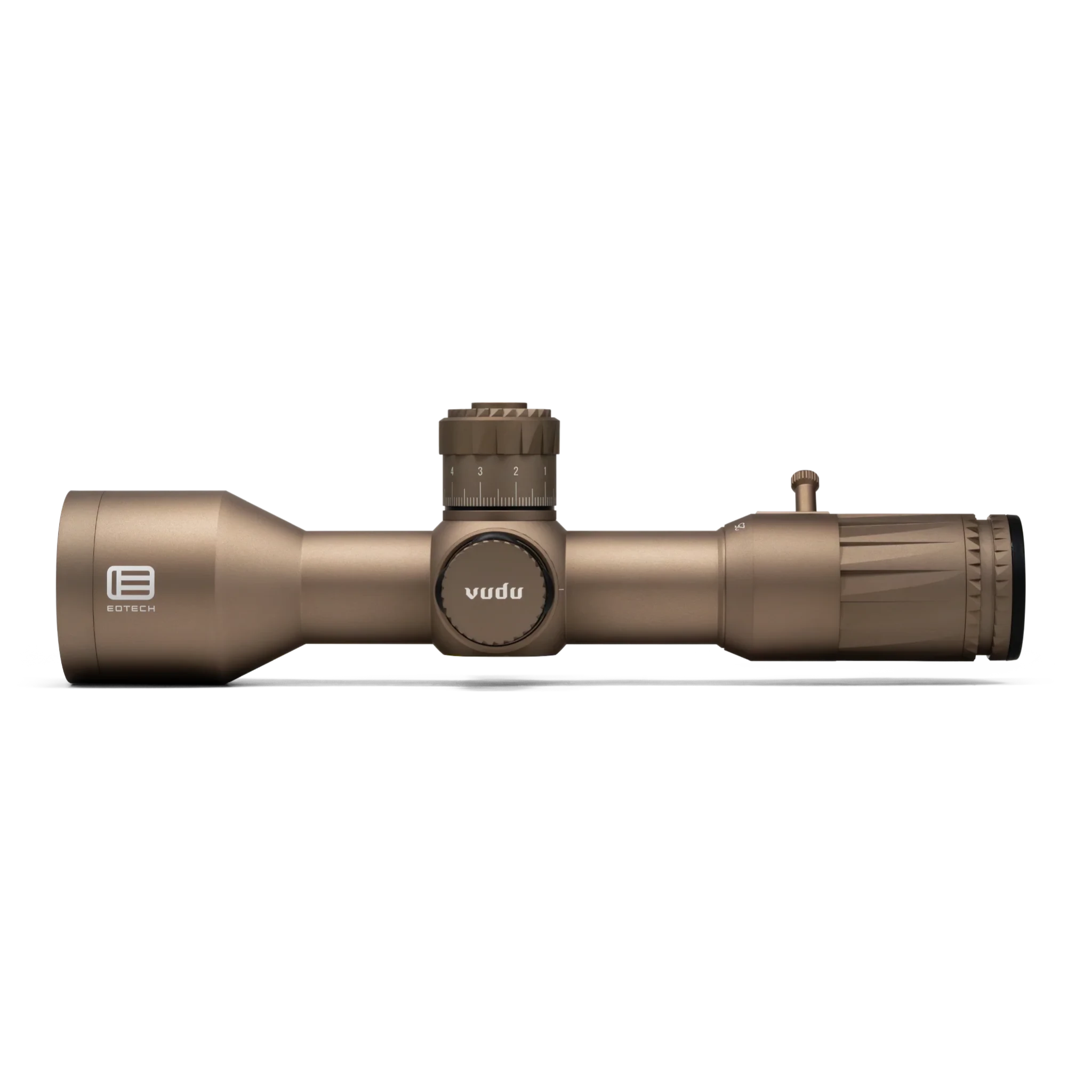

Compact at just 11.2", the Vudu® 5-25x50 is one of the shortest first-focal-plane scopes available. It features a push/pull locking elevation turret with EZ Chek Zero Stop and a short design that allows easy attachment of clip-on night vision or thermal devices.
EOTECH’s FFP Vudu scopes give shooters complete precision across magnification ranges. The scaling reticle ensures reliable ballistic data, while superior glass, construction, and tactical versatility make them a trusted choice for precision and professional use.
Reticles
-
MD3 (MRAD) Utilizing the popular MIL-DOT style pattern, the MD1 was designed to be versatile medium- to long-range reticles. Combined with the resolution and accuracy of the Vudu® First Focal Plane (FFP) riflescope, it will allow you to confidently engage targets in nearly any situation.
One MRAD subtends 10cm at 100 meters (3.6" at 100 yards). The Vudu® 5-25x riflescope with MD3 reticle uses 0.1 MRAD per click adjustments that subtend to 1cm at 100 meters (0.36" at 100 yards).
-
MD4 (MOA) Versatile medium- to long-range reticles. Combined with the resolution and accuracy of the Vudu® First Focal Plane (FFP) riflescope, it will allow you to confidently engage targets in nearly any situation. One MOA subtends 1 inch (1.047" exactly) at 100 yards. The Vudu® 5-25x riflescope with MD2 reticle uses 0.25 MOA per click adjustments that subtend to .25" at 100 yards.
-
Horus® TREMOR5™ The Horus Grid lets you visually place the target on the appropriate horizontal and vertical grid lines to correct for elevation and windage. Combined with the Vudu® First Focal Plane (FFP) riflescope, the Horus® TREMOR5™ reticle allows for fast target engagement at low to mid power, and excellent resolution to precisely engage longer-range targets at higher magnification.
Features
-
AIRCRAFT GRADE ALUMINUM Aircraft-grade aluminum, single-piece construction with anodized finish for extreme durability.
-
FOG & WATER RESISTANT Nitrogen gas purging prevents internal fogging over the operating temperature range, as well as a single-piece tube and O-ring seal out moisture and dust even in the harshest environments.
-
SHOCK RESISTENT Rugged, tactical construction withstands recoil, impact, and hard use. Precision-machined and equipped with premium glass, delivering unwavering performance and durability trusted by professionals worldwide.
-
ANTI-REFLECTIVE LENSES XC™ High-Density, low dispersion glass with anti-reflective coated lenses for unmatched edge-to-edge clarity and true color accuracy, even in low-light or high-glare conditions.
Tech Specs
Overall Length: 11.2" (285 mm)
Weight: 29.5 oz (835 g)
Magnification: 5-25x
Tube Diameter: 34 mm
Objective Diameter: 50 mm
Power Source: CR2032
Eye Relief:
5x: 2.96-3.71" (75-94 mm)
25x: 3.27-3.63" (83-92 mm)
Field-of-View @ 100 Yards:
5x: 23.3 ft (7.1 m)
25x: 4.7 ft (1.43 m)
Country of Origin: Made in Japan
