Description

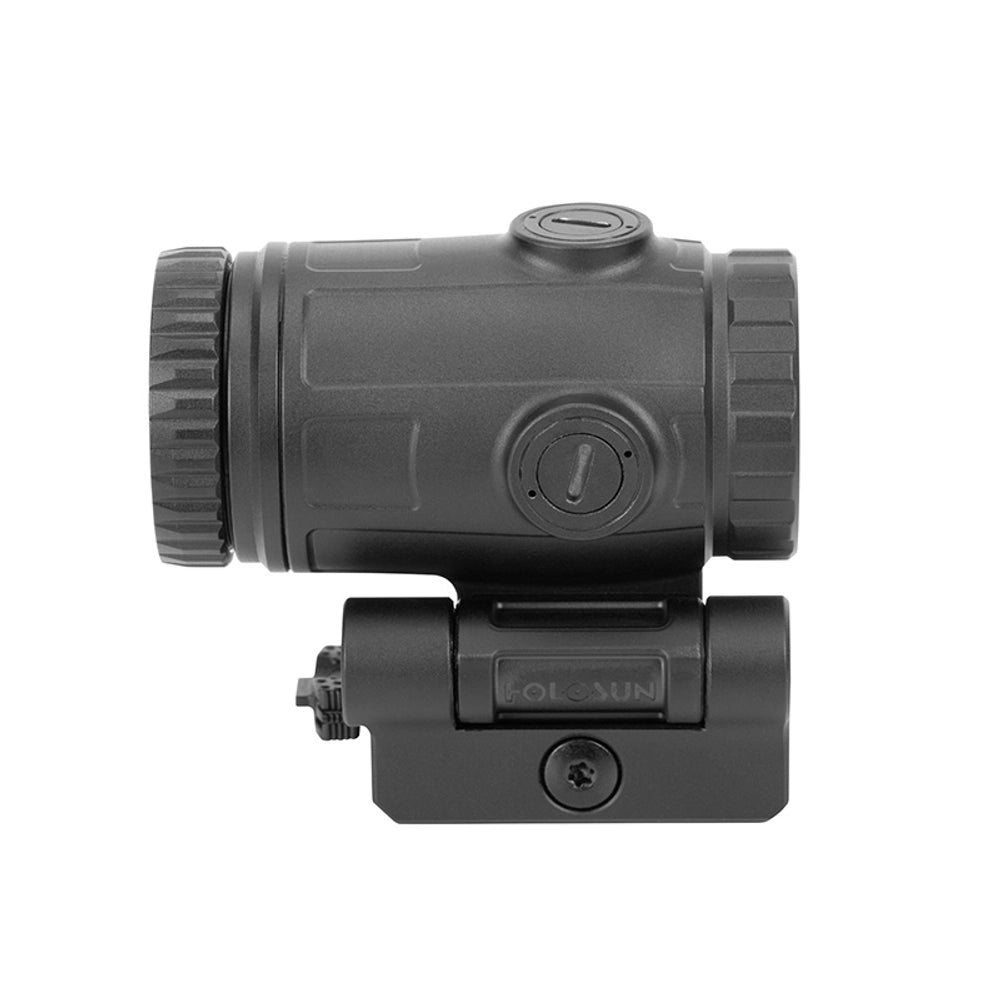

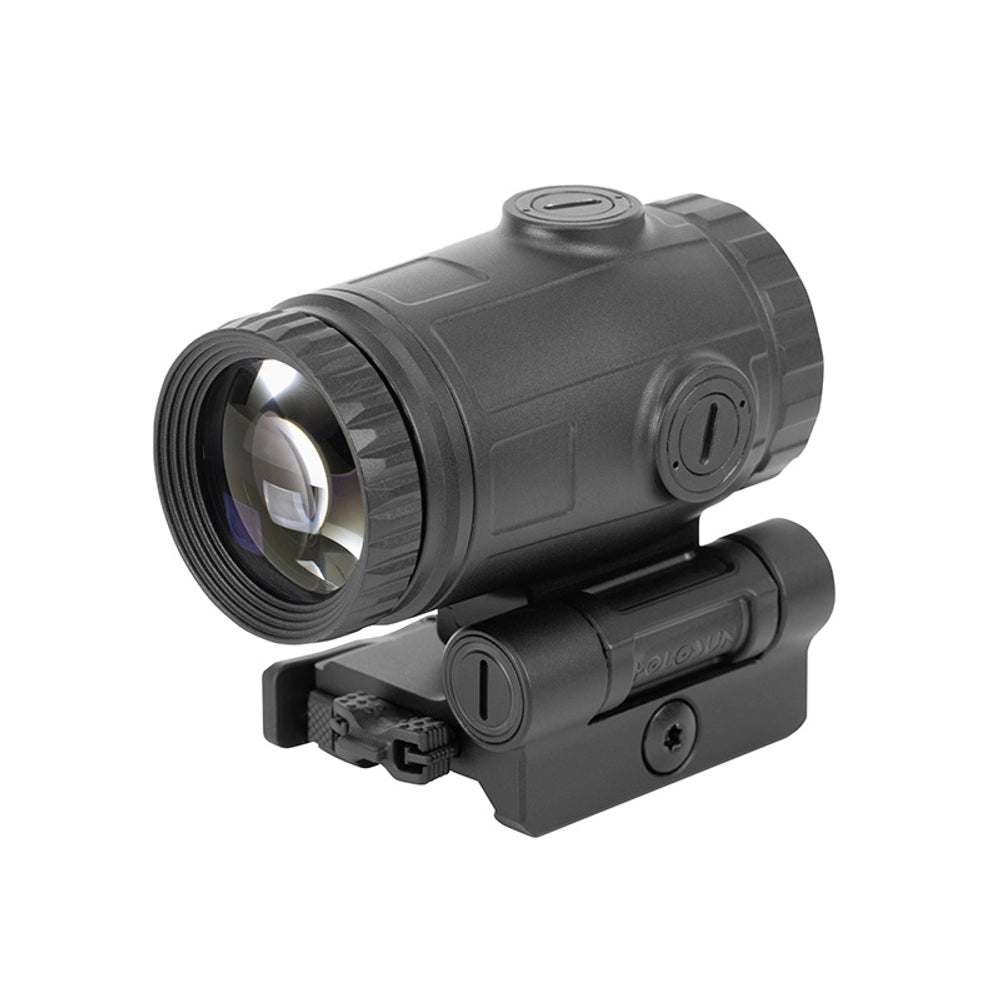

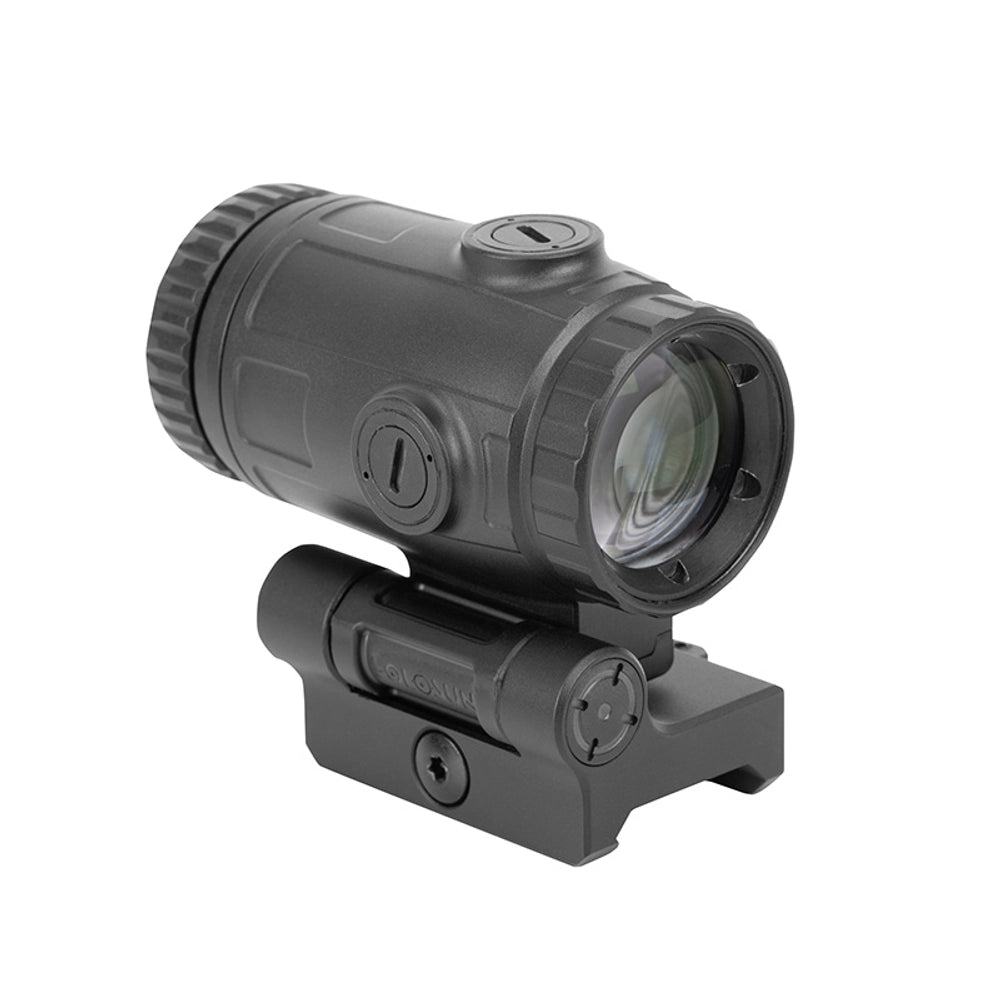

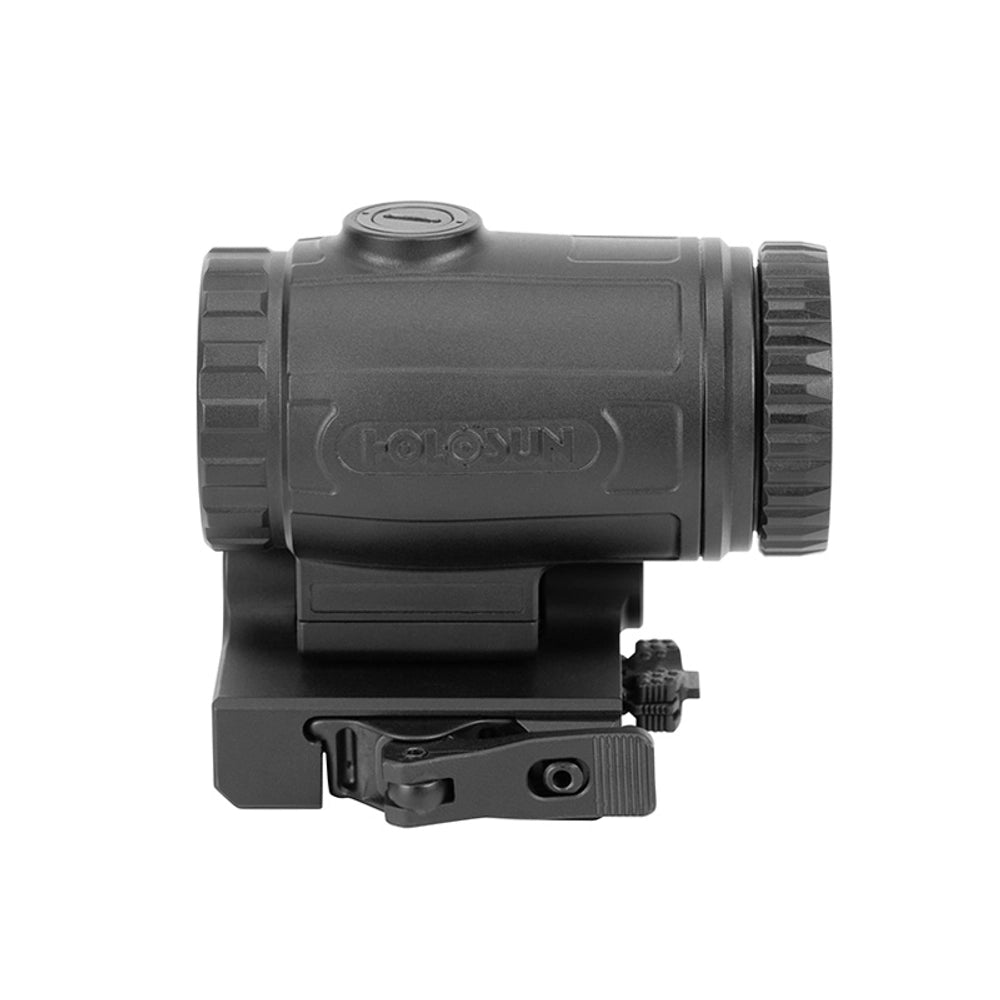

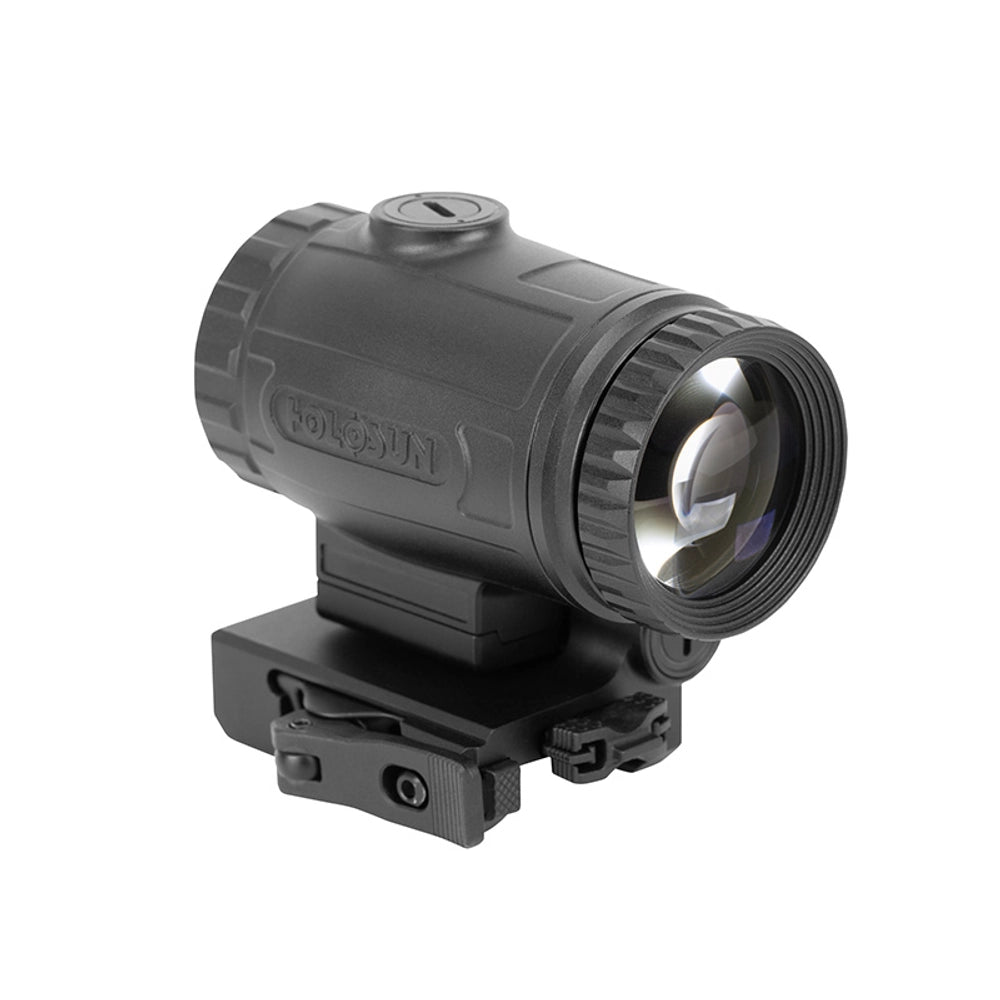

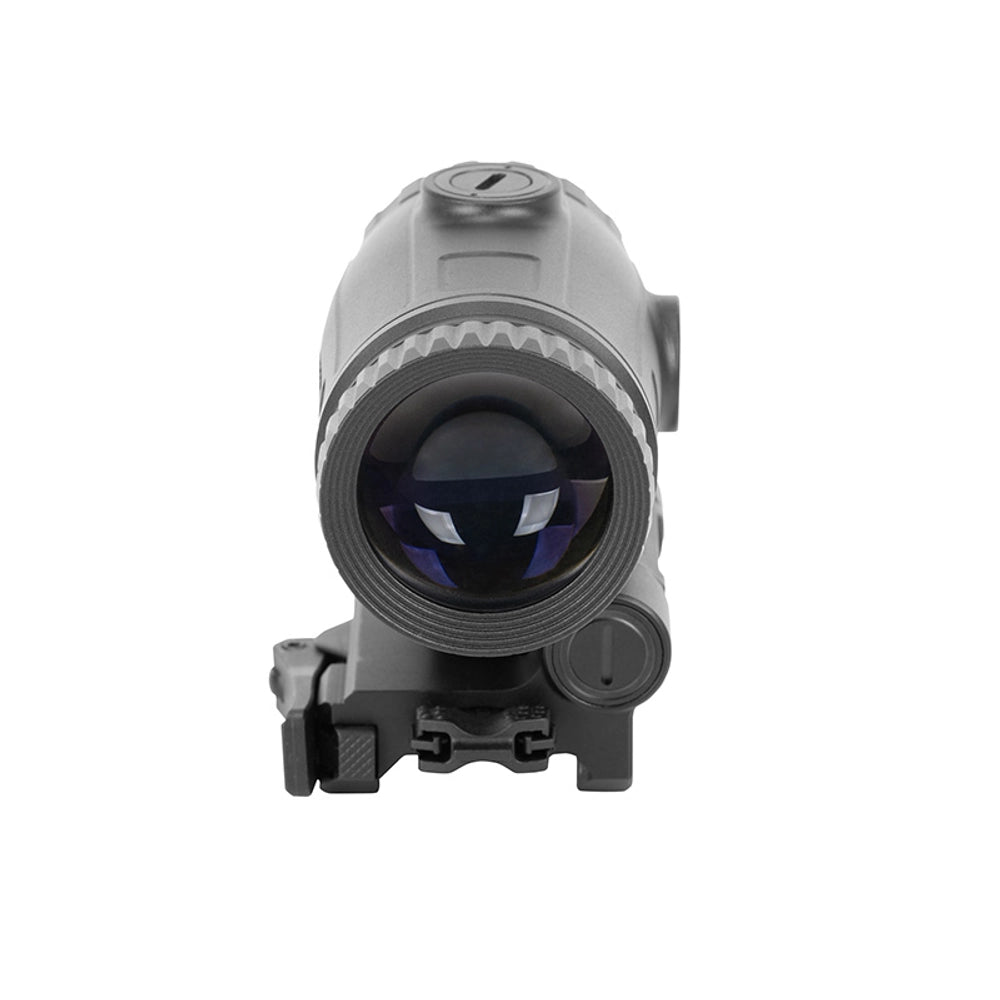

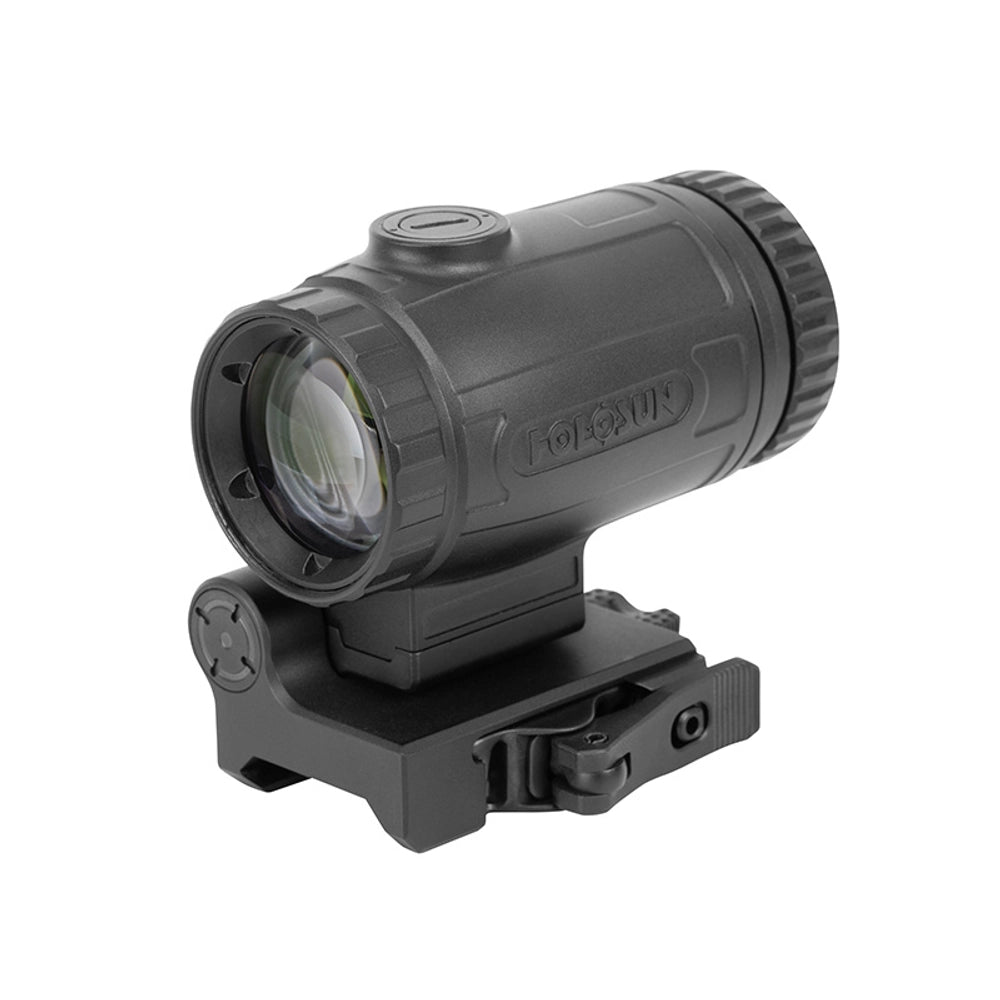

Holosun HM3X-MICRO is a compact 3× magnifier for red-dot sights. It adds reach without the extra weight and length of the standard HM3X. Clear optics, 7° field of view and flip-to-side QD for a fast switch between 1× and 3×.
It ships with both a standard and a cantilever flip-to-side mount, plus a spacer for absolute and lower 1/3 co-witness. Nitrogen-purged, IP67, 7075-T6 aluminum housing. Weight 240 g.
Features
- Compact 3× magnification

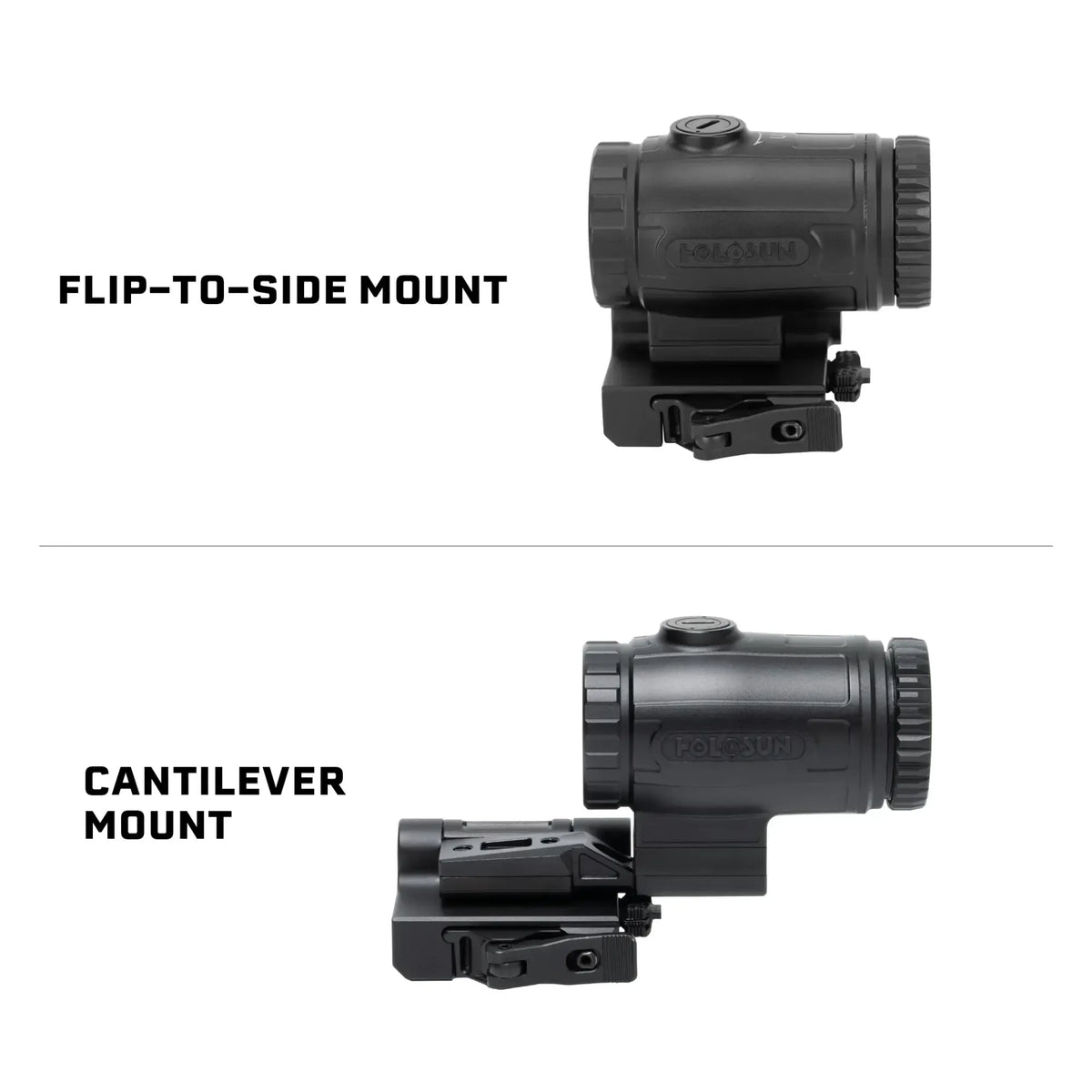

- Flip-to-side QD; standard and cantilever mounts included
- Absolute and lower 1/3 co-witness (spacer included)
- 7° field of view
- 67 mm eye relief
- Adjustable diopter ±3
- Optical glass, 75 % transmission
- Nitrogen-purged, fog-resistant
- IP67
- 7075-T6 aluminum, MAO anodizing
In the box
- HM3X-MICRO
- Lower 1/3 spacer
- Lens cloth
- Tool
- Manual
- Warranty card
Specifications
| Magnification | 3× |
|---|---|
| Exit pupil | 7.1 mm |
| Eye relief | 67 mm |
| Field of view | 7° |
| Diopter | ±3 D |
| Transmission | 0.75 (75 %) |
| Lens | Optical glass |
| Housing | 7075-T6 aluminum |
| Finish | MAO |
| Color | Black |
| Flip-to-side | Yes |
| Cantilever flip-to-side | Yes |
| QD mount and spacer | Included |
| Co-witness | Absolute and lower 1/3 |
| Rail | Picatinny |
| Mount center height | 1.41 / 1.63 in (35.8 / 41.4 mm) |
| Body dimensions | 2.76 × 2.44 × 1.81 in (70.1 × 62.0 × 46.0 mm) |
| Weight | 8.47 oz (240 g) |
| Waterproof | IP67 |
| Vibration | 1000 G |
| Operating temperature | −30 °C to +60 °C |
| Storage temperature | −40 °C to +70 °C |
