Description

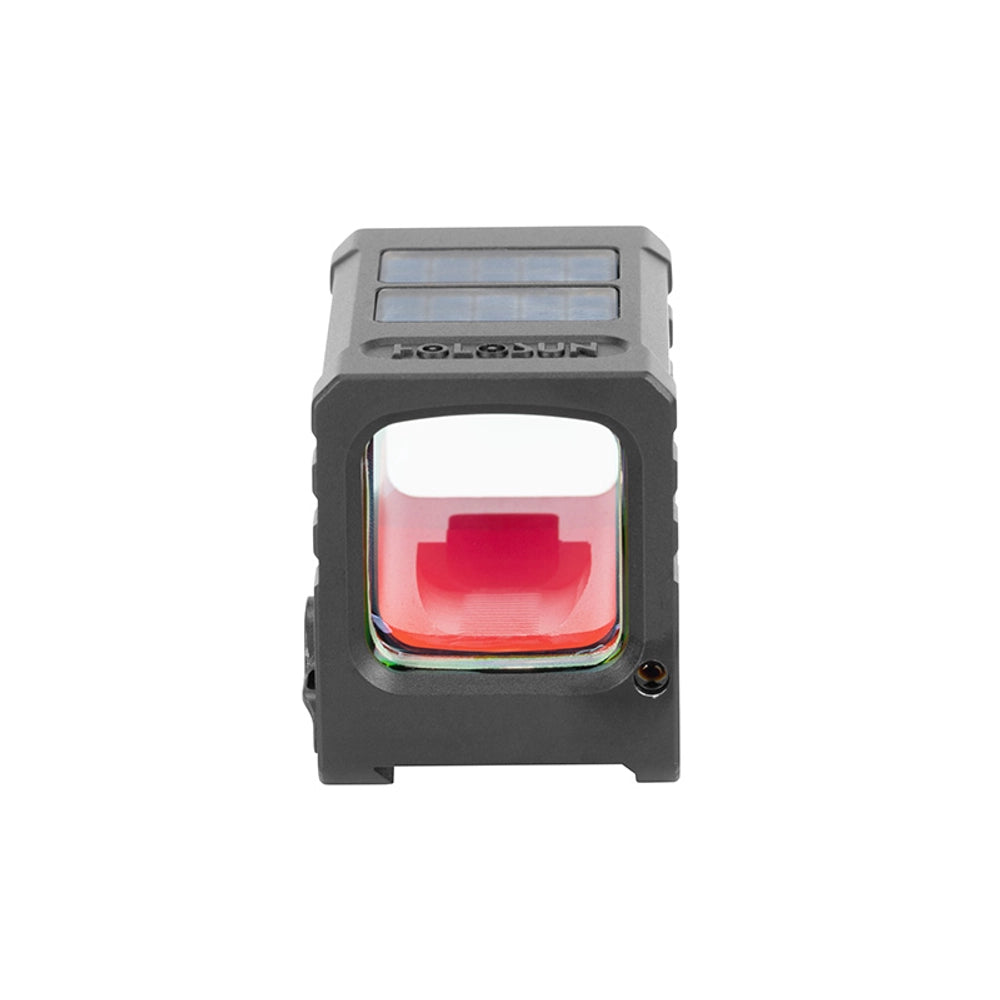

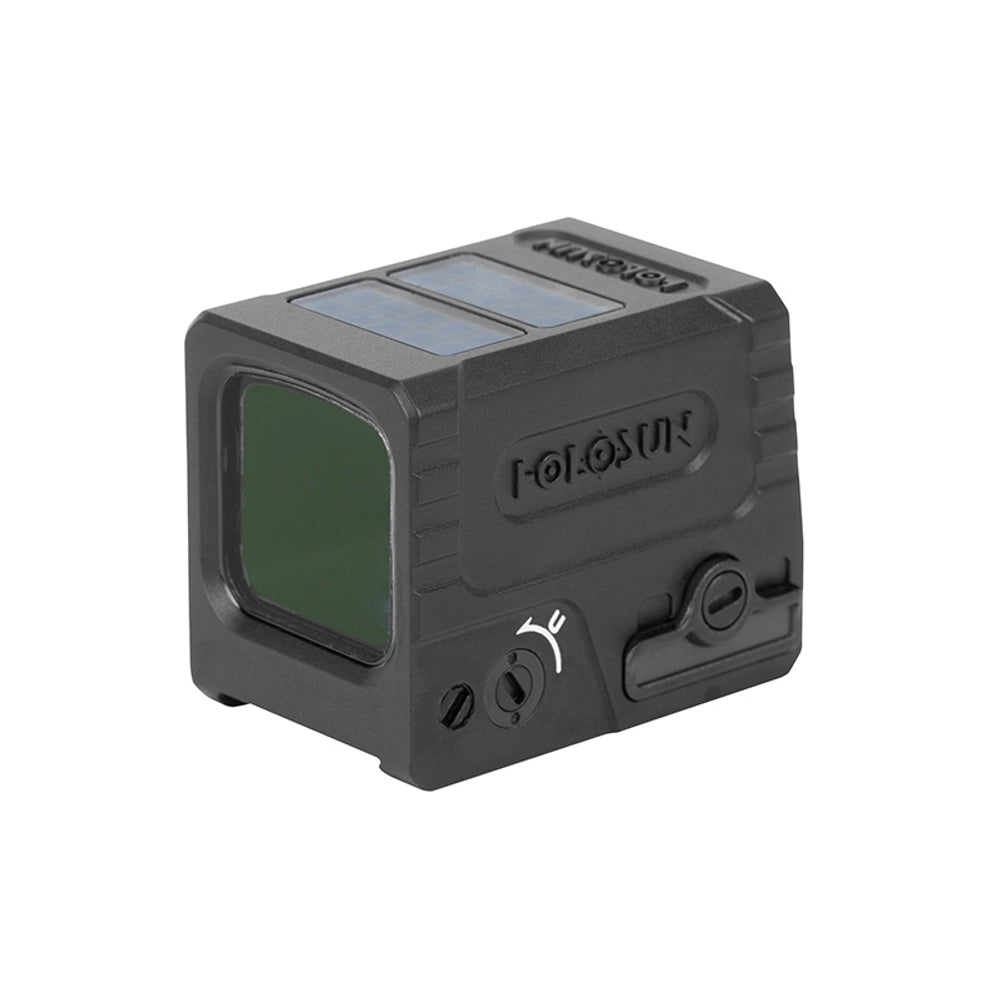

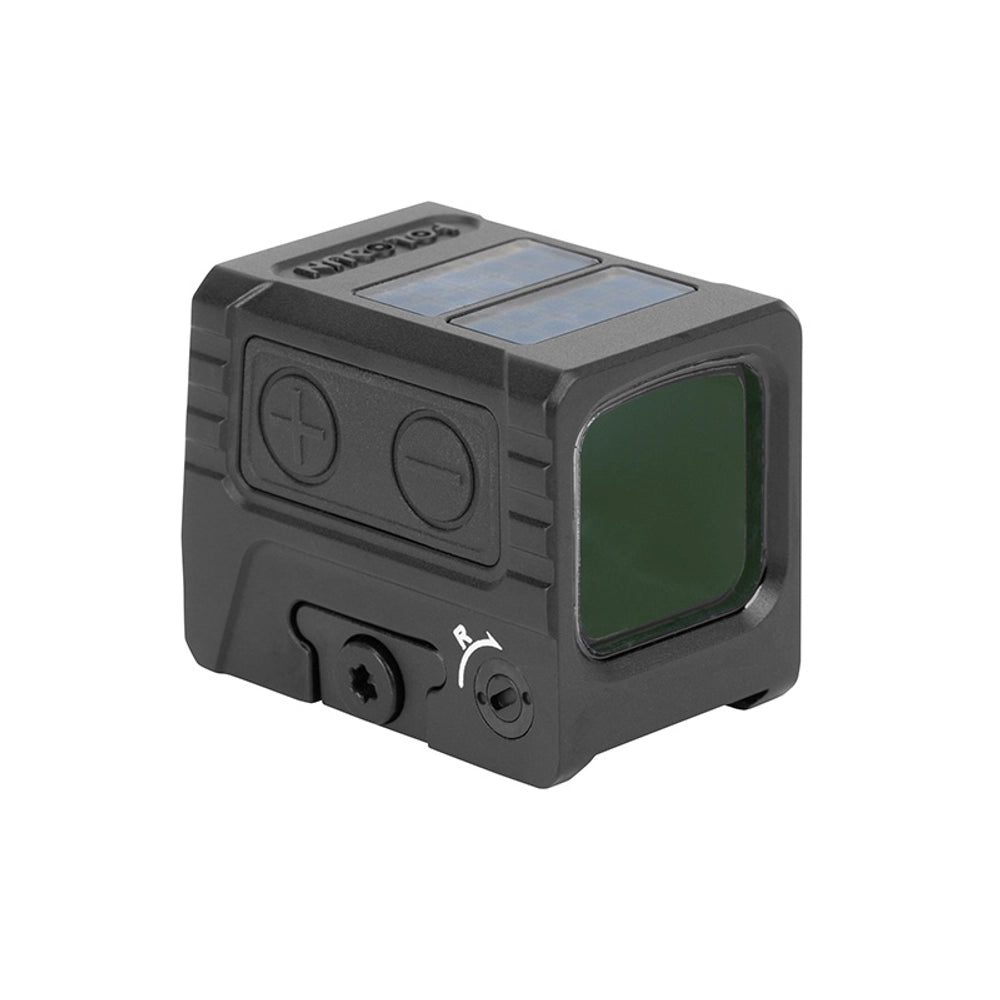

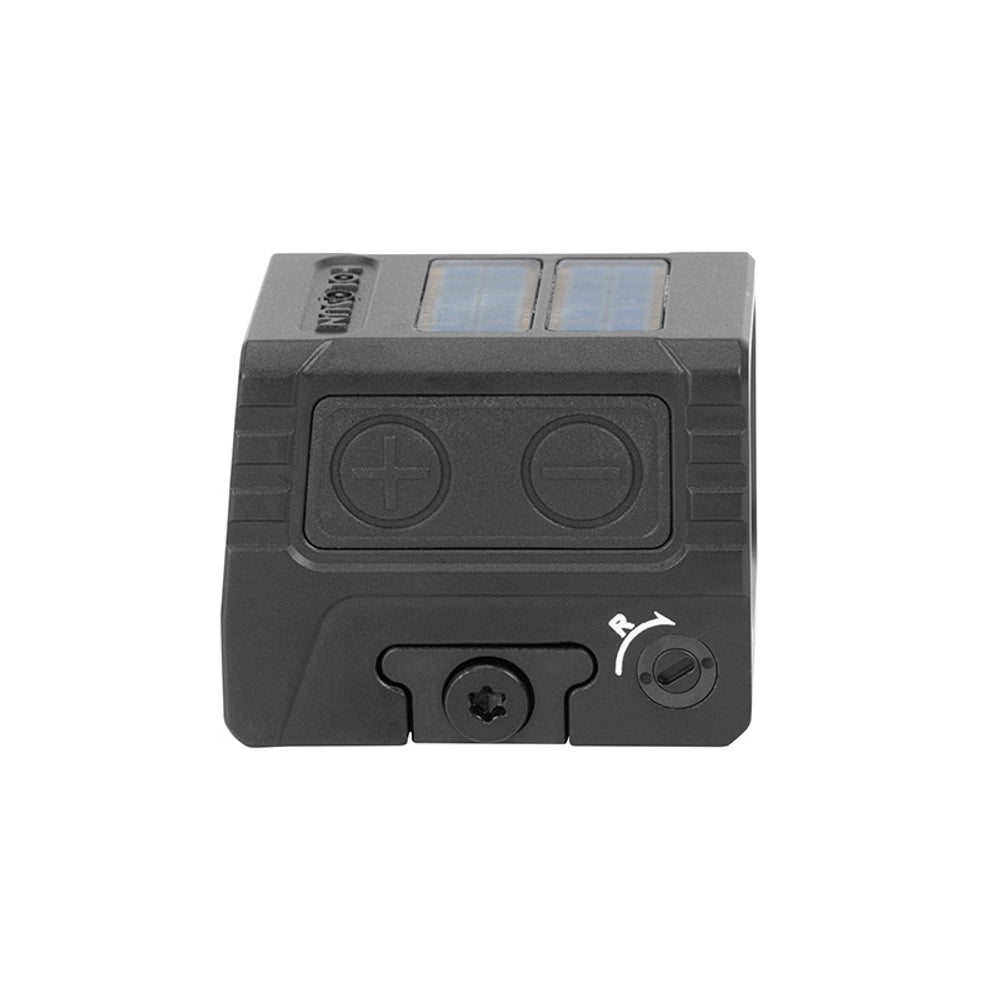

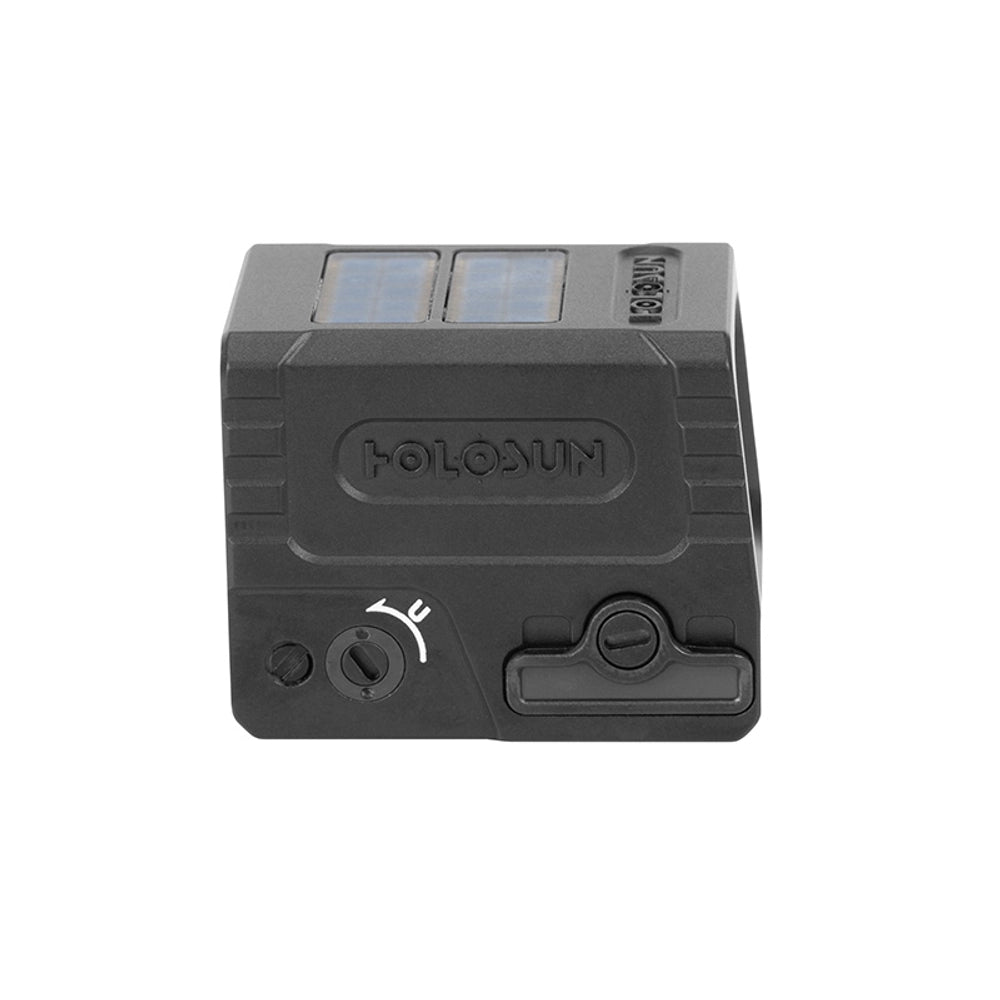

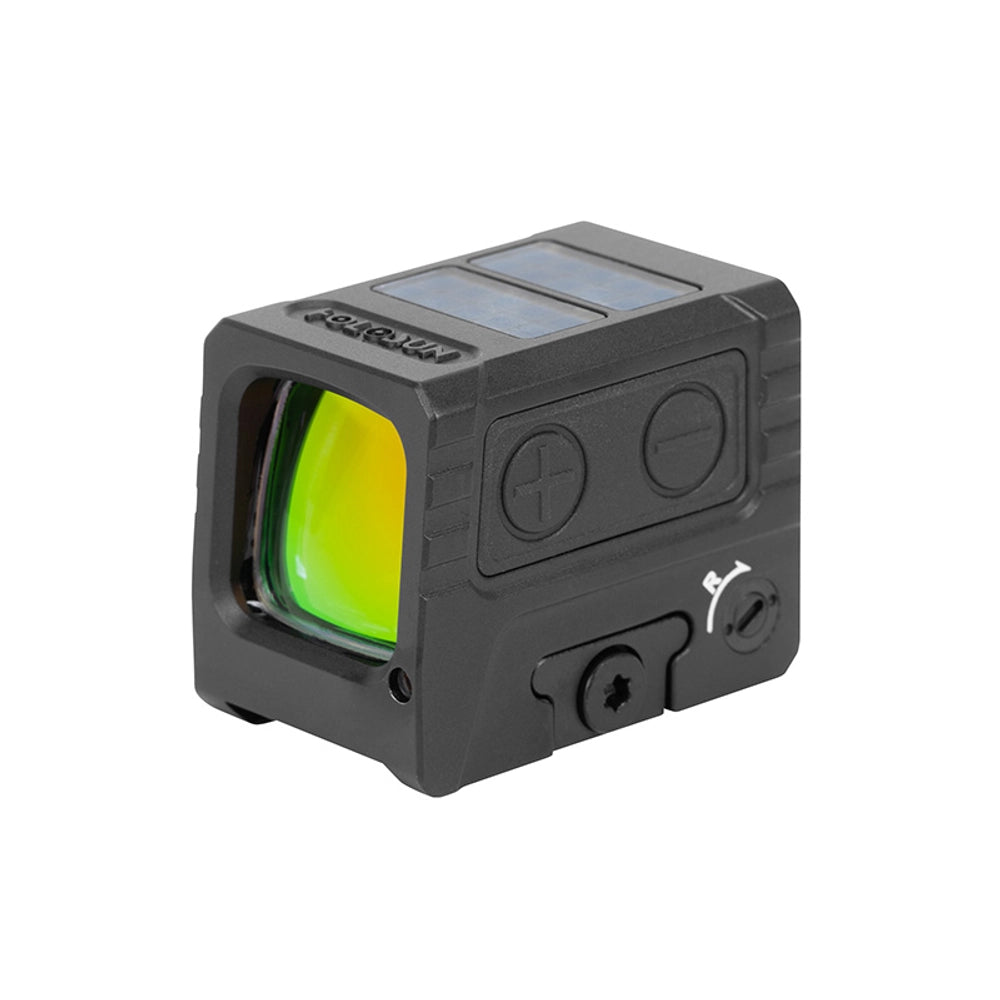

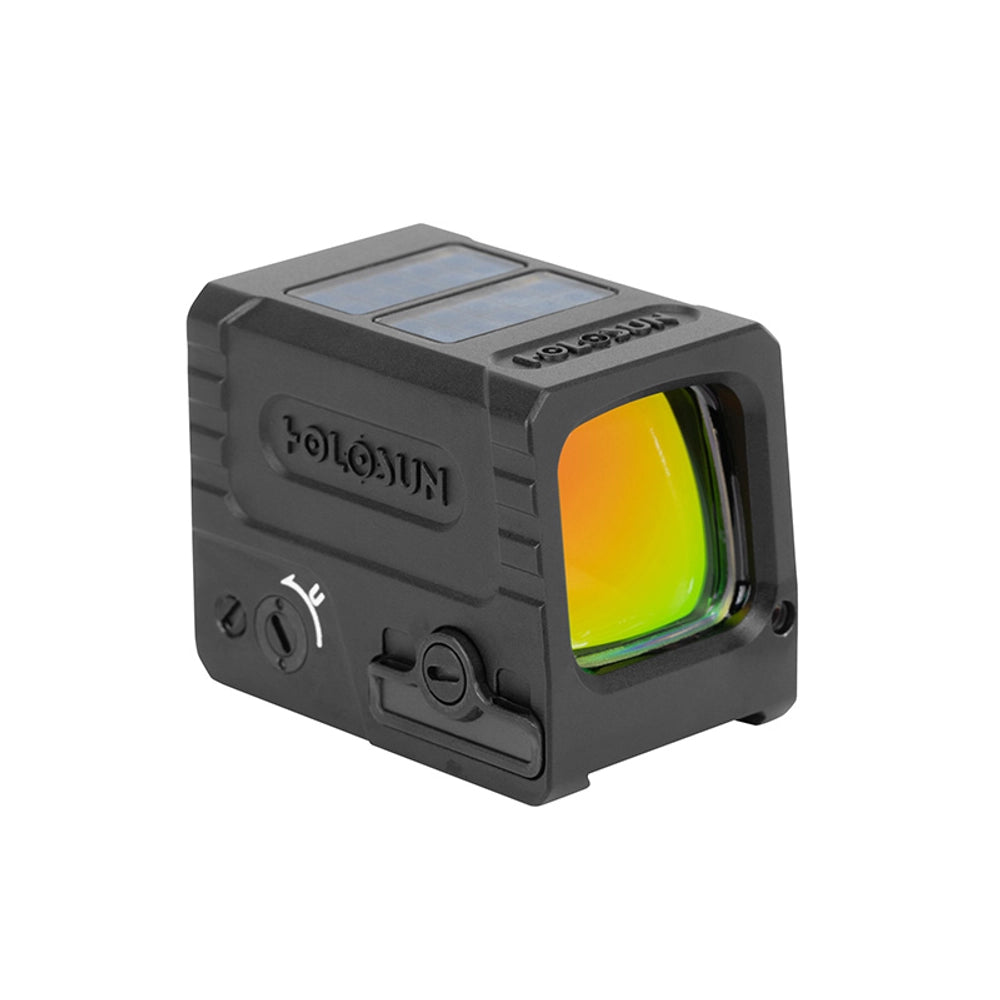

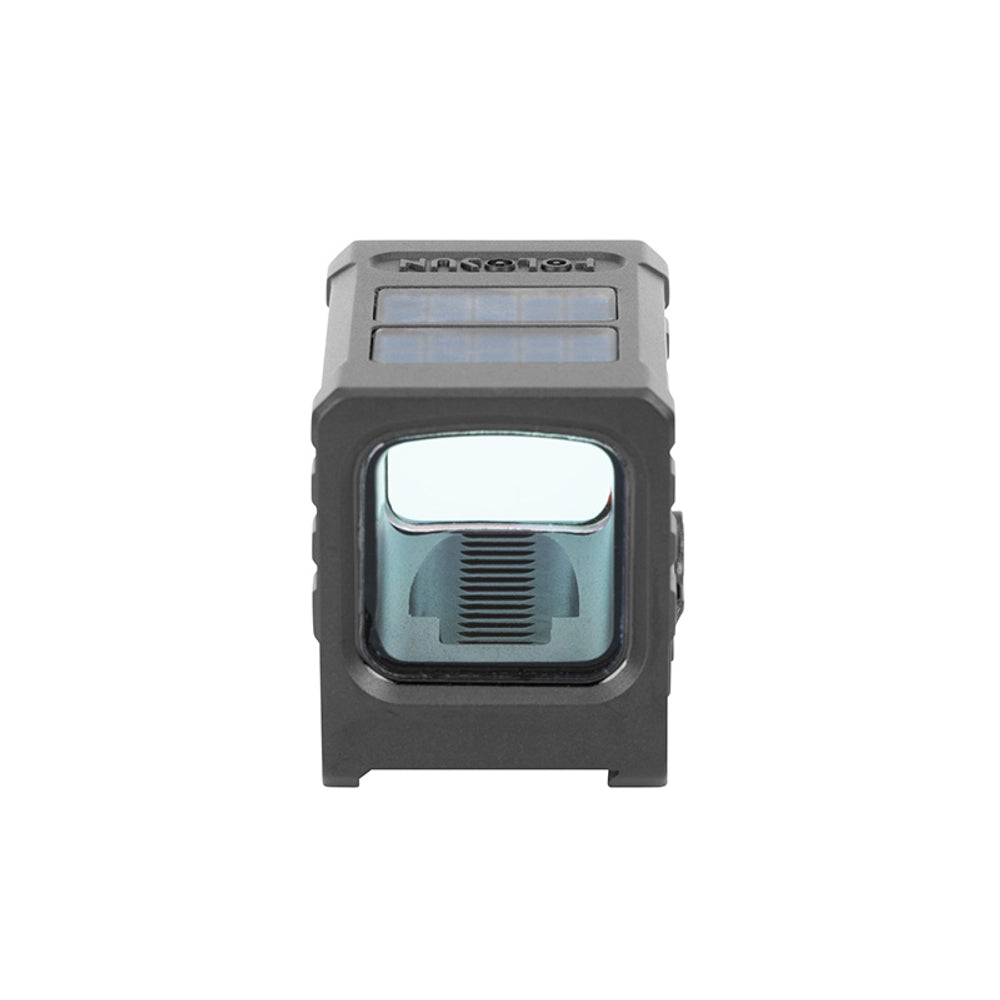

Holosun AEMS MICRO is an enclosed micro reflex sight for pistols. It combines the AEMS concept — enclosed emitter and compact window — with a small footprint designed for modern slide cuts.
The sight is available with a red (RD), green (GR) or gold (GD) reticle.
Large micro window
The window is approx. 18 × 18 mm (0.71 × 0.71") — a lot of glass in a micro format, so the dot is easier to pick up without making the optic large.
Multi-Reticle System (MRS)
Choose the reticle for the task:
- 2 MOA dot
- 32 MOA circle
- or dot + circle
AEMS-MICRO-RD: Red LED, 650 nm.
AEMS-MICRO-GR: Green LED, 540 nm.
AEMS-MICRO-GD: Gold LED.
Features
- Solar Failsafe: solar cell supports operation and extends battery life
- Automatic brightness (front sensor) and manual
- CR1620 in a side tray — change without removing the optic
- Up to 100,000 hours
- Shake Awake, auto off and memory
- Lockout mode
- 8 daylight + 4 night-vision settings
Construction
- Hard-anodized 7075-T6 aluminum
- IPX8 waterproof
- 5000 G shock resistance
- 1x, parallax-free, unlimited eye relief
- Click value 1 MOA, adjustment range ±30 MOA
- Proprietary AEMS-MICRO footprint; RMSc adapter included
- Weight approx. 60 g (2.1 oz)
- Dimensions approx. 38 × 25 × 30 mm (1.5 × 1.0 × 1.2")
- Central mounting height approx. 16 mm (0.63")
In the box
- AEMS-MICRO sight
- RMSc-to-AEMS-MICRO adapter
- Lens cloth
- Tool
- Manual
- Warranty card
AEMS MICRO suits shooters who want an enclosed pistol optic in a micro format with a choice of red, green or gold MRS reticle, solar backup and long battery life.
Specifications
| Features | |
|---|---|
| Selectable reticle (MRS) | Yes |
| Solar | Yes |
| Shake Awake | Yes |
| Auto off | Yes |
| Memory | Yes |
| Manual brightness | Yes |
| Automatic brightness | Yes |
| Lockout mode | Yes |
| Optics | |
| Light source | LED |
| Wavelength | 650 nm |
| Reticle | 2 MOA dot and 32 MOA circle |
| Magnification | 1x |
| Parallax | No |
| Unlimited eye relief | Yes |
| Multi-coatings | Yes |
| Electronics | |
| Battery | CR1620 |
| Battery life | 100,000 hours |
| Brightness | 8 daylight + 4 NV |
| Removable battery | Yes |
| Battery location | Side tray |
| Mechanics | |
| Housing | 7075-T6 aluminum |
| Finish | Hard anodized |
| Color | Black |
| Click value | 1 MOA |
| W/E travel | ±30 MOA |
| Storage temperature | −40 °C to +70 °C |
| Operating temperature | −30 °C to +60 °C |
| Rating | IPX8 |
| Shock | 5000 G |
| Physical | |
| Window | 18 × 18 mm |
| Body (L × W × H) | 38 × 25 × 30 mm |
| Body weight | 60 g |
| Central mount height | 16 mm |
