Description

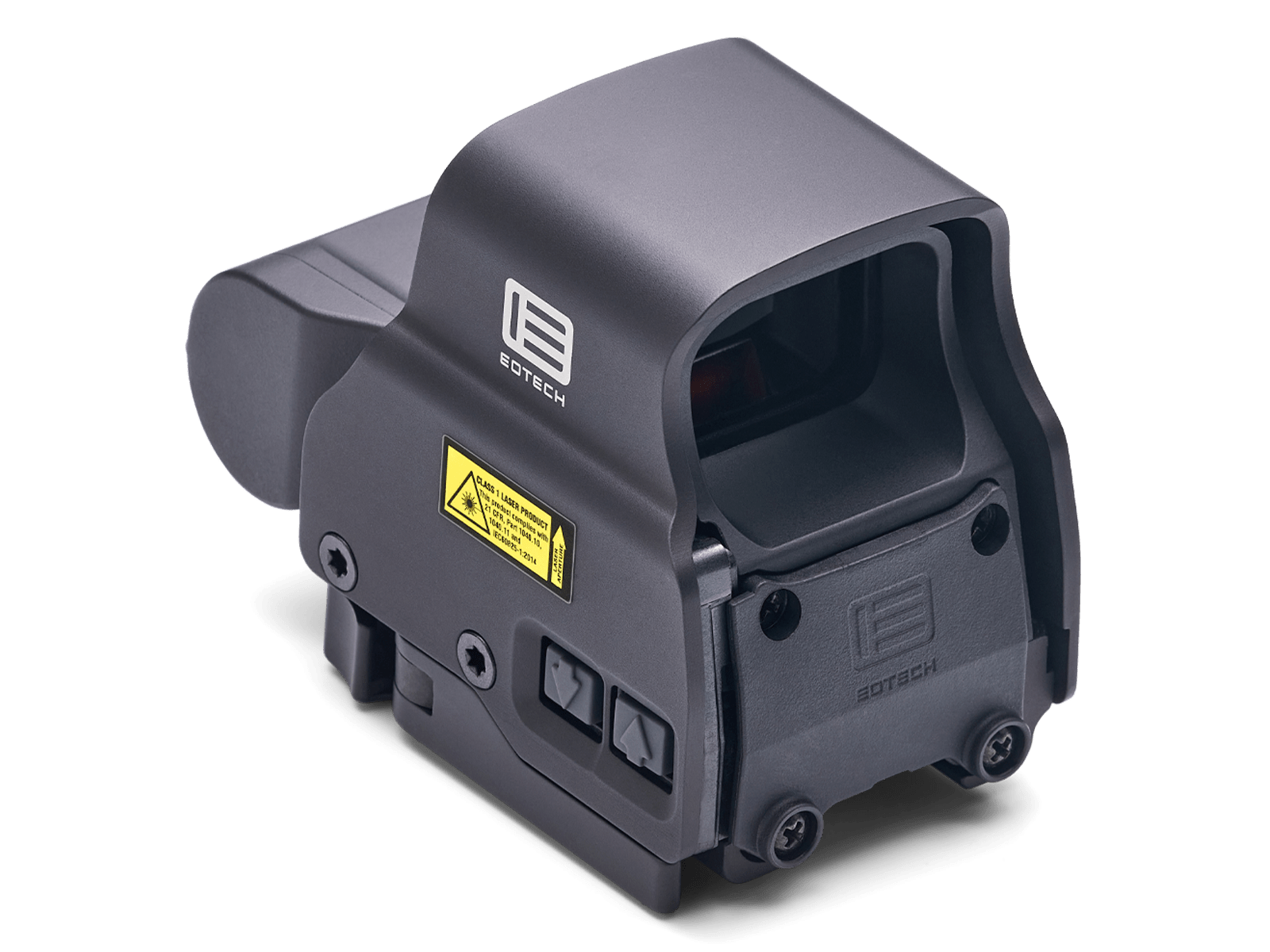

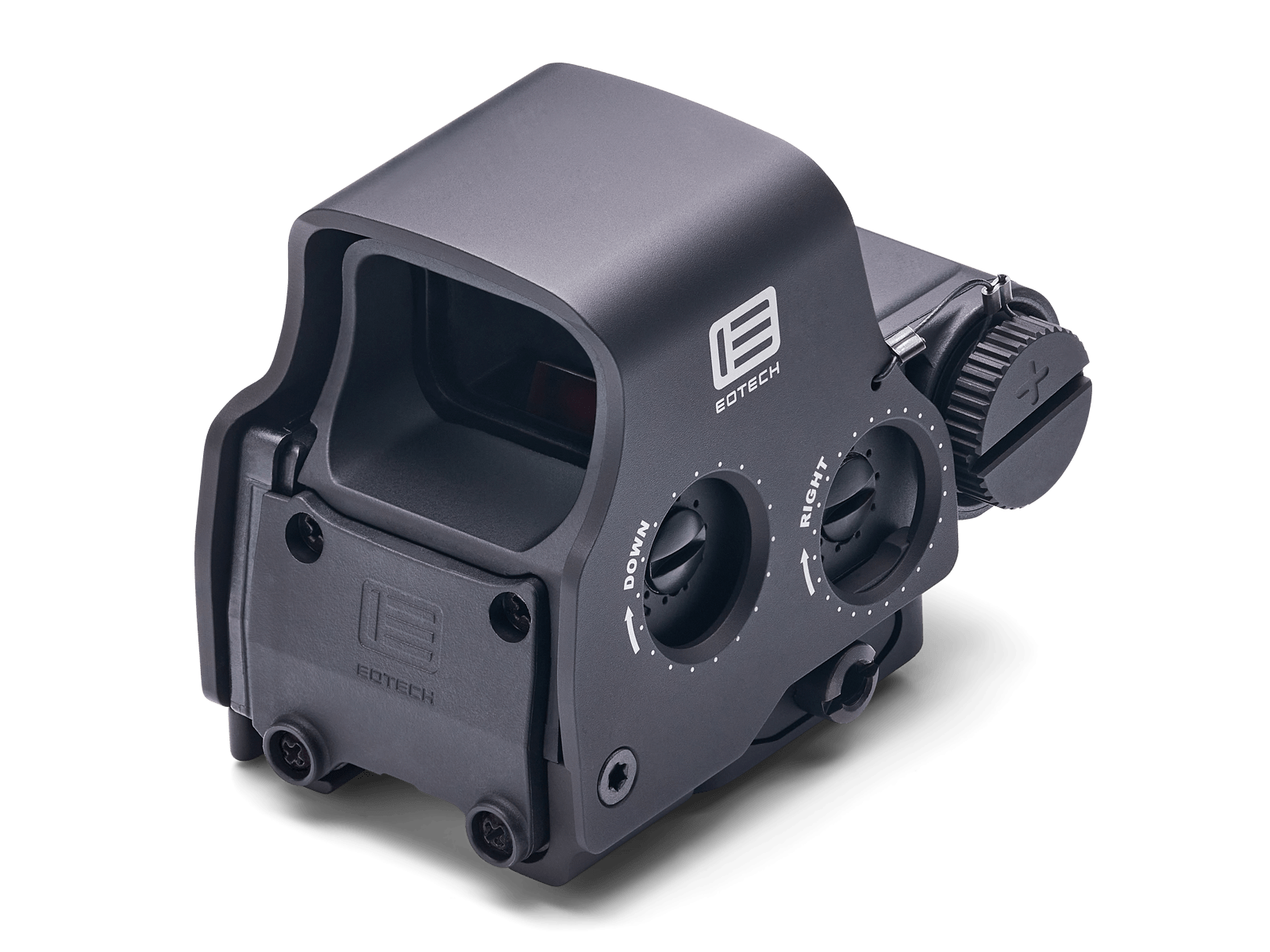

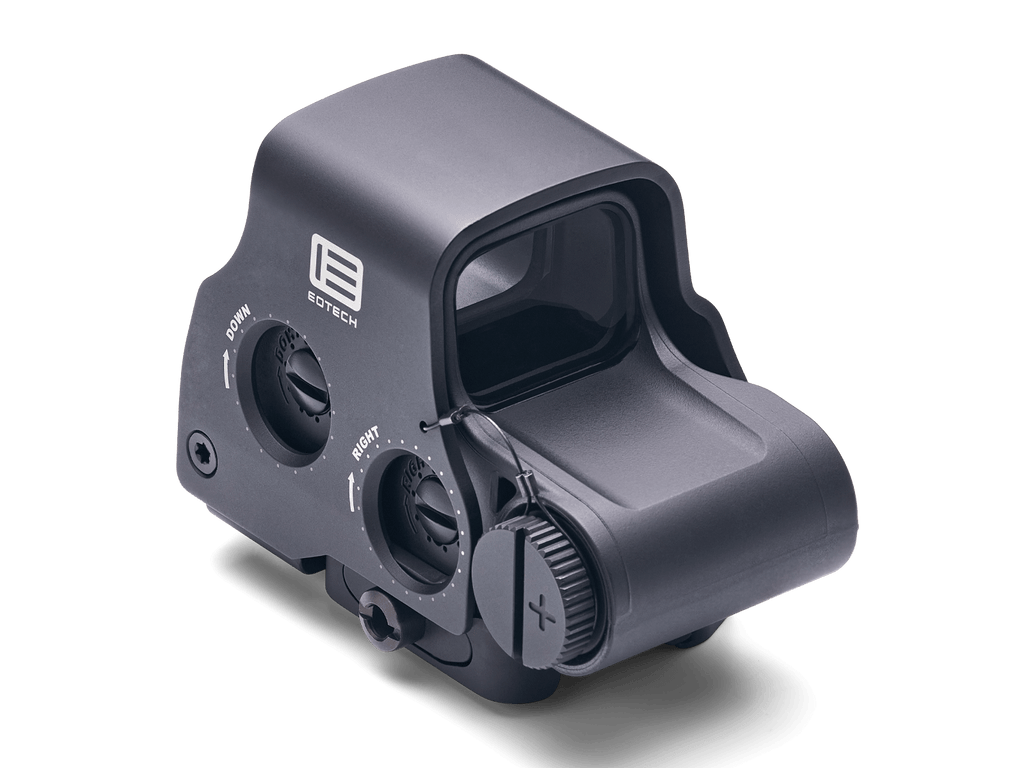

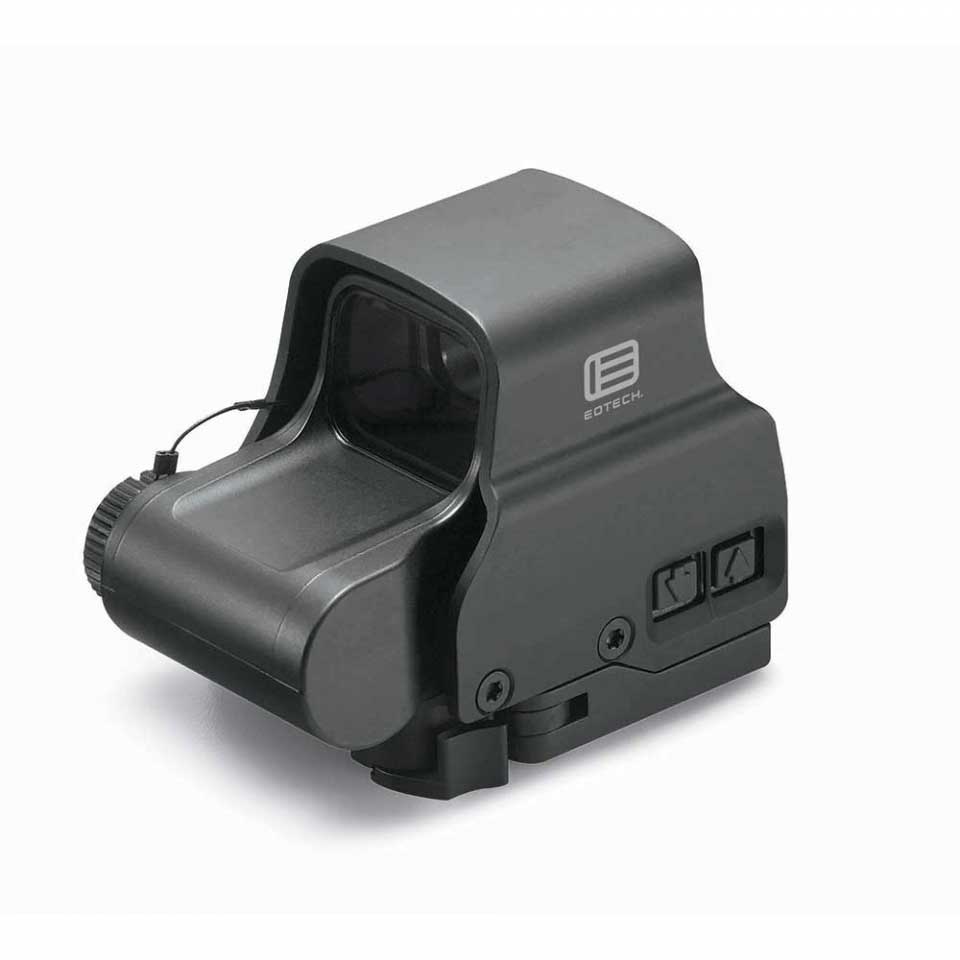

The HWS EXPS2™ maximizes rail space with its compact design and provides co-witnessing with iron sights. Convenient side buttons make it simple to pair with a magnifier, while its adjustable, locking quick-detach lever ensures fast, secure attachment and easy removal for ultimate versatility.
EOTECH HWS® optics use advanced holography—not LED projection—to deliver a faster, clearer, and more accurate sight picture. Designed for speed, precision, and situational awareness that standard red dots can’t match.
Reticles

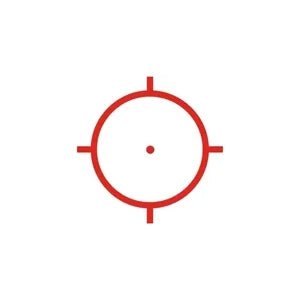

The 1-Dot reticle features a 68 MOA speed ring with a 1 MOA dot for fast target acquisition and provides three aiming points, calibrated for .223 Cal. 62 Gr., 2,900 Vel. Other calibers can be used by determining the ranges. With shotguns, the ring approximates shot patterns, which vary based on choke and shell type.

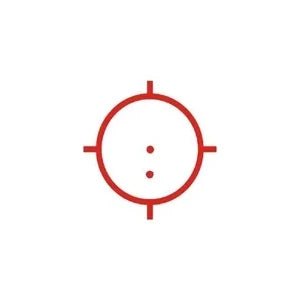

The two-dot reticle includes a 68 MOA speed ring with 2 MOA dots and is easily distinguishable with or without magnification. Calibrated for .223 Cal. 62 Gr., 2,900 Vel. with options for other loads and calibers.
The 1-Dot Green reticle is 6x easier to see than red. The 68 MOA speed ring with a 1 MOA dot enables fast target acquisition and provides three aiming points, calibrated for .223 Cal. 62 Gr., 2,900 Vel.
Tech Specs
L × W × H: 3.8" x 2.3" x 2.9" (96.5 x 58.4 x 73.7 mm)
Weight: 11.2oz (317.5g)
Mount: 1" Weaver or MIL-STD-1913 rail
Windage & Elevation Adjustment: 0.5 MOA per click
Night Vision Compatibility: No
Brightness: 20 daylight settings
Power Source: 1 x CR123 battery
Country of Origin: Made in USA
Performance
Water Resistant: 10 ft. (3 m) depth
Battery Life: 1,000 continuous hours at nominal setting 12 at room temperature
*600 for green reticle
Operating Temperate: -40°F to 140°F (-40°C to 60°C)
Sealing: Fog resistent internal optics
