Description

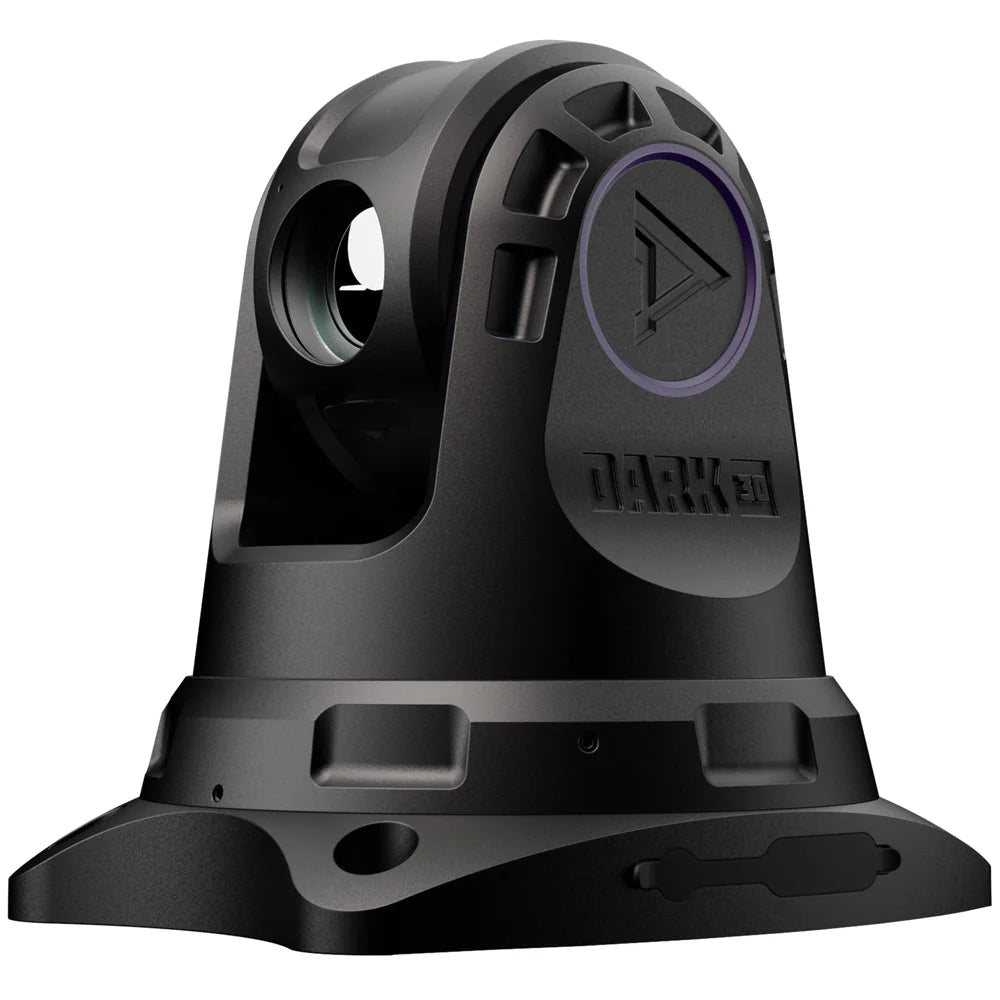

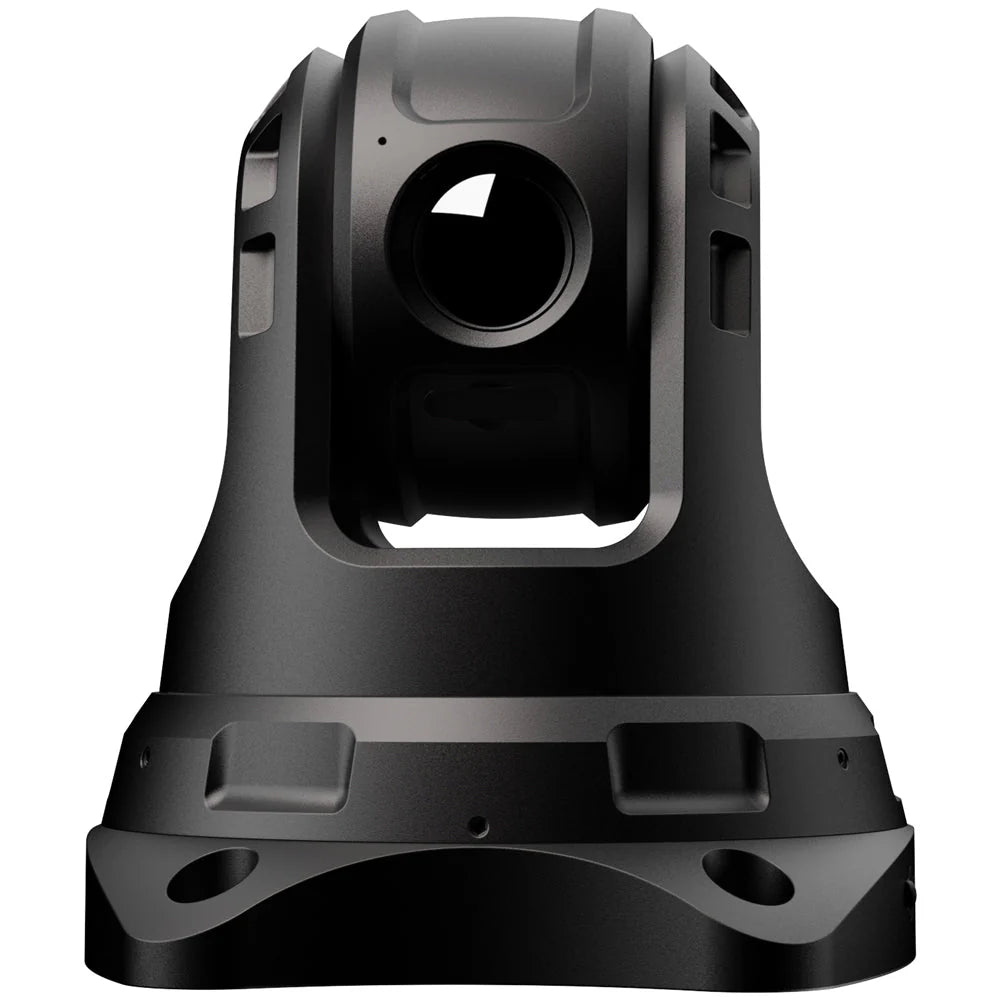

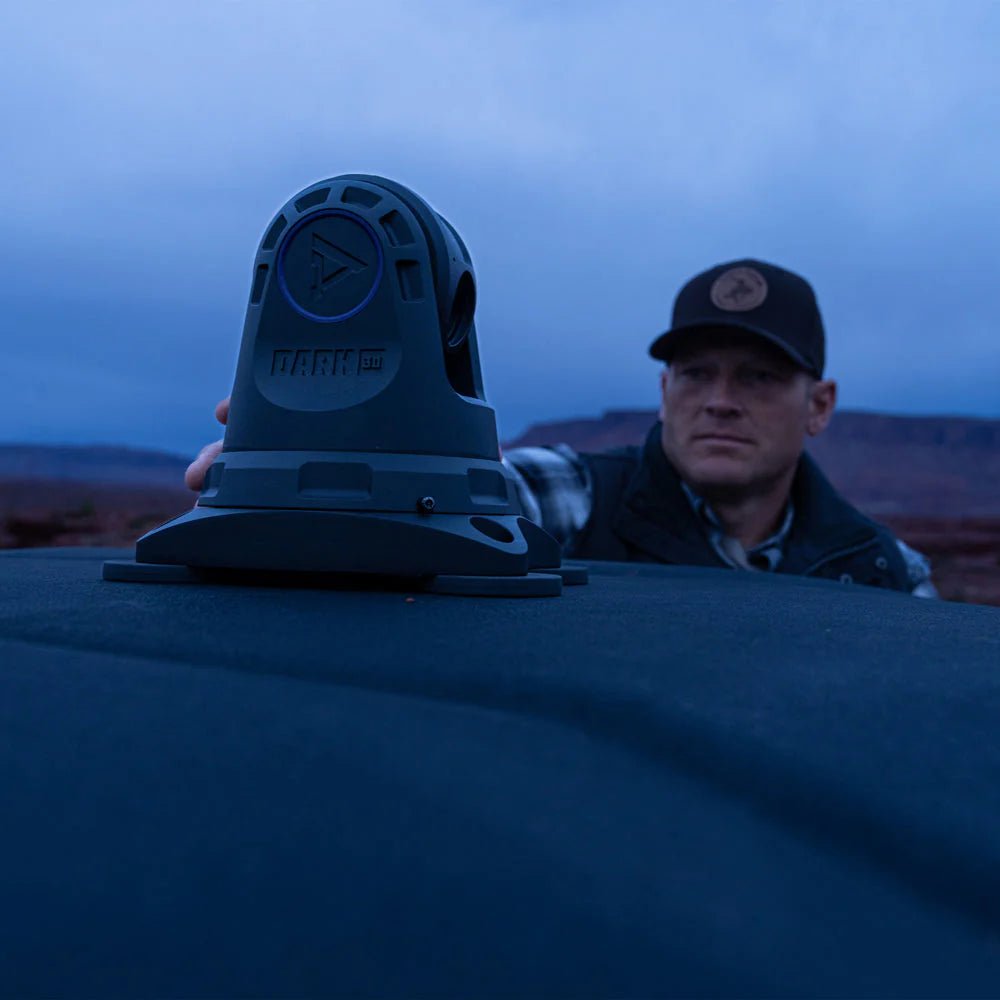

Elevate your night-time hunting with the Dark 30 Defiance 640 PTZ, a state-of-the-art thermal imaging camera delivering unmatched visibility in complete darkness. Its industry-exclusive direct camera-to-screen interface ensures near-real-time, lossless imaging, setting it apart from competitors. With 360° infinite panning, 20° field of view, and pan-tilt-zoom (PTZ) functionality, this camera offers total visual control, whether scanning vast landscapes or tracking elusive targets.
Key Features

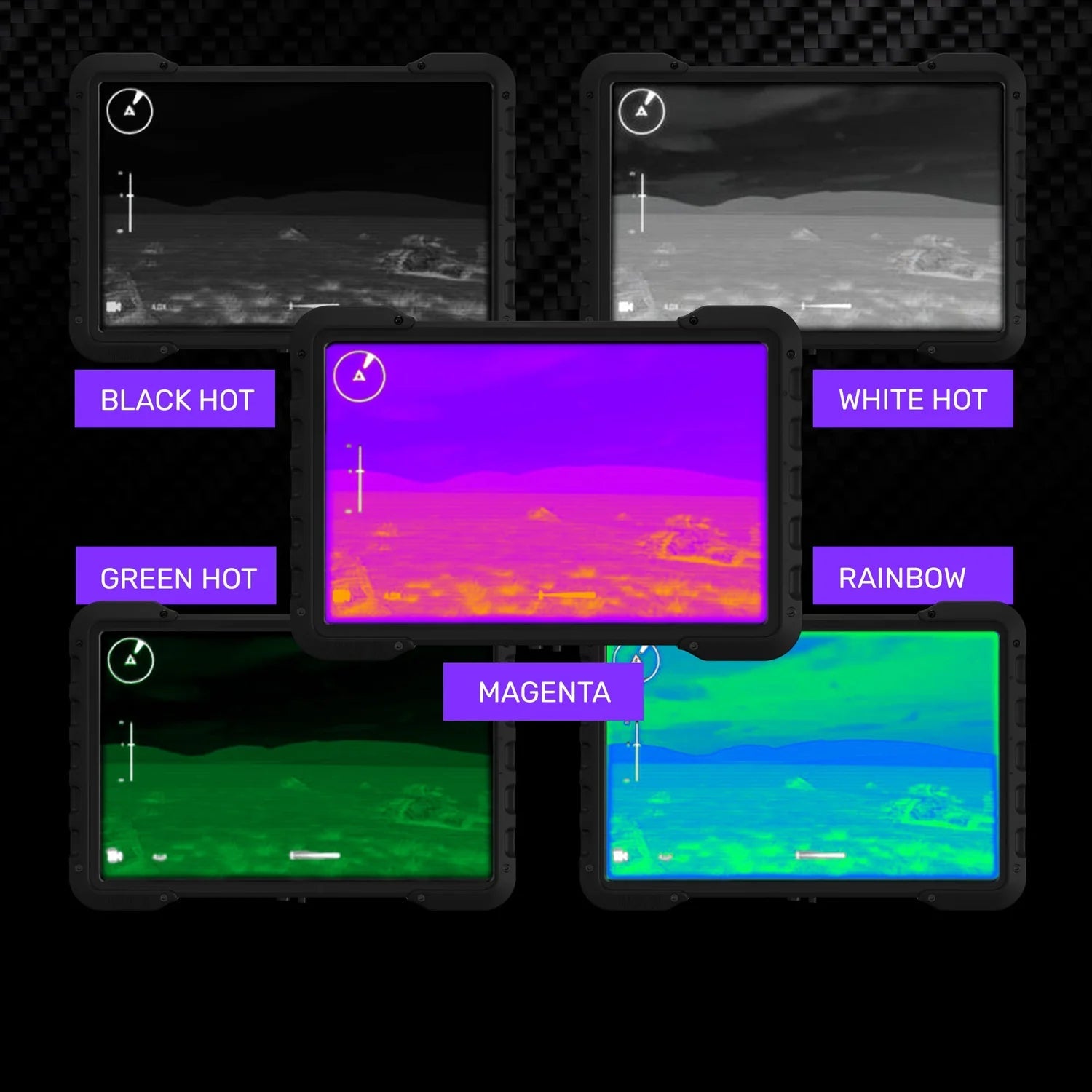

- High-Resolution Thermal Imaging: 640x480 sensor with five switchable palettes (white hot, black hot, rainbow, magenta, green hot) for precise hotspot detection and detailed long-range observation.

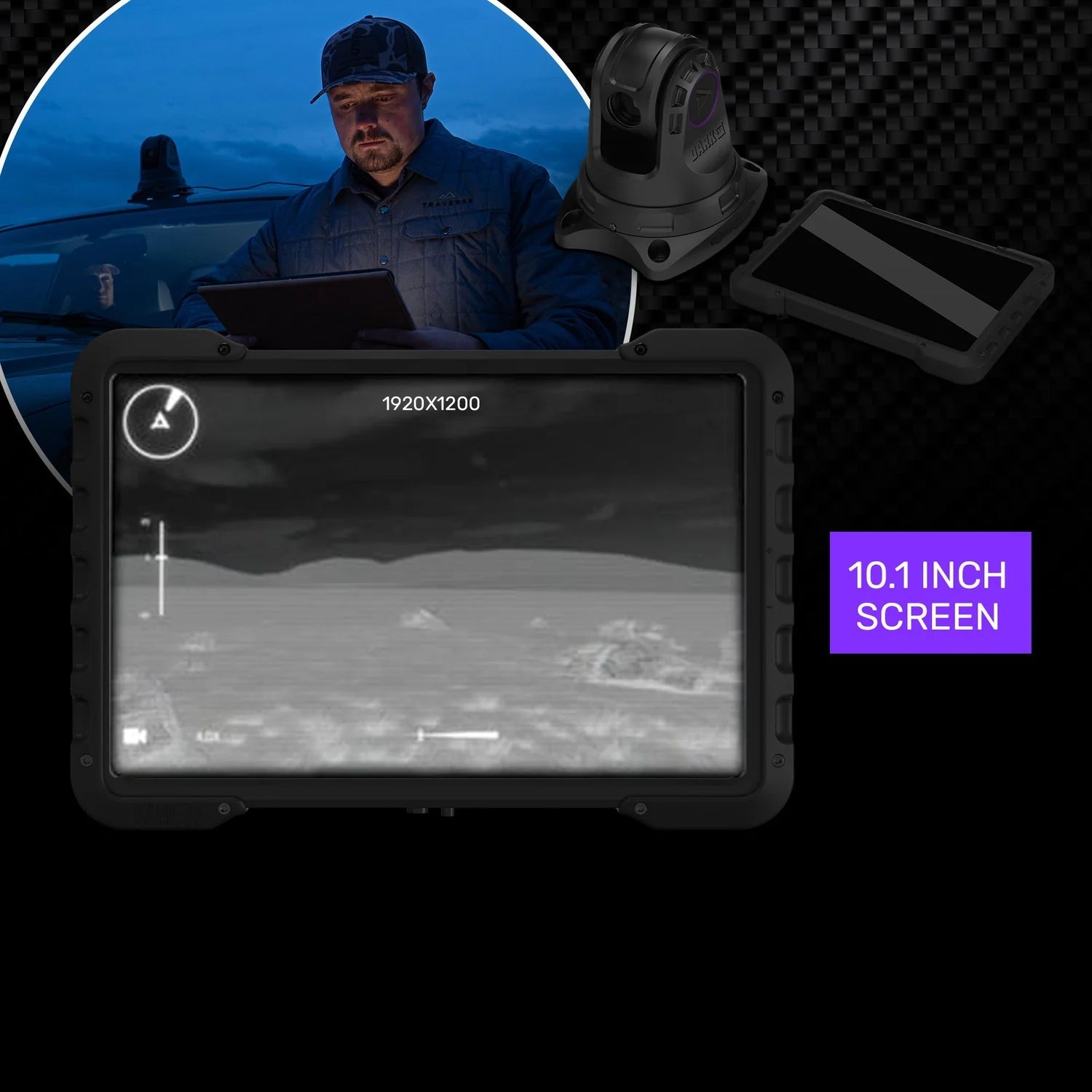

- HD Display: 10.1" LCD screen (1920x1200 resolution) with low-latency HDMI connection for crisp, real-time visuals, enhancing situational awareness and target identification.
- Dark 30 App Control: Control the camera, record footage, or use as a spotter via the iOS/Android Dark 30 app, perfect for elevated spotting or shooting scenarios.

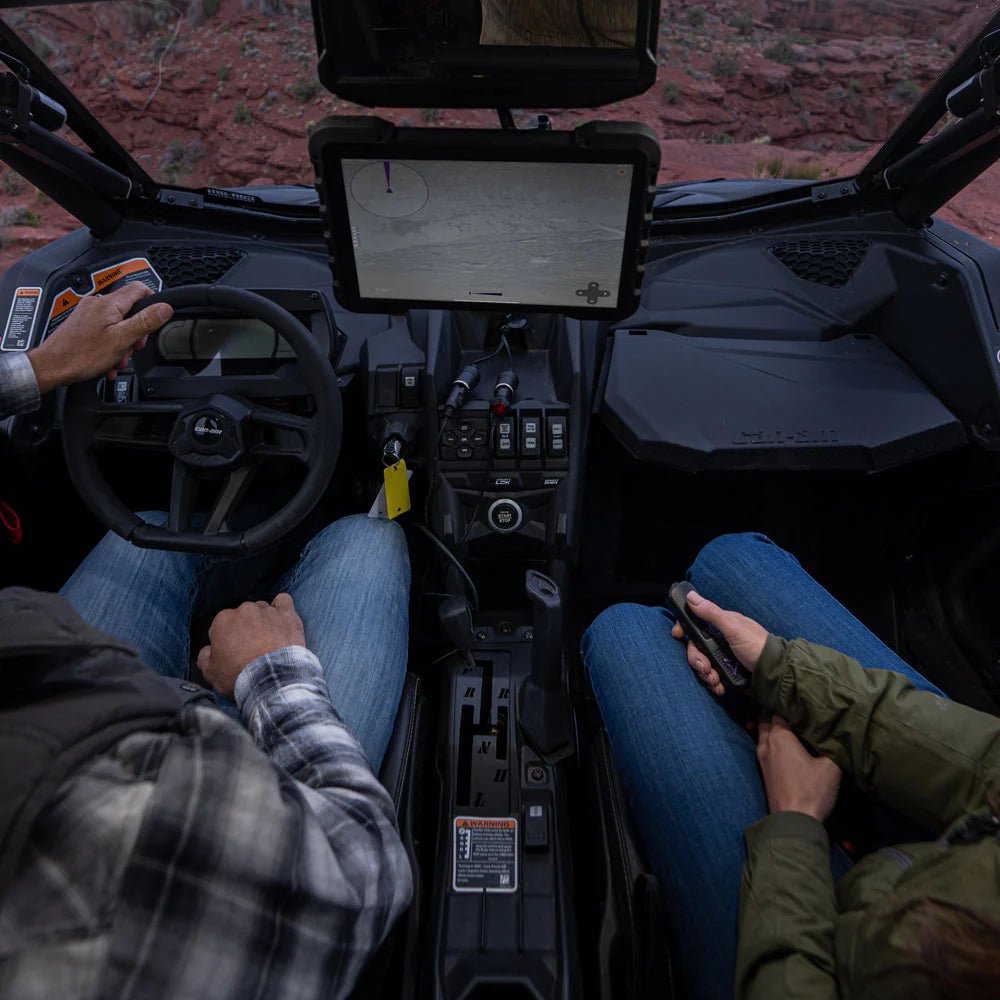

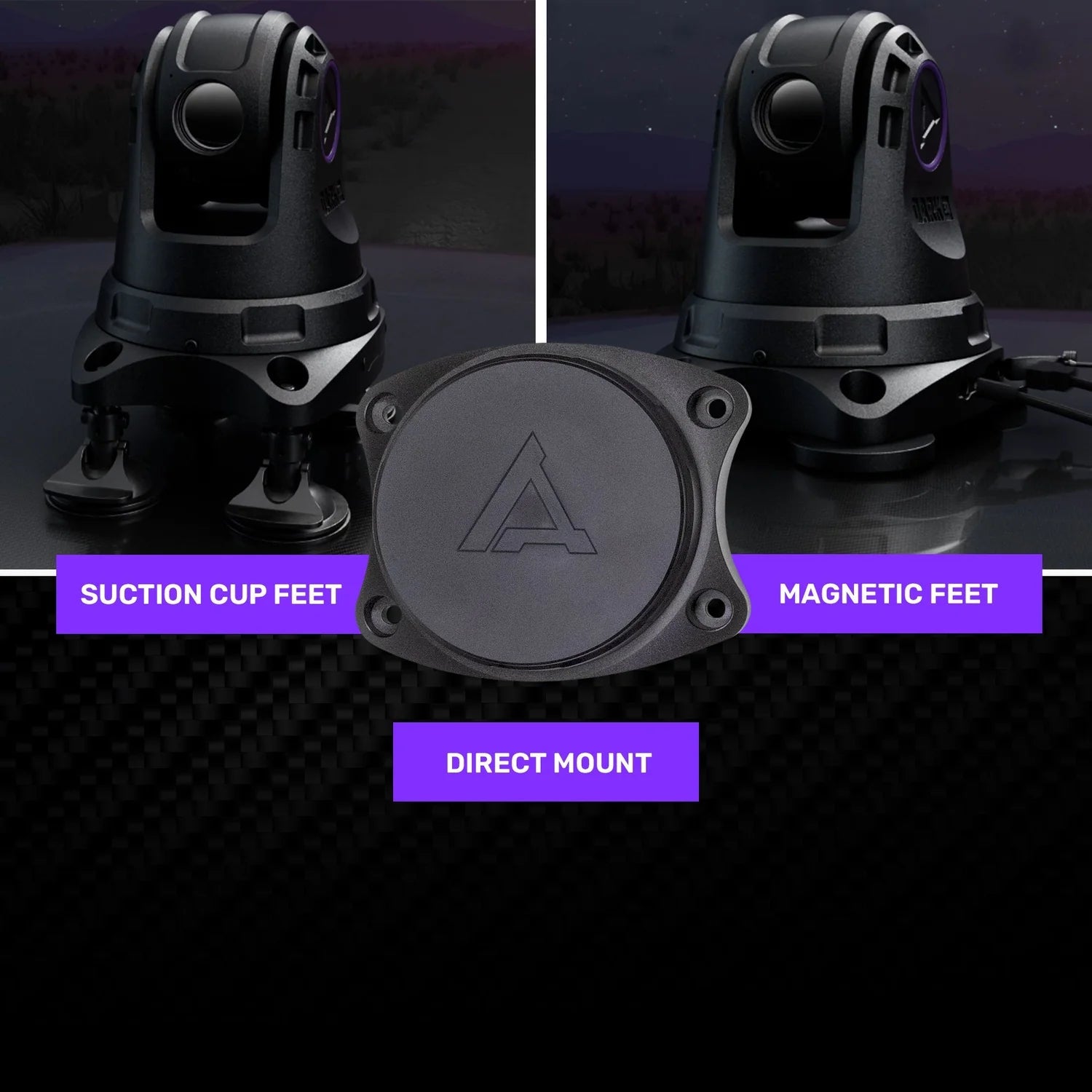

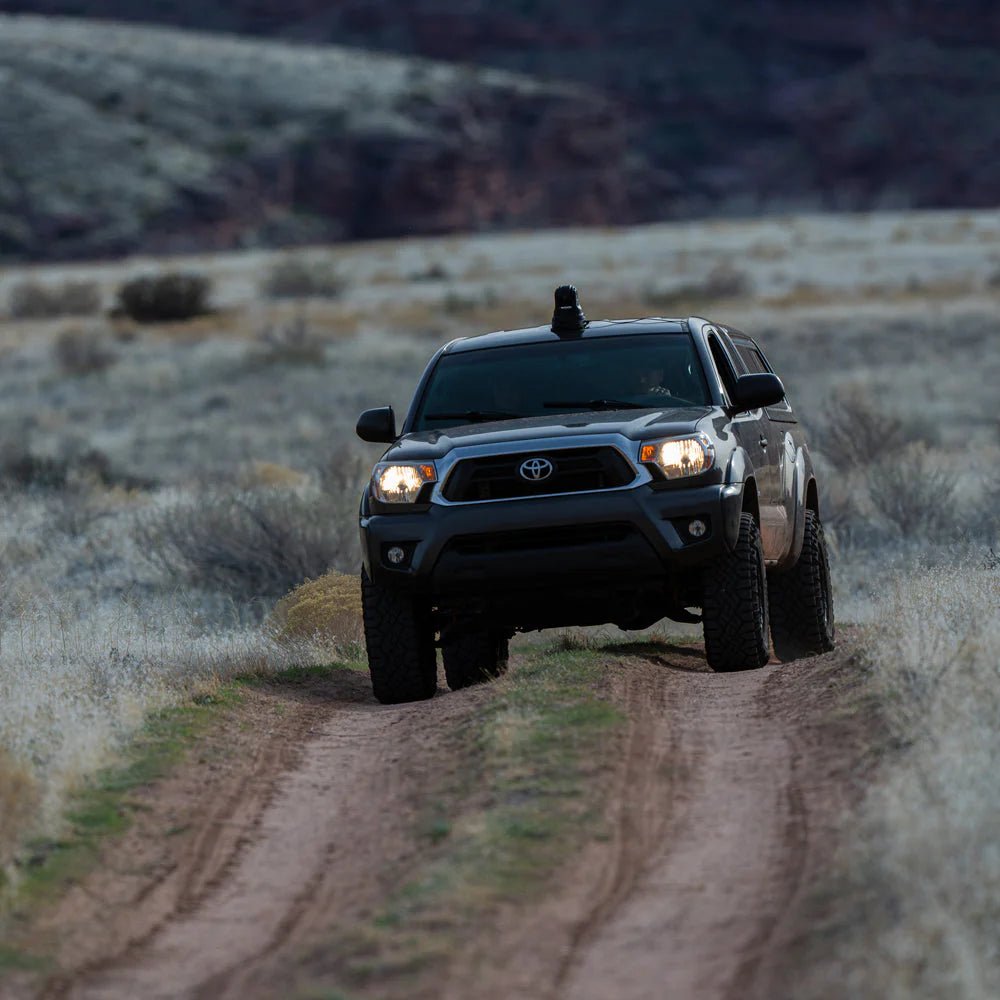

- Modular Mounting Options: Flexible setup with suction cups, 100lb-pull magnets, or permanent bolts for temporary or fixed vehicle mounting, including all necessary hardware.
- Variable Speed Remote Control: Precise pan, tilt, and zoom with smart features like sleep mode and return-to-home function for seamless operation.
- Full Coverage: Infinite 360° panning and 20° field of view eliminate blind spots, ideal for long-range scouting or tracking in rugged terrain.
- Water-Resistant Design: Built to withstand harsh environments, ensuring reliability in the field.

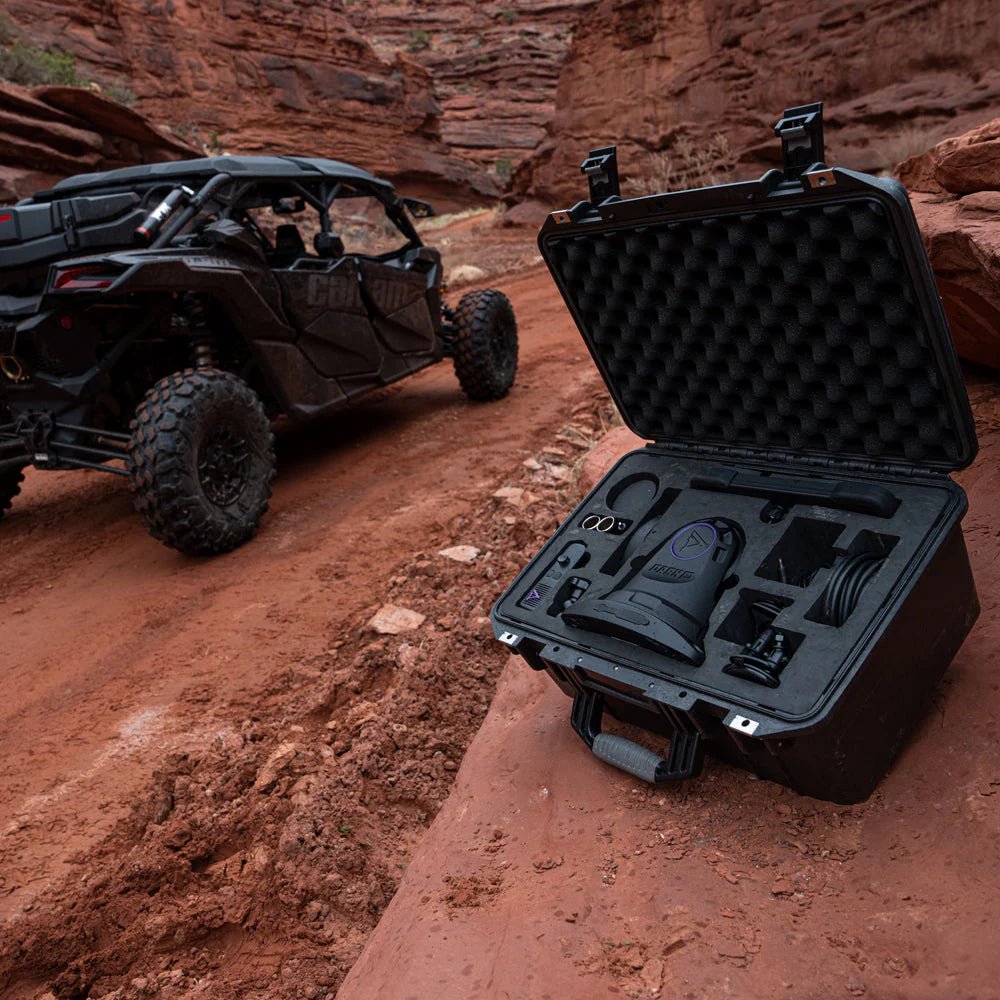

Included Accessories
- 2" riser
- Base kit
- Remote control
- 10.1" screen
5-Year Warranty
The Defiance PTZ is backed by a 5-year warranty covering manufacturing defects and normal use, giving you confidence in your gear.
Why Choose Defiance PTZ?
The Dark 30 Defiance PTZ combines cutting-edge thermal imaging with versatile mounting and intuitive controls, making it an indispensable tool for hunters. Its direct camera-to-screen interface delivers unmatched clarity, while the app-based control and modular mounting offer unmatched flexibility. Easy to set up and built to last, this camera ensures you stay stealthy, precise, and mission-ready.
GENERAL |
|
| Water Resistance | IP66 |
| Pan angle | Continuous 360° |
| Tilt angle | Straight downward to 45 degrees above horizontal |
| Body Material | Aluminum |
| Width | 6.65” / 169 mm |
| Depth | 7.68“ / 195 mm |
| Height | 7.8” / 198 mm |
| Weight | 94.5 oz / 2680 g |
| Operating Temperture Range °F / °C | -4°F to 122°F / -20°C to 50°C |
| Ports | 1 TF card slot, 2 HDMI ports, 2 DC ports |
| Display type | LCD |
| Screen Size | 10.1” |
POWER |
|
| Power Supply | 12V DC |
| Camera Amperage @12V DC | 750mA |
| Display Amperage @ 12V DC | 320mA |
| Adaptor Connection with both Camera and Display | 1200mA |
SENSOR |
|
| Device Technology | Thermal Imaging |
| Sensor resolution, pixels | 640x480 |
| Frame rate | 60 fps |
| Pixel size | 17 micron |
| Spectral range | 8 - 14μm |
| Detector NEDT | <30 mK |
| Color palettes | 5 |
| Detection range yd | 1250 yds |
OPTICS |
|
| Lens material | Germanium |
| F/# NUMBER (lens) | 1 |
| Lens diameter | 32 mm |
| Focal length | 30 mm |
| Digital zoom | 1-8x |
| Magnification | n/a |
| Field of View Horizontal | 20° |
| Field of View Vertical | 15° |
| Field of View Diagonal | 25° |
