DAA Universal Magnet Kit

Double Alpha AcademySKU: 104181

Price:
285 kr

Tax included Shipping calculated at checkout

Stock:
Sold out

Description

The DAA Universal Magnet Kit is compatible with any of the magazine pouches from Double Alpha Academy (with the exception of the Single Stack Racer Pouch; see separate Magnet Kit).

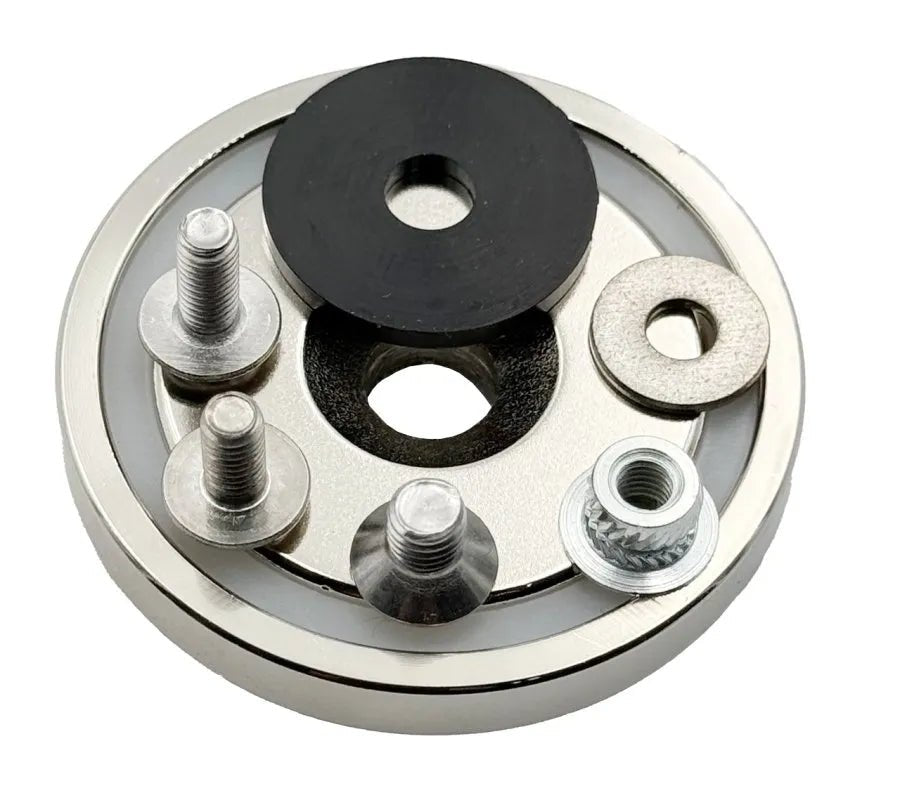

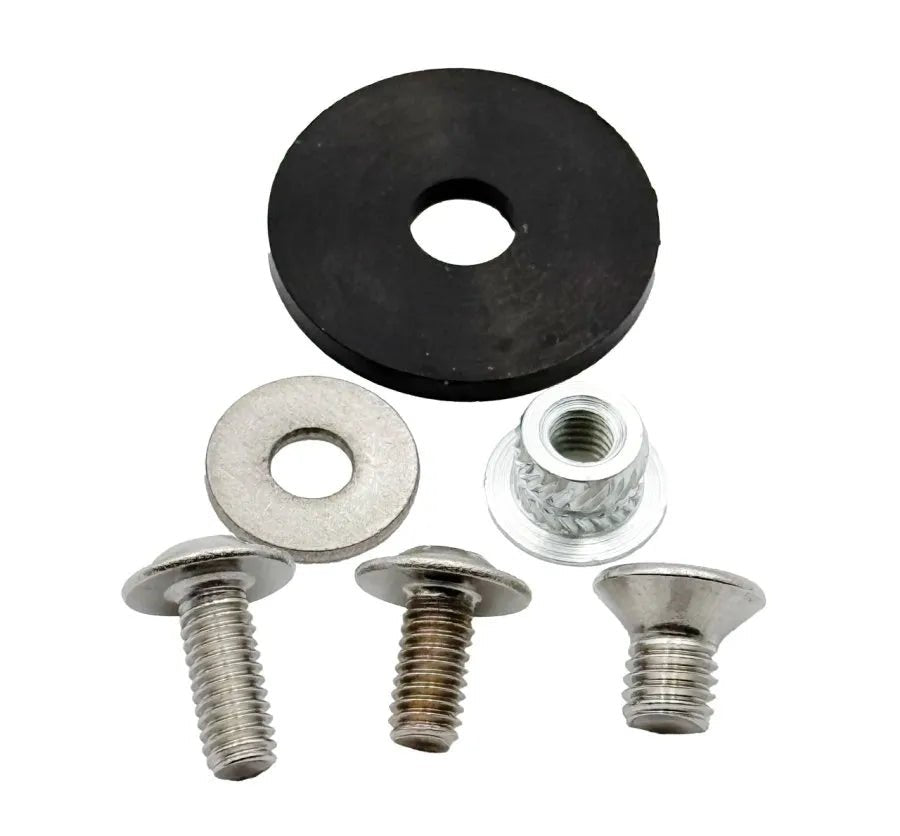

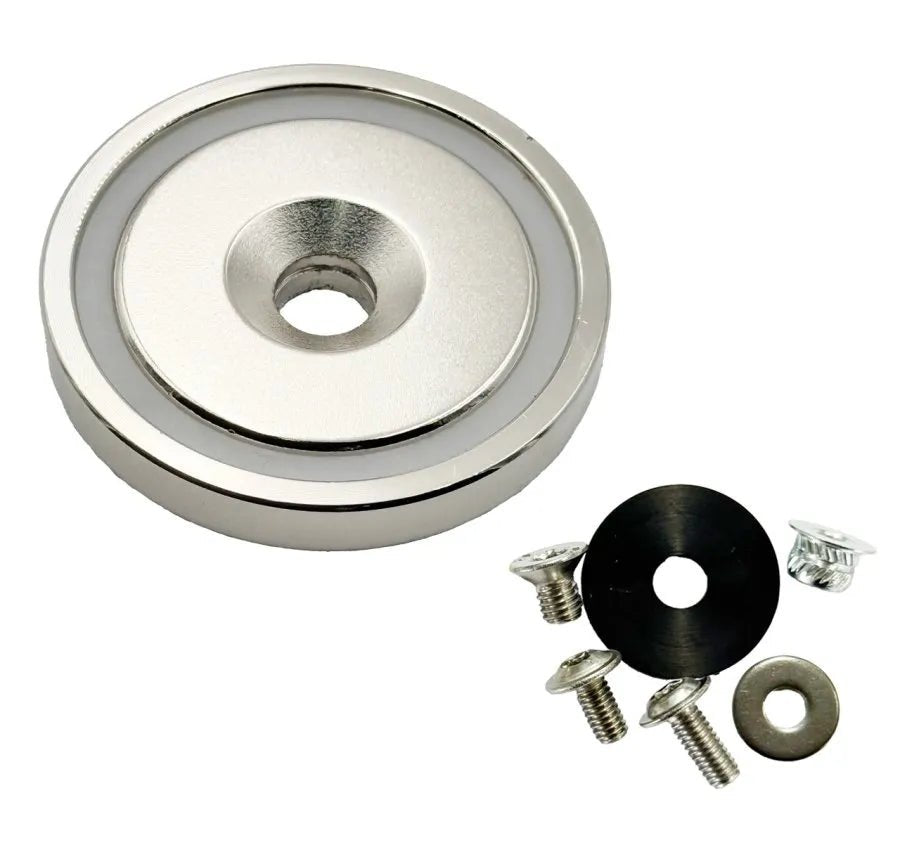

Includes

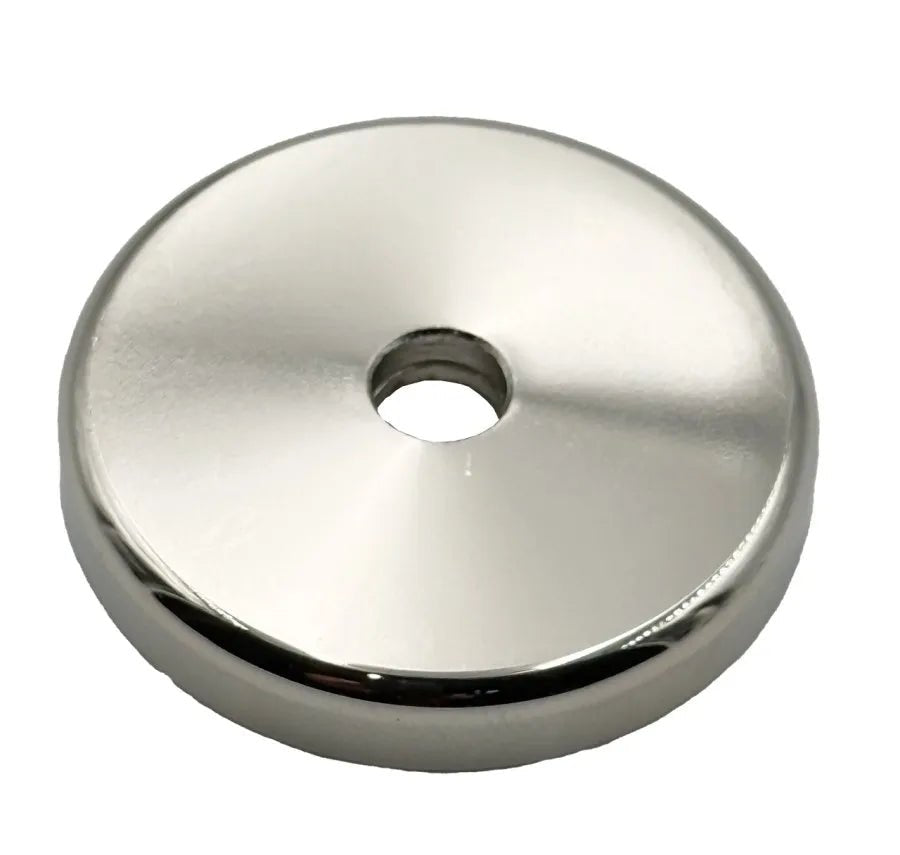

  • 48mm N52 magnet
  • Rubber Washer 22x2mm
  • Steel washer 12x0.8mm
  • M5x8mm counter sunk screw
  • M4x8mm Flat head wide flange screw
  • M4x10mm Flat head wide flange screw

Please note that not all parts are required for every type of mag pouch.

Assembly instructions

DAA X-Ray Aluminum Pouches

  • Place the rubber washer between the pouch body and the magnet.
  • Use the M4 screw to attach the magnet (either 8 or 10mm, whichever fits best)
  • You can apply a drop of Loctite. Do not overtighten.

DAA X-Ray Polymer Pouches and Racer Gen-2 Pouches

  • Place the steel washer between the pouch body and the magnet. This prevents the insert from pulling out.
  • Use the M4 screw to attach the magnet. (either 8 or 10mm, whichever fits best)
  • You can apply a drop of Loctite. Do not overtighten.

DAA XiP and DAA Racer Gen-1 Plastic Pouches

(pouches without a pre-drilled magnet mounting hole or thread)

  • Drill a centered hole 1.4 cm (0.55”) from the bottom edge using a 6.7–6.9 mm (17/64”) bit. (A 6.5 mm (1/4”) bit can also be used, though the fit will be tighter.)
  • Hold the threaded insert inside the pouch, aligned over the drilled hole.
  • Place the magnet directly over the hole.
  • Thread the M4 screw through the magnet into the insert.
  • Tighten carefully—the screw will pull the insert into the plastic until the flange is snug against the inner wall. Do not overtighten. Snug is sufficient.
  • Remove the screw, insert the rubber washer between the pouch and the magnet, then retighten. The washer prevents rotation and reduces the chance of the insert pulling out from overtightening.
  • You can apply a drop of Loctite. Do not overtighten.

DAA Alpha-XI, and older discontinued DAA Alpha-X and DAA Race Master Aluminum Pouches

  • Use the M5x8mm screw to attach the magnet.
  • Place the rubber washer between the pouch body and the magnet.
  • You can apply a drop of Loctite. Do not overtighten.
